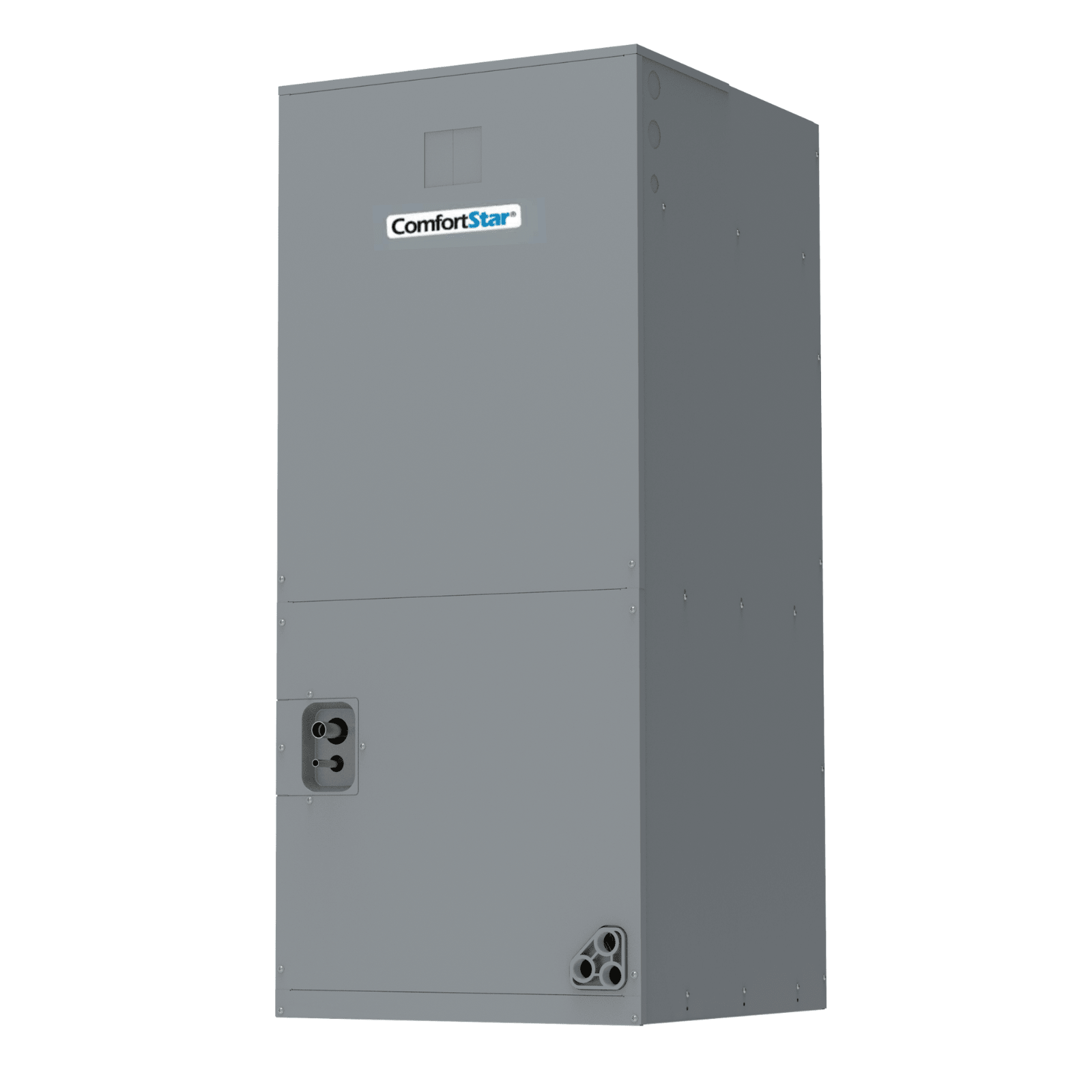

48K AHH-C - AIR HANDLER - 16 SEER2

SKU: AHH48-410-C

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

System Gross Weight: 176/189 (lbs.)

Quantity

Click Here to View Product Catalog

View full details

Refrigerant Type: R410a

Unit Size - Inches (W x D x H): 22"x24-1/2"x53-1/8"

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1520

Tonnage: 4

dB(A) Noise Level (Hi / Mi / Lo): 55

SEER2: 16

EER: 10.8

Heat Capacity (BTU): 46000

Cooling Capacity (BTU): 45000

Placement: Indoor Air Handler Unit

Outdoor Unit Net/Gross Weight (lbs.): 176/189

Features

- R-410A environmentally friendly refrigerant.
- Painted galvanized steel cabinet.
- Various coil guard optional, Basic coil guard is louvered steel, it is acceptable to customize plastic or wires netting.
- 24V voltage control.
- AHRI Certified & ETL Listed.
- Wide operation temperature range：
Cooling range： 64⁰F-115⁰F
Heating range： 5⁰F-109⁰F
- High Efficiency Inverter Compressor & Fan Motor.
- Condenser coils constructed with copper tubing.
- Intelligent defrost programs, unit will choose different defrost program according to real condition.
- Anticorrosion: Golden fin, Intensified moisture proof PCB, Thick sprayed metal plate
& More.
