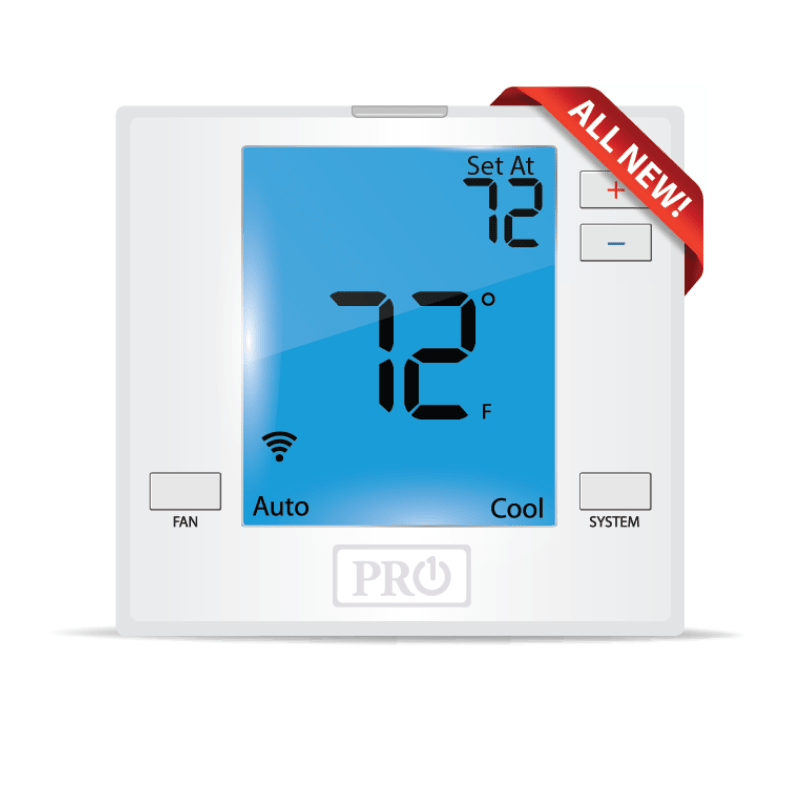

PROGRAMMABLE THROUGH APP - 1H/1C SINGLE STAGE W/ 4" DISPLAY - HARDWIRE ONLY

Single Stage
1 Heat, 1 Cool
Programmable Through App
Hardwire Only

-7 sq. inch display
-Blue backlight
-Glow in the dark light button
-Electric or Gas configurable
-Separate heating and cooling swing (cycle rate) adjustments
-Room temperature calibration adjustments
-5 minute compressor delay protection (selectable on or off)
-Simple private label badge system
-Easy wire color coded terminal blocks
-Universal sub-base
-Mounts on wall or junction box
-24v power
-5 year warranty

The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)
The control temperature range
44˚F to 90˚F (7˚C to 32˚C)
Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined
Display accuracy
± 1 °F
Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F
Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Hardwire Only
Operating ambient
32° to +105° (O° to + 41°C)
Operating humidity
90% non-condensing maximum
Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D
