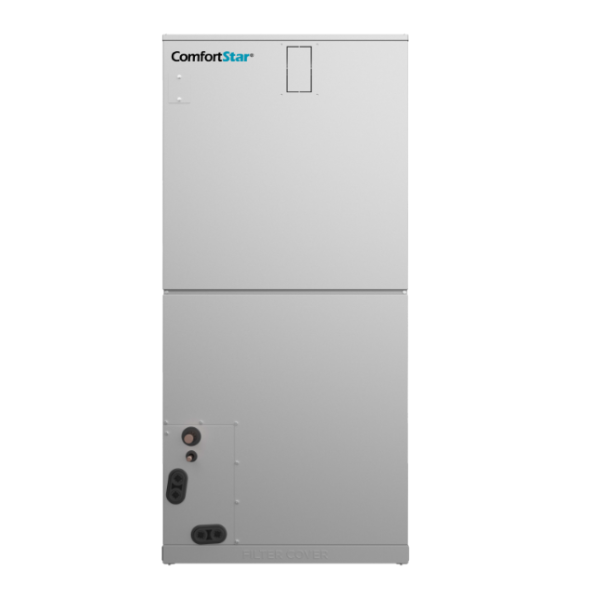

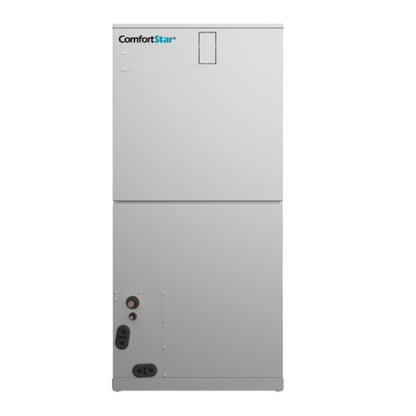

36K AHU-SG2 AIR HANDLER - MULTIPOSITION - 16.9 SEER2

SKU: AHU36-SG2

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

System Gross Weight: 155.64 (lbs.)

Quantity

View full details

Refrigerant Type: R410a

Unit Size - Inches (W x D x H): 21.02x21.02x49.02

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1082.35/970.59/864.71

Tonnage: 3.00

dB(A) Noise Level (Hi / Mi / Lo): 46.8/44/41.3

SEER2: 16.9

EER: 10.1

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 36000

Cooling Capacity (BTU): 36000

Placement: Indoor Air Handler Unit

Indoor Unit Net/Gross Weight (lbs.): 129.19/155.64

Features

✔ Multi Position Airflow - (capable of upflow, downflow, horizontal left, or horizontal right configurations. )
✔ Field installed heater Kits from 5 to 25 kw
✔ Aluminum tubes and fins.
✔ Quite due to inverter and DC motor
✔ EEV Precise control.
✔ Consistent Room Temperature.
✔ Automatic Airflow Adjustment.
✔ Easy Fault Code Checking.
✔ Easy Maintenance.
✔ Nitrogen Charge and Leakage Check Valve.
✔ Compatible and keep your existing line, wire and thermostat.
✔ Compatible with Comfortstar wireless remote controller, programmable wired controller, central controller, Wi-Fi controller, Remote On/Off.
