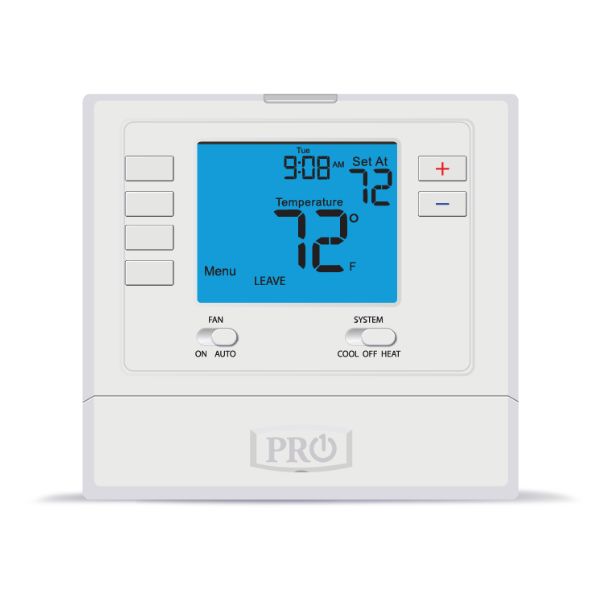

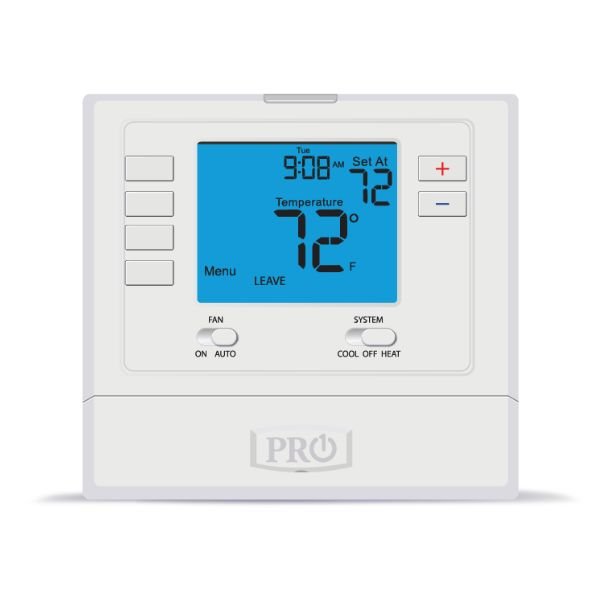

Multi-Stage Gas
2 Heat, 2 Cool
Battery or Hardwire
7 Day or 5/1/1 programmable
Easy menu driven programming
Intuitive wake, leave, return, sleep programming icons
4 sq. inch display
Blue back-light
Glow in the dark light button
Easy access battery compartment
Electric or Gas configurable
Separate B & O terminals
Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
Filter change indicator (select-able on or off)
Room temperature calibration adjustments
5 minute compressor delay protection (select-able on or off)
Simple private label badge system
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall or junction box
Battery or 24V power
5 year warranty
The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)
The control temperature range
44˚F to 90˚F (7˚C to 32˚C)
Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined
Display accuracy
± 1 °F
Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F
Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline batteries
Operating ambient
32° to +105° (0° to + 41°C)
Operating humidity
90% non-condensing maximum
Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D
