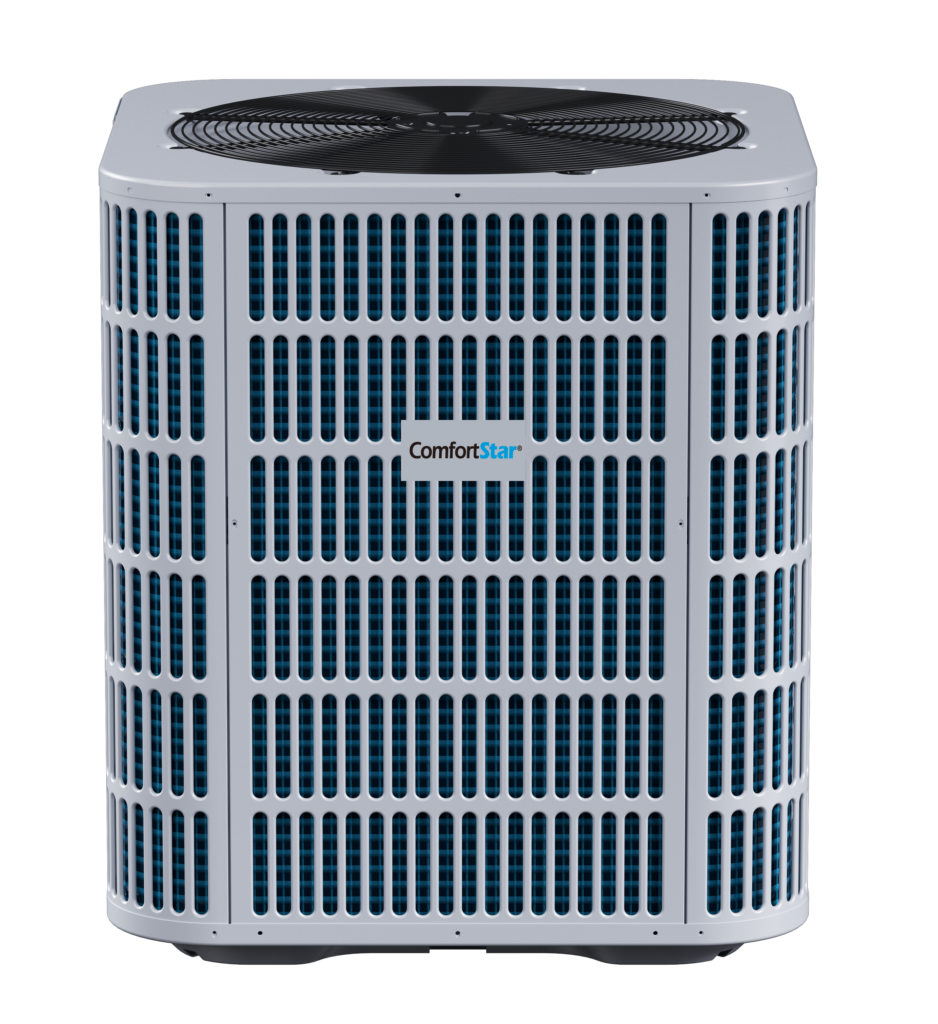

24K BAR7 SERIES - COOLING ONLY R454B CONDENSING UNIT - UP TO 15.2 SEER2

24K BAR7 SERIES - COOLING ONLY R454B CONDENSING UNIT - UP TO 15.2 SEER2

SKU: BAR7-24-15

PRODUCT TYPE: Condensing Units

      Combination Table
      View full details
      Refrigerant Type: R454B
      Unit Size - Inches (W x D x H): 28×28×24-15/16
      Voltage: 208-230V
      Air Flow - CFM (Hi / Mi / Lo): 4500
      Tonnage: 2
      dB(A) Noise Level (Hi / Mi / Lo): 70
      SEER2: Up to 15.2
      EER: Up to 12
      Operating Mode: Cooling Only
      Heat Capacity (BTU): Cooling Only
      Cooling Capacity (BTU): 23800
      Placement: Outdoor Condensing Unit
      Outdoor Unit Net/Gross Weight (lbs.): 132/139

      Features

      - Environmentally friendly R454B refrigerant with a low Global Warming Potential value.
      - Compressor designed for energy efficiency.
      - Features thermal overload protection.
      - Service valves with sweat connections and convenient gauge ports.
      - Includes factory-installed high-pressure switch.
      - AHRI certified and ETL listed.
      - Includes a filter drier.
      - The compact design enables easy installation, clearance, durability, and maneuverability.
      - Features a powder-painted galvanized steel cabinet chassis.
      - Protective steel louvered coil guard and a steel wire axial fan guard.
      - An ECM fan motor paired with a uniquely designed fan blade ensures smooth airflow and quieter operation.
