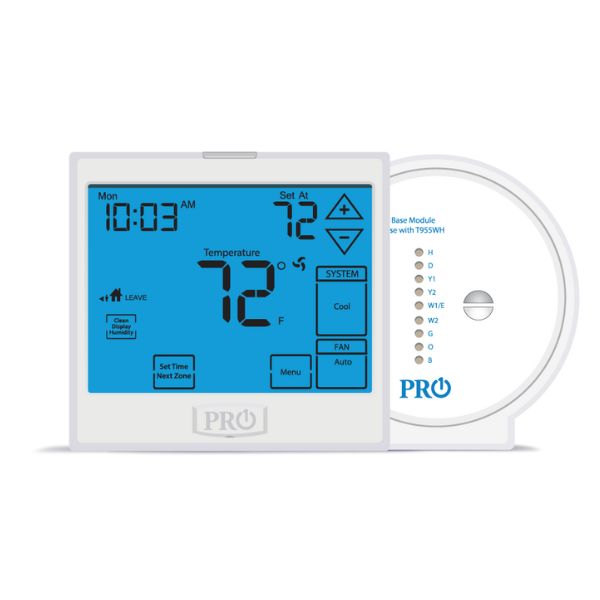

WIRELESS UNIVERSAL - UP TO 2 HEAT, 2 COOL CONVENTIONAL - UP TO 3 HEAT, 2 COOL HEAT PUMP BATTERY OR HARDWIRE - 7 DAY, 5/1/1 OR NON-PROGRAMMABLE

Humidity Control
Touchscreen
Set dual fuel balance points
Connects up to 4 indoor remotes (RZ251W)
Connects to outdoor remote (RZ250W)
7 Day, 5/1/1, or Non-Programmable
Auto Changeover
Easy menu driven programming
Intuitive wake, leave, return, sleep programming
13 sq. inch display
Blue back-light
Glow in the dark light button
Programmable fan
Glow in the dark light button
Electric or gas configurable
Separate heating and cooling swing (cycle rate) adjustments
Keypad lockout
Heating and cooling set-point limits
5 minute compressor delay protection (selectable on or off)
Filter change indicator (selectable on or off)
Simple private label badge program
Easy wire color coded terminal blocks
Universal sub-base
Mounts on wall of junction box
Battery or 24V power
5 year warranty

The display range of temperature
41˚F to 95˚F (5˚C to 35˚C)

The control temperature range
44˚F to 90˚F (7˚C to 32˚C)

Load rating
1 amp per terminal, 1.5 amp maximum all terminals combined

Display accuracy
± 1 °F

Swing (cycle rate or differential)
Heating is adjustable from 0.2°F to 2.0°F - Cooling is adjustable from 0.2°F to 2.0°F

Power source
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
Battery power from 2 AA Alkaline batteries

Operating ambient
32° to +105° (0° to + 41°C)

Operating humidity
90% non-condensing maximum

Dimensions of thermostat
4.7"W x 4.4"H x 1.1"D
