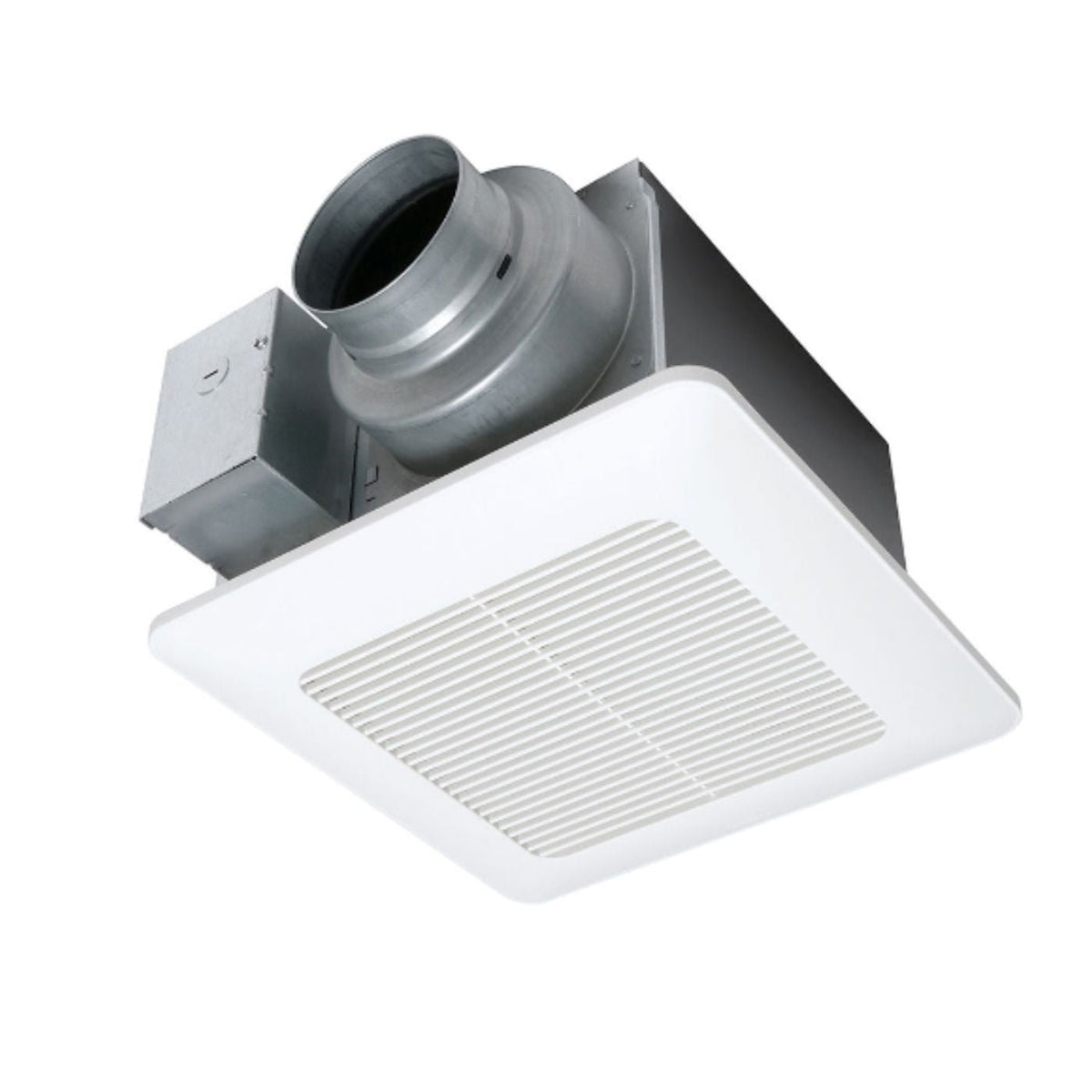

WhisperCeiling® DC™ Precision Spot Ventilation Fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
- Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 CFM models)
- Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
- Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
- Elegant grille design compliments the aesthetics of any bathroom
Advanced Features Single Speed
Air Volume (CFM) 110, 111, 80, 83, 50, 53
Blower Wheel Type Sirocco
California Title 24 Compliant Yes
Current (Amps) 0.18, 0.26, 0.11, 0.18, 0.07, 0.13
Duct Diameter 4" or 6"
Energy Efficiency (CFM/Watt) 10.6, 6.9, 13.6, 7.7, 12.5, 7.4
ENERGY STAR® Certified Yes
Grille Size (in sq.) 13"
Gross Weight (lbs) 11.0
MAX. Current (Amps) 0.27
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Noise (Sones) <0.3, 0.9, <0.3, 0.6, <0.3, 0.4
Power Consumption (Watts) 10.6, 16.4, 5.9, 10.8, 4.0, 7.2
Power Rating (V/Hz) 120/60
Product Family Name WhisperCeiling DC
Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
Thermal Fuse Protection Yes
Type of Motor Bearing Ball
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes
