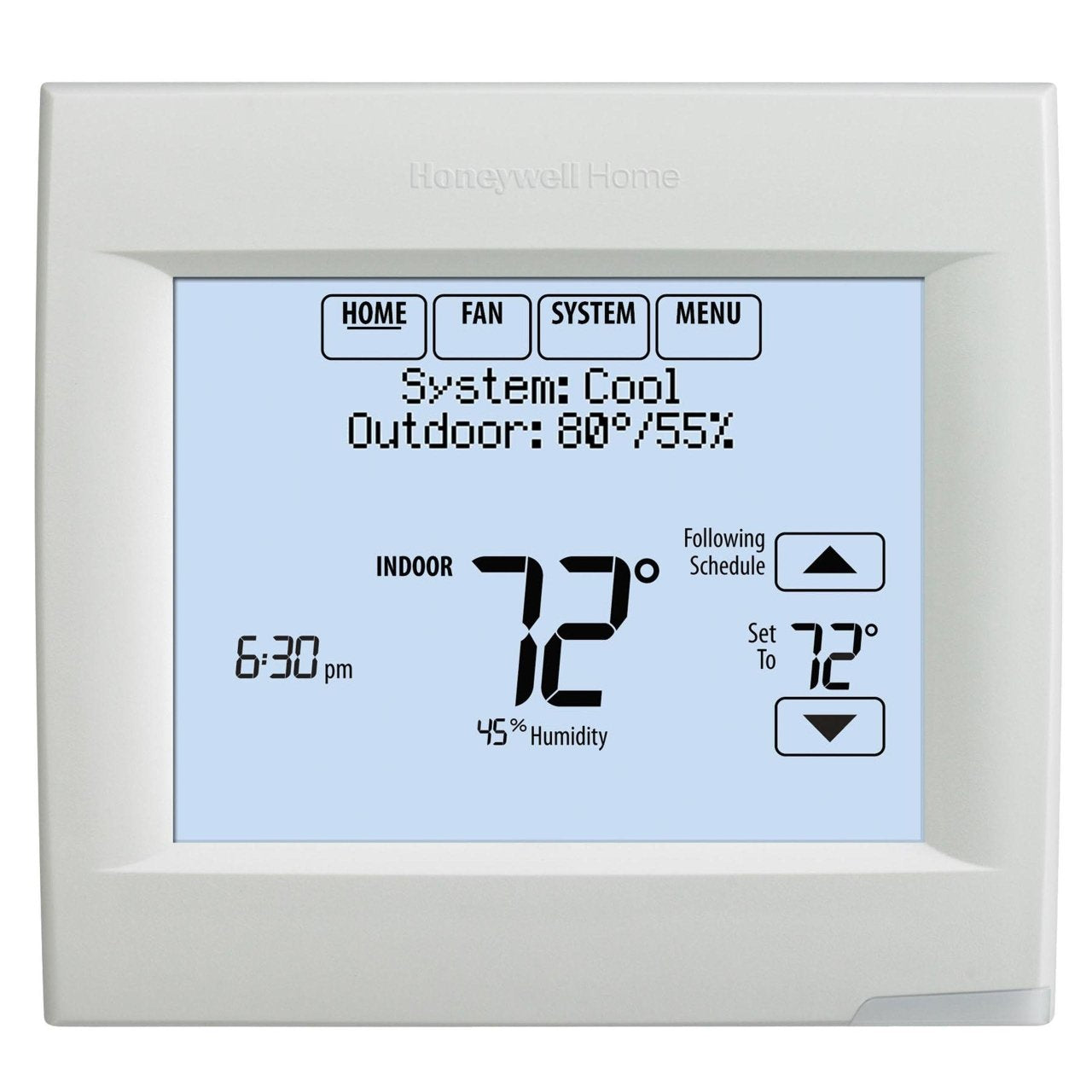

VisionPRO® 8000 with RedLINK™ is a 7 day programmable touchscreen thermostat that is selectable for residential or light commercial use. The thermostat can be wired directly to the equipment, used with the THM5421R1021 Equipment Interface Module or used with the THM4000R1000 TrueZONE Wireless Adapter. Works with the RedLINK™ accessories including the RedLINK™ Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote and Wireless Vent and Filter Boost Remote.
Application1 Heat/1 Cool Conventional Systems and Heat Pumps
Dimensions (in.)4 5/8 in. High, 4 15/16 in. Wide, 1 1/8 in. Deep
Dimensions (mm)118 mm. High, 126 mm. Wide, 29 mm. Deep
Includes VisionPRO® 8000 thermostat
Used With Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK™ accessories
Electrical Ratings 18 to 30 Vac or 750 mV
Frequency 50 Hz; 60 Hz
Stages Up to 1 Heat / 1 Cool Heat Pump or Up to 1 Heat / 1 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module
Electrical Connections Screw terminals
Operating Humidity Range (% RH)5 to 90% RH, non-condensing
Supply Voltage 18 to 30 Vac or 750 mV
Switch Positions (System) HEAT-OFF-COOL-AUTO
Switch Positions (Fan) AUTO-ON-CIRC-FOLLOW SCHEDULE
Operating Temperature Range (F)32 F to 120 F
Operating Temperature Range (C)0 C to 48.9 C
Power Method Battery or Hardwired
Color Arctic White
Programmability 7 Day Program or Non-Programmable
Terminal Designations R, RC, C, W-O/B, Y, G, K, S1 S1
Display Size 10 sq in.
Changeover Auto or Manual
Setting Temperature Range (F) Heat: 40 F to 90 F; Cool 50 F to 99F
Setting Temperature Range (C)Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
Features:
Now works in virtually any residential or light commercial setting
Three flexible ways to install, which helps you solve a variety of wiring issues
- Wired directly to the equipment
- 2-wire or wireless with an Equipment Interface Module (EIM)
- 2-wire or wireless with TrueZONE
Plain language, on-screen setup helps reduce install errors and eliminates the need for a manual
Allows installers to copy the Installer Setup from one thermostat to another with a microSD card
On-screen dealer information displays with customizable alerts, encouraging repeat business
RedLINK Internet Gateway with Total Connect Comfort Services Allow users to remotely monitor and control their heating and cooling systems anytime, anywhere. Free apps are available for both Apple and Android devices.
