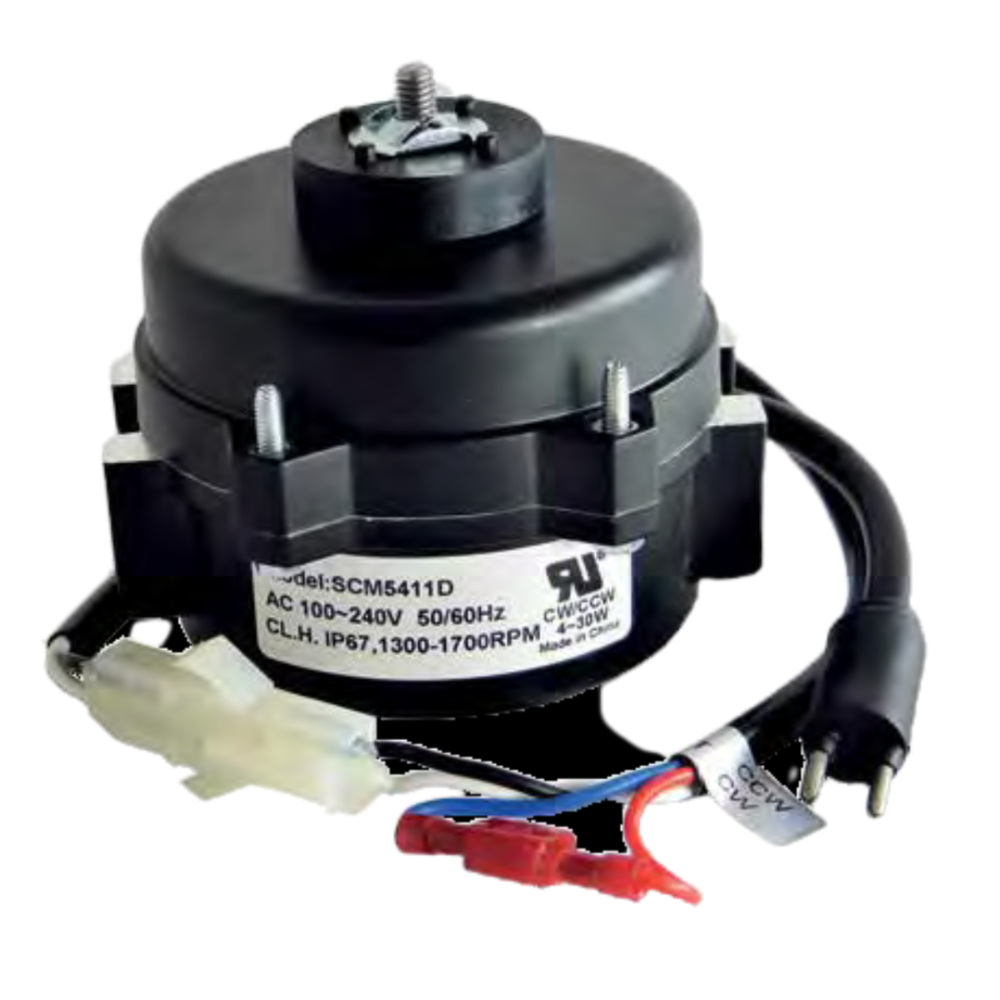

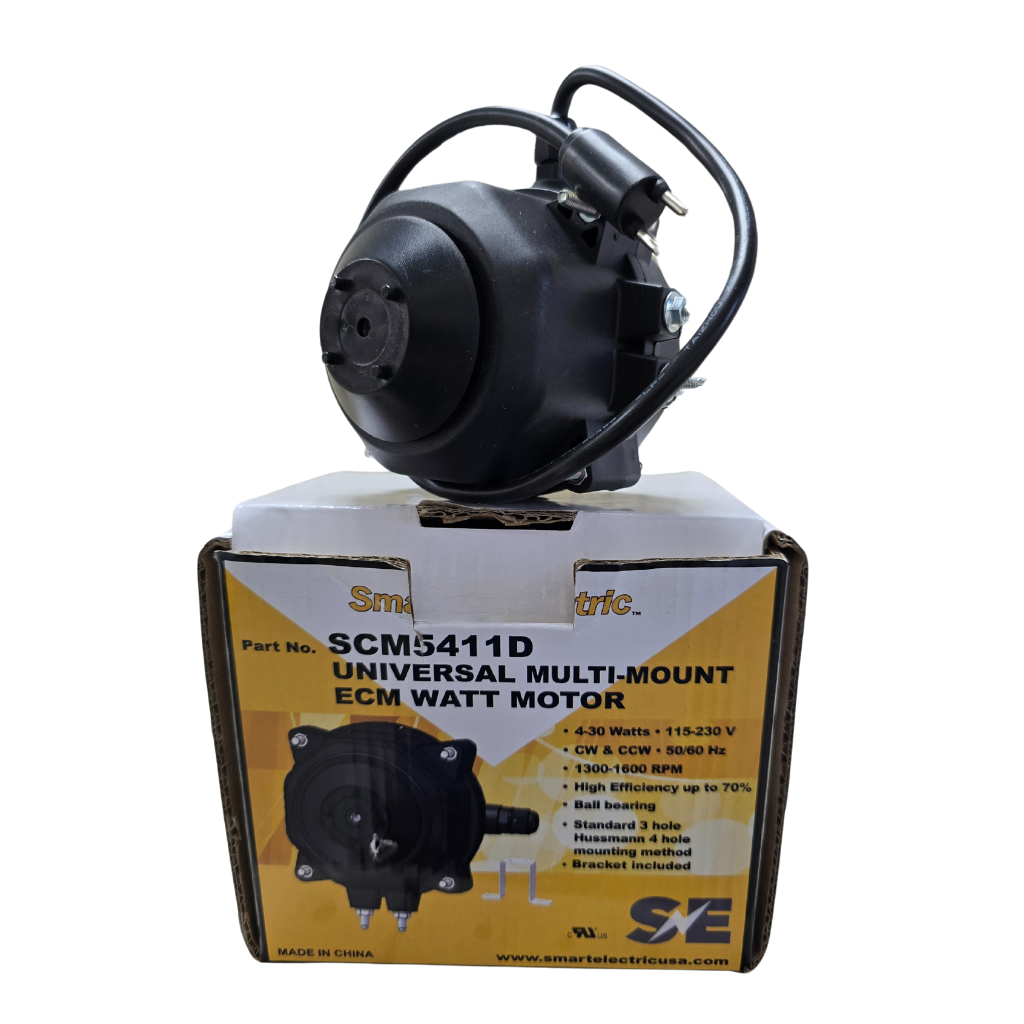

UNIVERSAL ECM WATT MOTOR - 115/230V, CW/CCW, 4 TO 30 WATTS, 1300-1600 RPM

REFRIGERATION MOTOR UNIVERSAL ECM
WATT MOTOR REFRIGERATION EVAPORATOR
AND CONDENSING MOTOR
115/230V • CW/CCW
MULTI MOUNT
OPERATING TEMPERATURE
-20°C-60°C/-4°F-104°F
Cancer and Reproductive Harm www.P65Warnings.ca.gov
FEATURES:
• IP67: Capable of being submerged in water
up to 30 minutes.
• Suitable for use in Evaporator and
Condenser applications.
• High Efficiency up to 70%

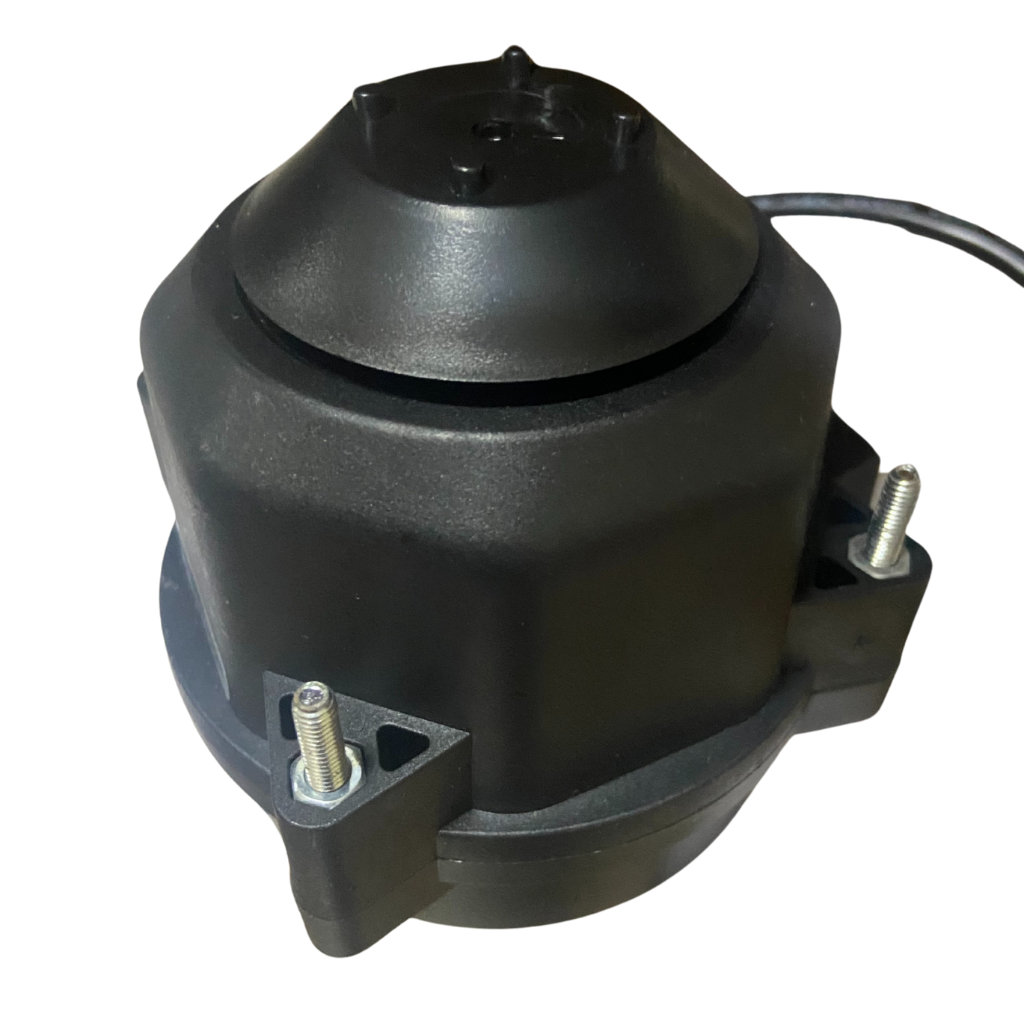

• Universal Mounting
• Standard 3 hole style/Hussman
4 hole on back of motor
• Dual Voltage: 115V/208-230V
• No connection change required
• Reversible rotation CCW & CW
with easy configuration
• Thermally protected
• Ball Bearing system
• Aluminum frame
• Standard shaft size 1/4-20 thread
• Operating temp range -40°F - 158°F (-40°C - 70°C)
• Complies with UL standards: UL1004-1, UL1004-2
• 115/230V
