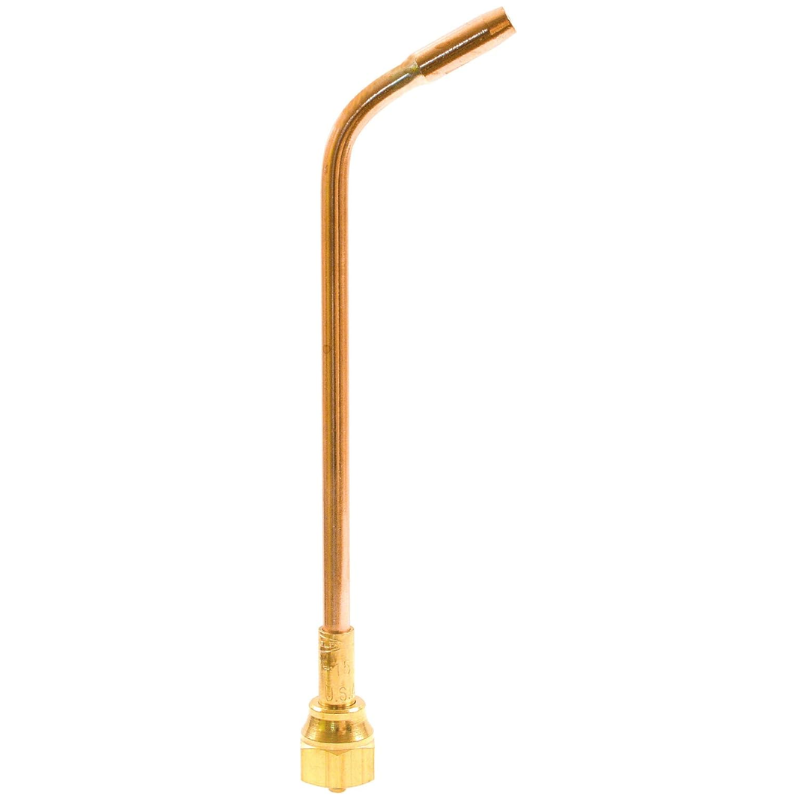

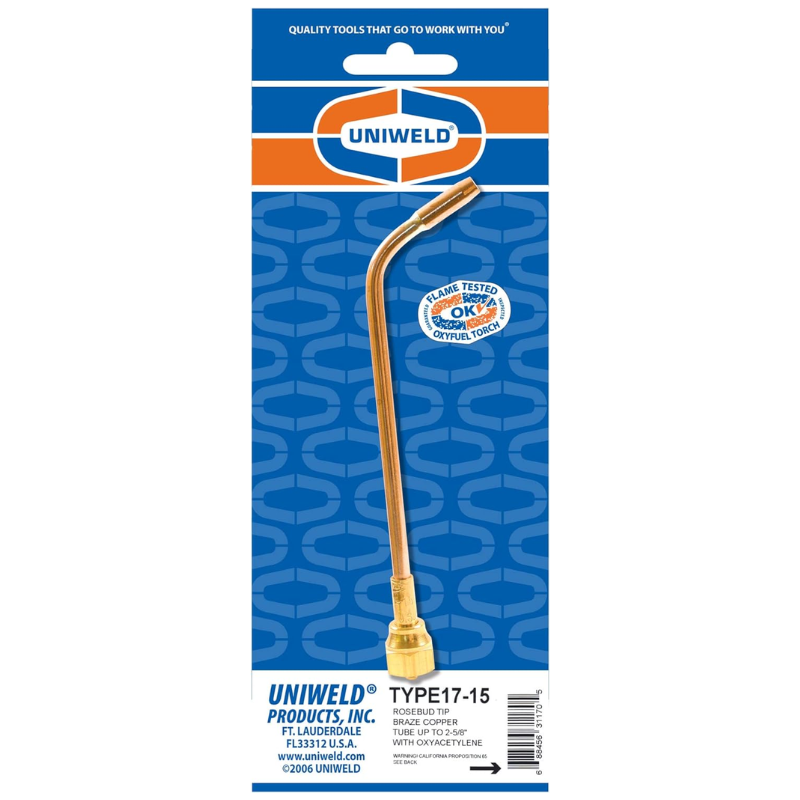

TYPE17-15 ROSEBUD BRAZING & HEATING TIP #15

Uniweld Type17-15 rosebud heating tip is capable of brazing 1/8" to 2-5/8" of copper. Tip elbow is copper, mixer and nut are brass. Overall length is 7". Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.

-Proudly Made in the USA and 100% Flame Tested
-Use with acetylene and oxygen to achieve temperatures up to 5600 degrees Fahrenheit
-Rosebud tips are your best choice for brazing, pre-heating, straightening, annealing, bending, forging, etc.
-Overall length is 7 inches and is ideal for HVAC/R brazing up to 2-5/8 inch copper tubing in tight work space
-Type17 Tips fit Uniweld Part No. 71 and Part No. WH550 Welding Handles

Specifications
Part# Type17-15
Overall Length: 7″
Acetylene SCFH: 15-30
Oxygen PSIG: 10-20
Acetylene PSIG: 8-12
Brazing Copper Tubing Guide: 1/8″ to 2-5/8″
