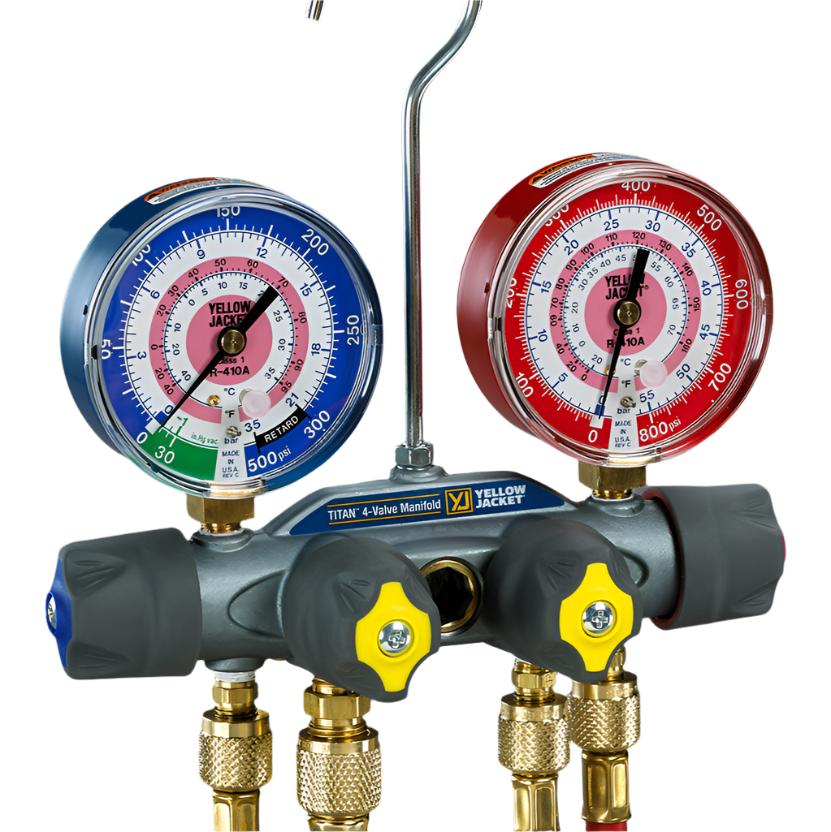

Yellow Jacket 49975 4-Valve Titan A2L Refrigerant Manifold for R32, R454B, and R410A with 1/4" Ball Valve Hoses and 3/8" Charging Hose
Forged aluminum alloy body provides increased strength and reliability. Designed for A/C, Refrigeration and Automotive Technicians
The Yellow Jacket TITAN Test and Charging Manifold is the first forged aluminum manifold in the industry. The special aluminum alloy construction of the manifold body makes it lightweight for handling ease with the durability and reliability required for repeated, rugged use.
Key Features and Benefits
Large, easy-to-read 3-1/8” (80 mm) steel case red and blue, 1% accuracy (Class 1) gauges
Front access for easy field recalibration
Fourth hose to enable connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
3/8" Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4")
Double O-ring piston for reliability and long service life
Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
Contoured easy-grip handles for positive control and color-coded for ready identification
Sight glass to easily view refrigerant movement and condition during charging and recovery
Optional protective gauge boots available
Heavy duty hook won't pull out
Hoses included
Manifold and hose holder fittings 1/4"-3/8"-1/4"-1/4" unless otherwise identified
Made in the USA
