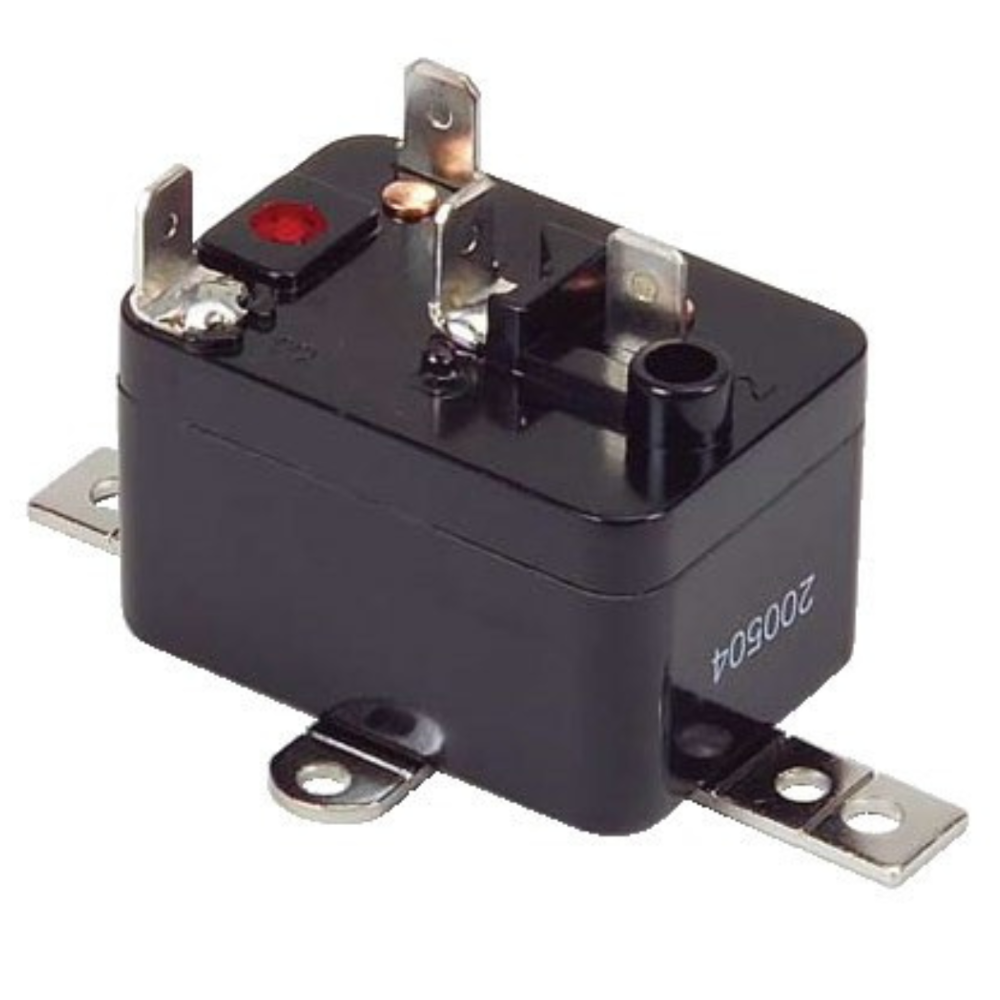

SMART ELECTRIC FAN RELAYS:
Single pole single throw (SPST) and single
pole double throw (SPDT) fan relays are
ideal for switching solenoids, fan motors
and other applications.
These general purpose fan relays have
universal mounting brackets. Available coil
voltages are 24V, 110/120V, 208-240V.
FEATURES:
• Universal mounting bracket
• Replace 90-290 thru 90-295
• Individually boxed
• Dimensions: 2.38” x 1.63” x 1.50”
• UL recognized component
• SPST and SPDT configurations
• 1/4” Quick-Connect Terminals
• 24V, 110/120V, 208/240V Coil Voltage
•CONTACT RATING: FULL LOAD- 12, LOCKED ROTOR- 60, VOTAGE- 120
•CONTACT RATING: FULL LOAD- 8, LOCKED ROTOR- 48, VOTAGE- 240
•CONTACT RATING: FULL LOAD- 7, LOCKED ROTOR- 42, VOTAGE- 277
•CONTACT RATING: RESISTIVE 18
