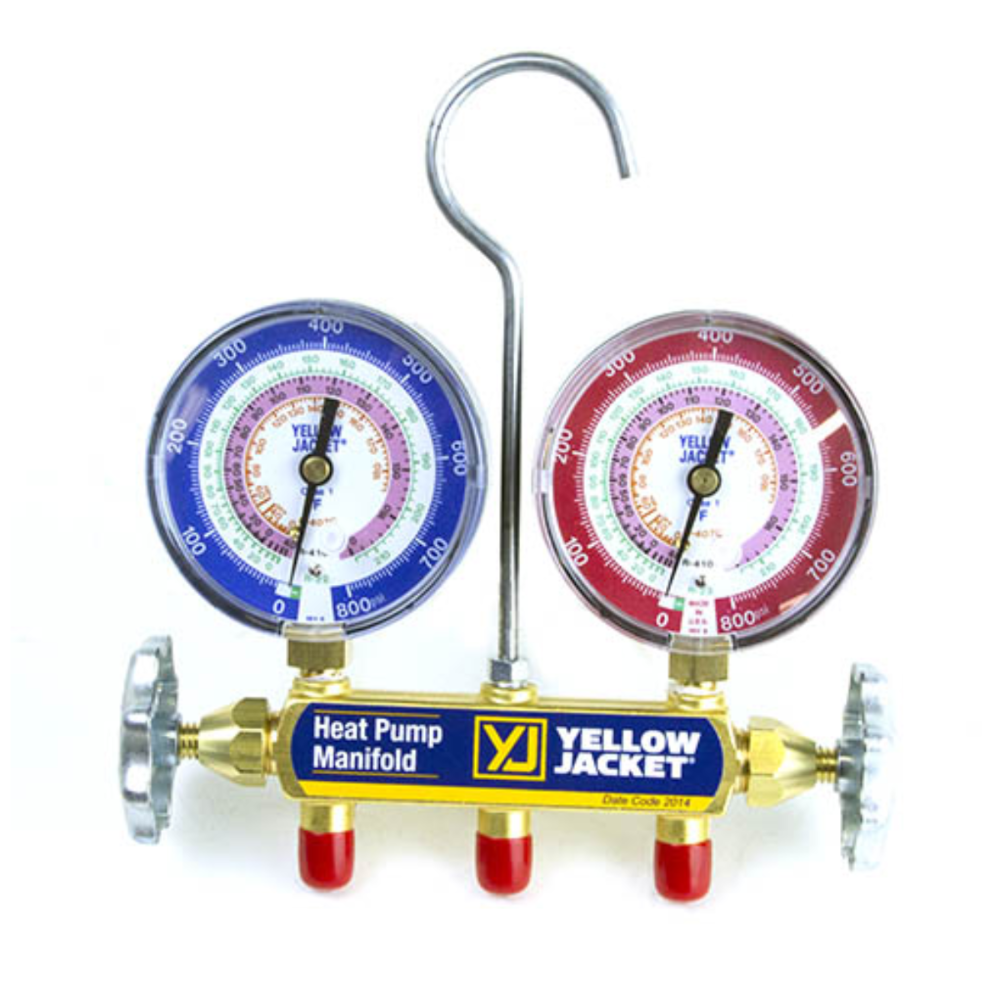

The Yellow Jacket 42041 Heat pump manifold features two 800 psi gauges to read all heat pump pressure conditions. Traditional low side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the low side gauge of the Yellow Jacket Heat Pump Manifold is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode or transition.
Manifold, R22/407C/410A
Gauge Reads in Fahrenheit
Large 3-1/8″ gauges feature steel cases with polycarbonate crystal
High- and low-side gauges read up to 800 psi
Color-coded scales - larger dials are bold and easy to read
Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
Proven sliding double "O"-ring pistons reduce wear
Long life nylon seats
Forged brass body for durability
Full porting maximizes capacity and flow
Full-size metal valve handles for easy operation
Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure (File# SA9737)
Made in USA
