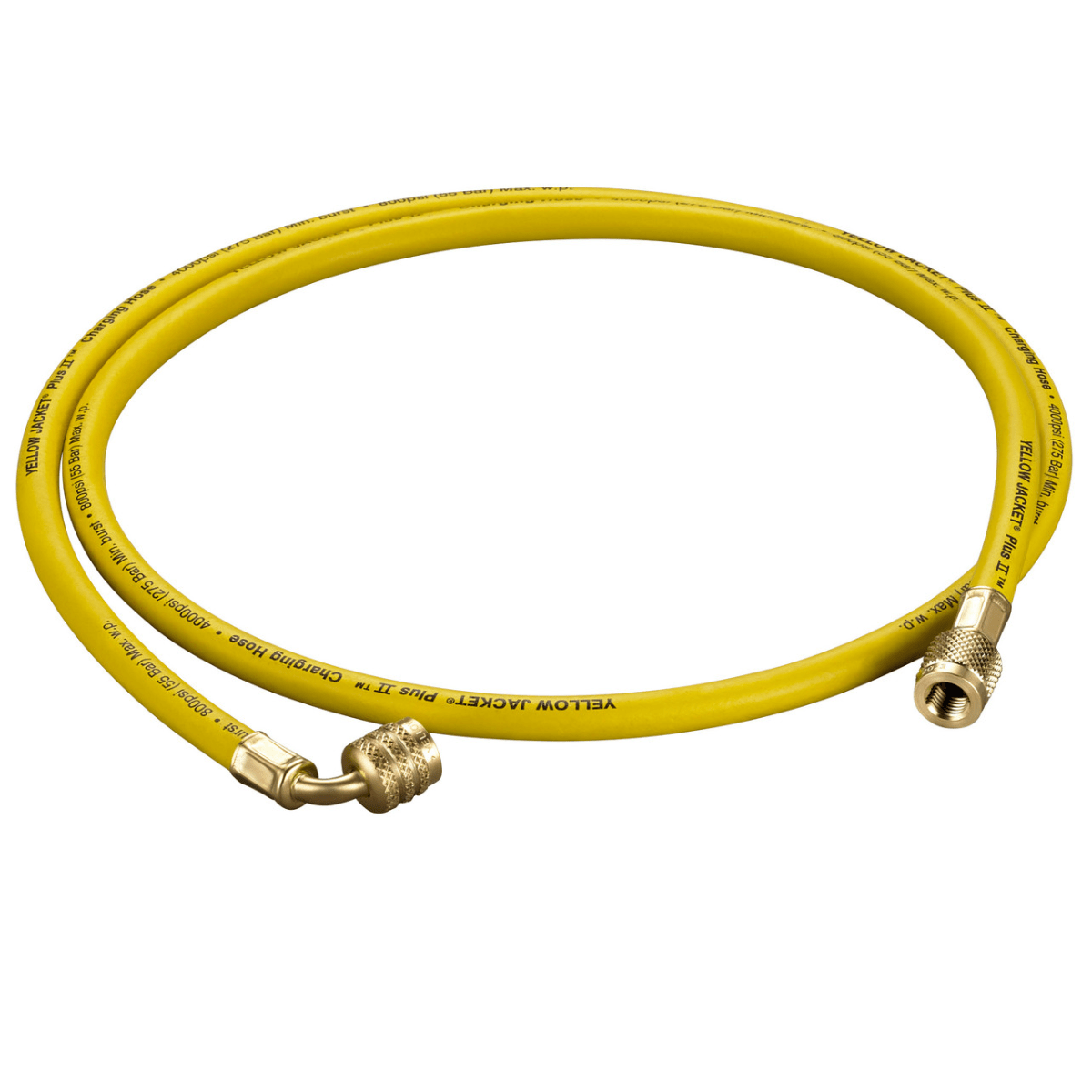

Yellow Jacket 30660 PLUS II 1/4" Hose for Left-Handed A2L Refrigerant Tanks - 60" Length 1/4" LH to 1/4" RH Right Angle Fitting
Nylon permeation barrier meets requirements for CFC, HCFC and HFC refrigerants
The A2L refrigerants, R-32 and R-454B, have adopted left-handed connections for their tanks. These new refrigerants are categorized as slightly flammable, so left-handed connections were implemented to differentiate them from A1, non-flammable refrigerants. As the industry adopts these new refrigerants, YELLOW JACKET A2L Tank Adapters and Charging Hoses incorporate left-handed connections so a service technician can safely charge A2L refrigerant systems.
Fitting Size 1/4" LH and RH
Hoses Included 1 - Yellow
Hose Length 60"
Burst Pressure 4,000 PSI (276 bar)
Working Pressure 800 PSI (55 bar)
Min. Bend Radius 6"
Hose End 1/4" 90° Angle
Key Features and Benefits
Left-handed connections differentiate them from A1, non-flammable refrigerants
Conversion adapters from 1/4" Female SAE flare left-handed (LH) x 1/4" Female SAE flare right-handed for A2L refrigerants
Easily identified by double ring on tightening knurl for LH connection
The moisture barrier provides improved resistance to moisture migration which contaminates expensive refrigerants
4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure and an operating temperature of -20° to 180°F (-28.8° to 82.2°C)
Minimum bending radius: 6" (152mm)
Made in USA
