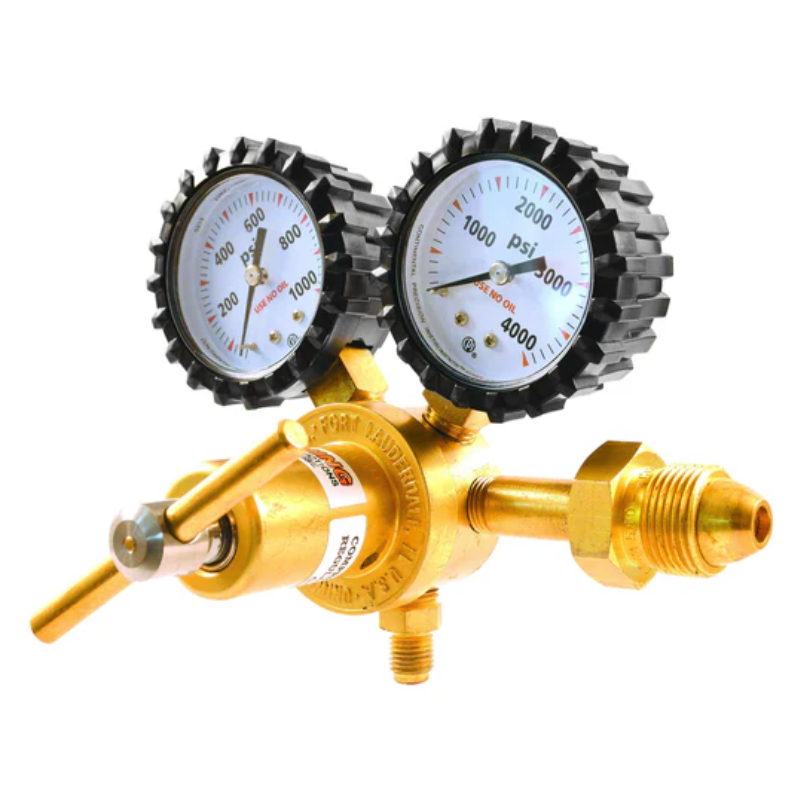

NITROGEN REGULATOR WITH 0-800 PSI DELIVERY PRESSURE, 2"

-Nitrogen Regulator, Delivery Pressure 0-800 PSI
-CGA580 Inlet Connection, 1/4 Inch Male Flare Outlet Connection and Easy to Read 2 Inch Gauges with Protective Rubber Gauge Boots
-Durable brass piston designed diaphragm, self re-seating relief valve (not designed to protect downstream system)
-Large brass Tee Handle with stainless steel pressure adjusting screw and regulator bushing that prevents galling
-Regulator can be used with CO2 with the Uniweld part no F36 adaptor, CO2 Cylinder (CGA320) to Nitrogen Regulator (CGA580) (purchased separately)

Regulators for use with Nitrogen or CO2 (with optional F36 adaptor) that have been specifically designed for purging and pressure testing. Large “T” handle with stainless steel pressure adjusting screw and bushing prevent galling.

Inlet Connection: CGA580
Outlet Connection: 1/4” Flare (M)
Gauge: Dual (2″)
Gauge(s) Delivery G34SD: 1000 PSI / G7SD: 4000 PSI
Delivery PSIG 0-800
Gas Type: Nitrogen, (CO2; with F36 Adaptor)


Details:
Size 5-3/4 Inch Width x 4-1/4 Inch Depth x 5-1/4 Inch Height
Material Steel (Case), Polycarbonate (Lens)
Inclusions/Features Piston Actuated Seat, Protective Rubber Gauge Boot, Porous Metal Inlet Filter, Fine Mesh Filter Screen, T-Handle
Pressure Rating 0 to 800 PSI
CGA Inlet 580 Nitrogen
Outlet Connection 1/4 Inch Male Flare
Regulators for use with Nitrogen or CO2 that have been specifically designed for purging and pressure testing
Large T handle with stainless steel pressure adjusting screw and bushing prevent galling
