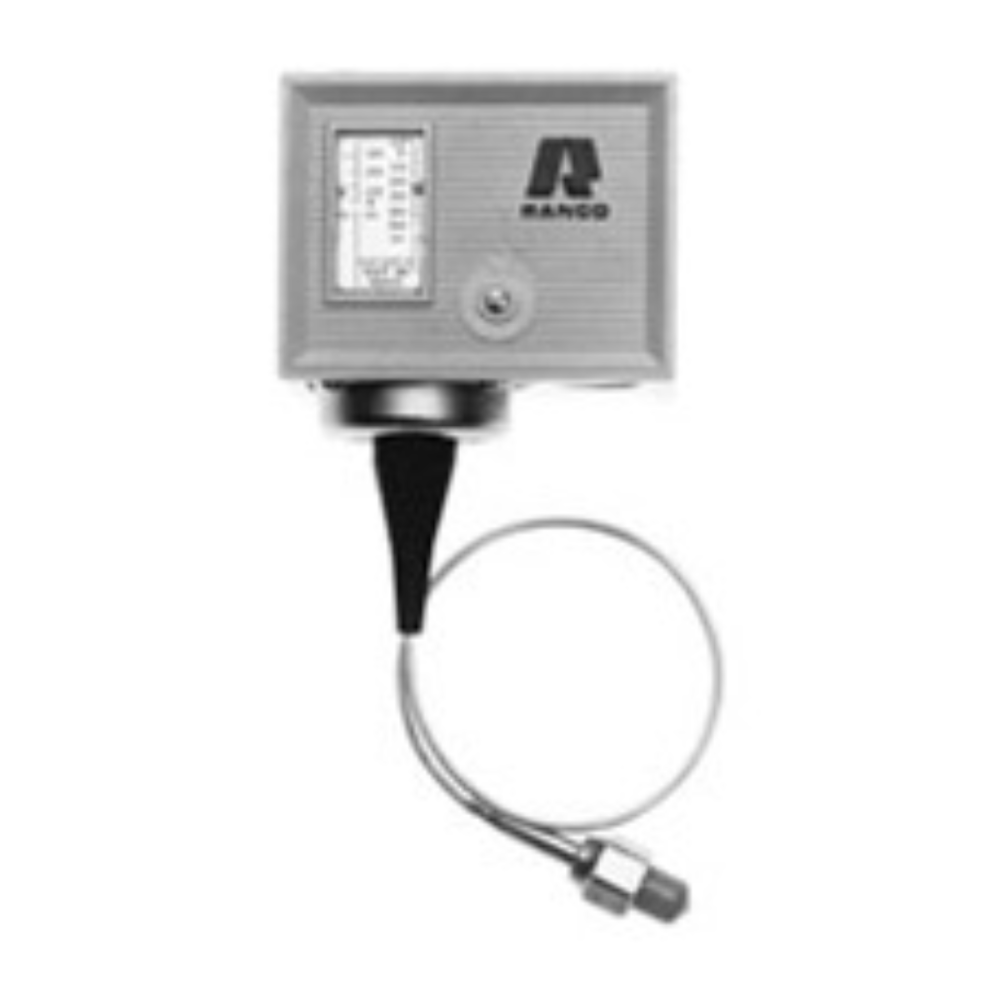

HIGH PRESSURE REFRIGERATION CONTROL W/ 100 - 400 PSI - SPST-OPENS LOW

O Series Pressure Controls
These controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Series Application - High Pressure Controls
Reset - Auto
Switch - SPST-Opens Low
Differential - 40 to 150 PSI (3 to 10 bar)
Pressure Connection - 1/4" SAE male flare
Pressure Range - 100 to 400 PSI (7 to 27 bar)

✔ NEMA 1 enclosure with non-conductive cover.
✔ Front-located captive cover screw.
✔ Large, easy-to-read scale plate.
✔ SUPER CAP® capillary protection system.
✔ Universal mounting and compact design.
✔ Screw terminals are raised and fully accessible for easy wiring.
✔ Laser-welded bellows for extended life.
✔ Heavy-duty plated steel frame.
✔ Suitable for R12, R22, and R502 applications.
