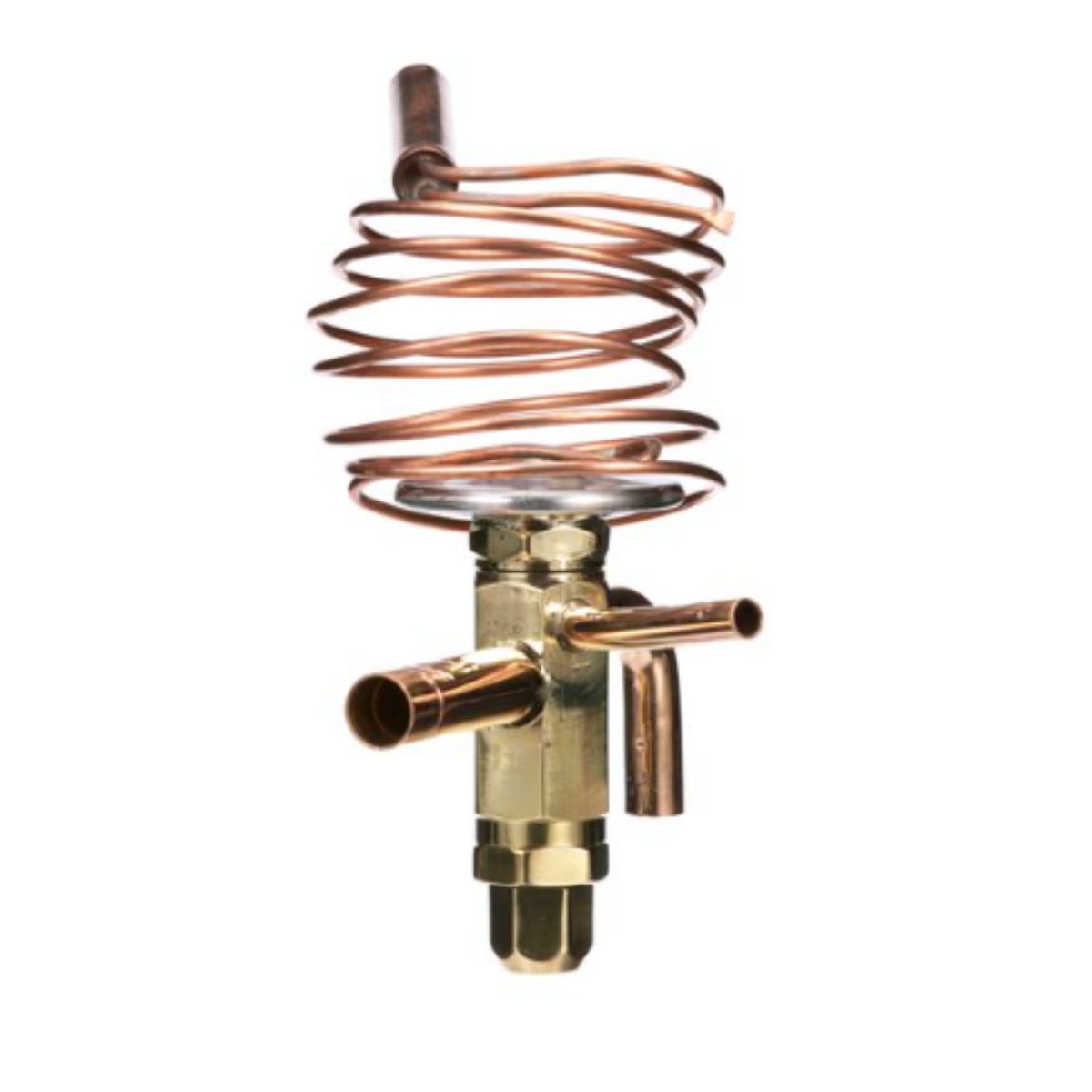

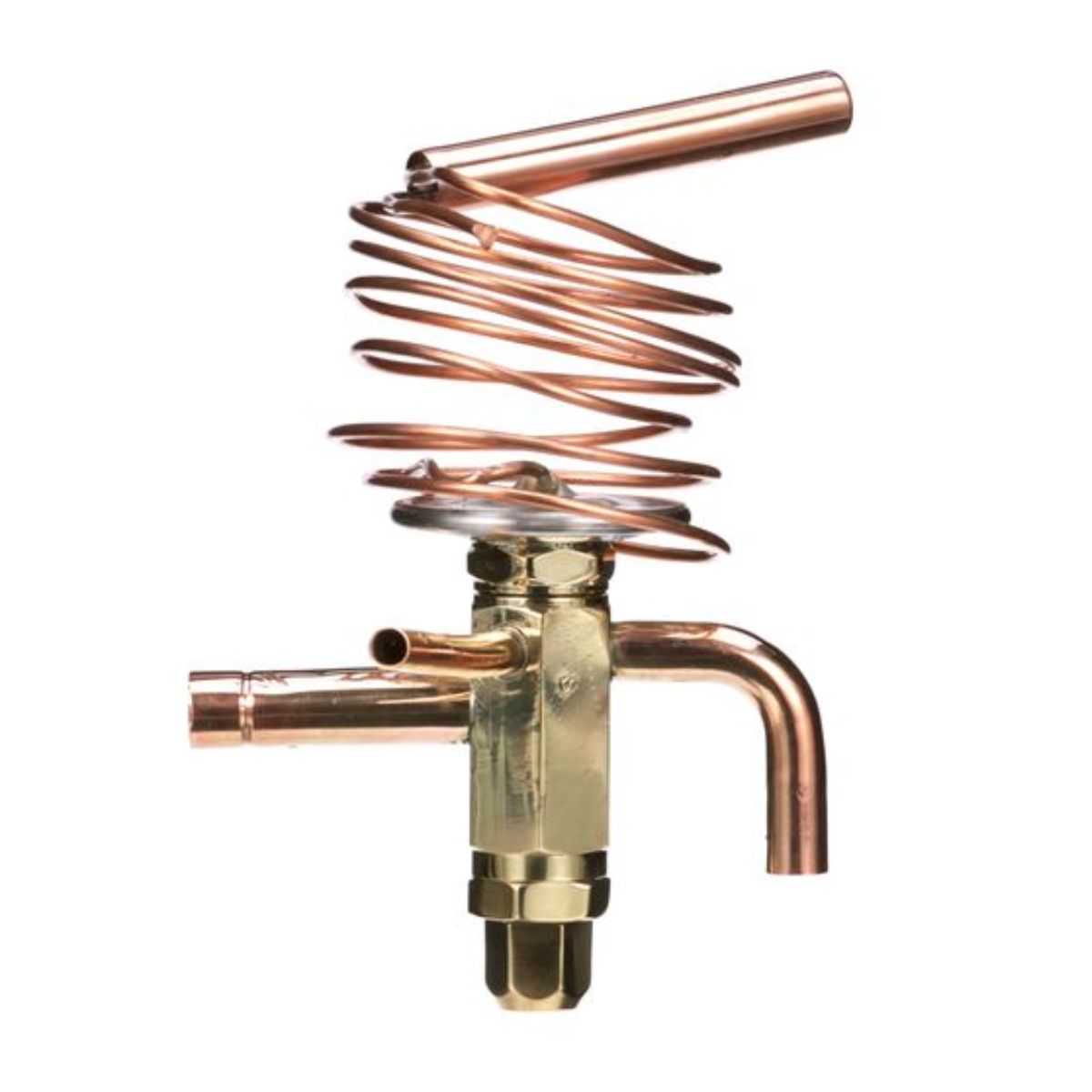

HFES 12HC-01 - 5/8" X 1-1/8" ODF S/T R22 - HF SERIES THERMOSTATIC EXPANSION VALVE

The HF series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.

- Stainless steel replaceable power element eliminates corrosion and prevents valve failure
- Two body sizes provide capacities from 1/4 to 20 tons

Refrigerant Code - H (R-22, Interchangeable with R-407C)
Charge Code - C (Medium Temp)
Capacity (Nominal) - 12 Tons
Inlet Connection Size - 5/8” ODF Solder
Outlet Connection Size - 7/8” ODF Solder
Adjustable Superheat - Yes
Equalizer - External
Length - 5 ft. Capillary
Body Design - Straight Thru
Bleed - No
Strainer - Not Removable
Maximum Working Pressure - 450 psig
Approvals - UR/CUR File Number SA5312
