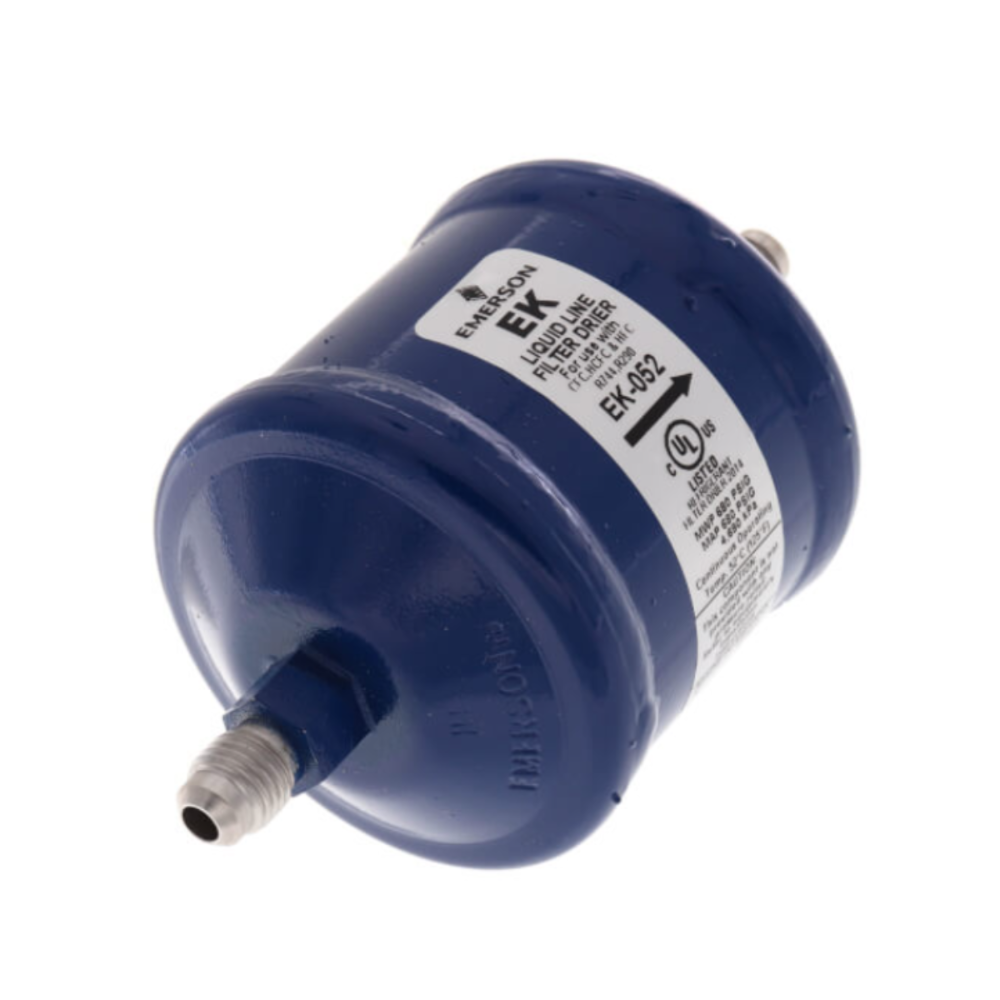

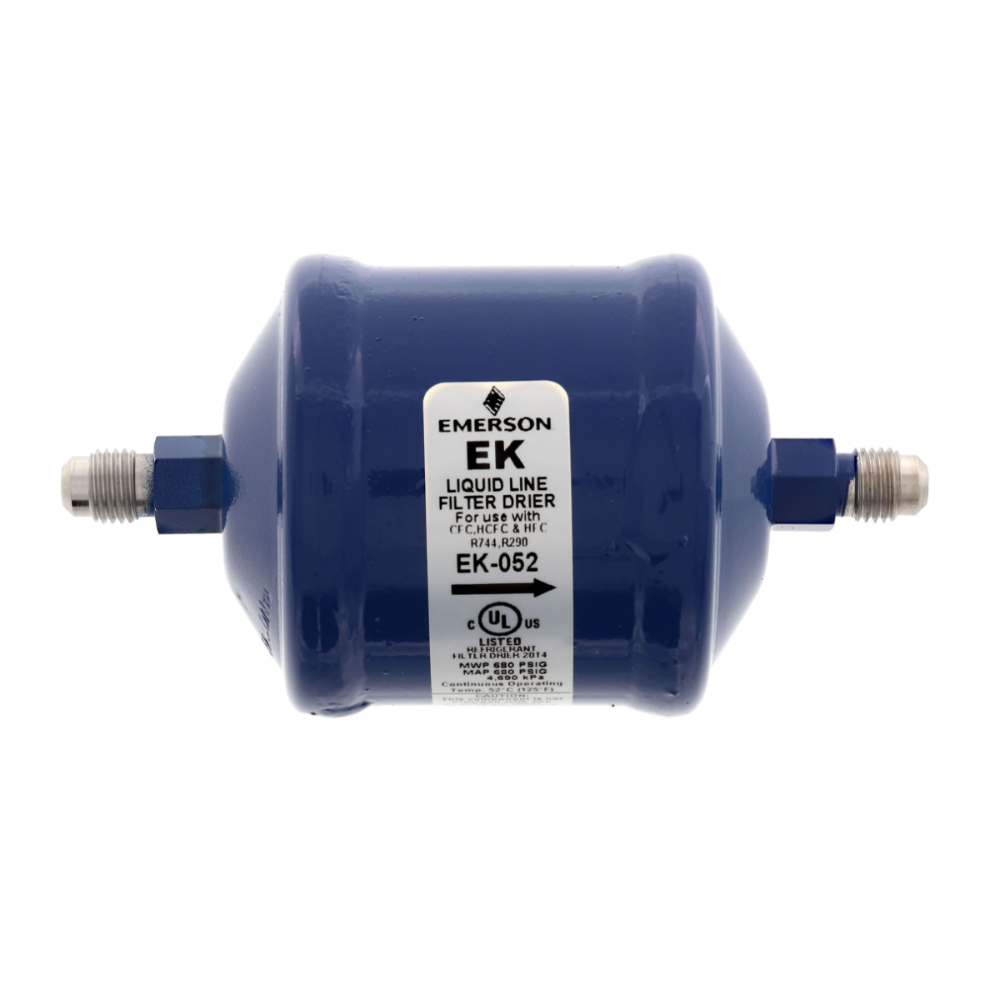

EK052SVCAP SERIES CAP TUBE FILTER DRIER (5 CUBIC INCHES) - 1/4" ODF

1/4" ODF EK052SVCAP-Series Cap Tube Filter Drier

The EK Cap Tube filter drier is designed for food-service refrigeration systems.

Schrader valve on the inlet side acts as a maintenance and charging port.
Outlet is designed to accept capillary tubing without the need for crimping.
Extended solid copper 1/4 ODF connection inlet by cap tube.
Incorporates all the internal features of the premium EK.

Desiccant blend - optimized for high water capacity and acid capacity
Filtration: 20 microns
Maximum working pressure: 680 psig
Connection Type: SAE Flare
Finish: Epoxy Powder Coated
Material: Steel Micron
Rating: 20 micron
Model: EK 052 SV CAP
Pressure Rating: 680 psig
Series: EK
Size: 1/4 Inch
Type: Liquid Line
Volume: 5 cu-Inch
