YELLOW JACKET

BRUTE II® TEST AND CHARGING MANIFOLD (°F AND °C)

BRUTE II® TEST AND CHARGING MANIFOLD (°F AND °C)

SKU: 46013

PRODUCT TYPE: Manifolds

Expedited Shipping

View full details

Features & Specifications

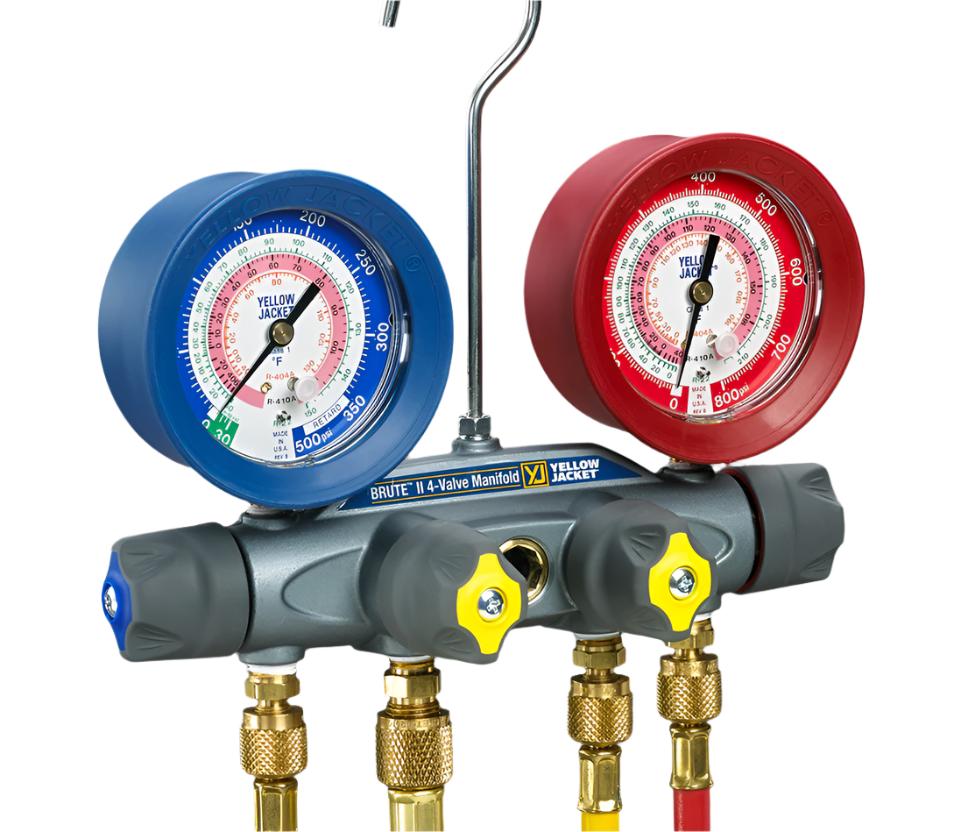

BRUTE II® 4-Valve Test and Charging Manifold provides the flow that is proven faster than any conventional manifold. The aluminum alloy body is forged for strength and reliability with 3/8″ bores through the body to speed the job.

FEATURES:
- Fourth hose enables connection to hi-/lo-sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses.
- Available in 1/4″ hi-/lo-sides with 3/8″ vacuum port for regular jobs, or 3/8″ hi-/lo-sides with 1/2″ vacuum port for larger systems.
- Front access for easy field recalibration.
- Double “O” ring piston for reliability and long service life.
- Exclusive 100-mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seat.
- Contoured easy-grip handles for positive control; color-coded for ready identification.
- Sight glass to easily view refrigerant movement and condition during charging and recovery.
- Heavy duty hook won’t pull out.
- Also available with 3-1/2″ (90 mm) red and blue liquid-filled gauges.
- Manifold and hose holder fittings 1/4″-3/8″-1/4″-1/4″ unless otherwise identified.
- Made in the USA.

All have 1/4″ hi-/lo-sides with 3/8″ vacuum port unless otherwise specified; does not apply to °C manifolds.
