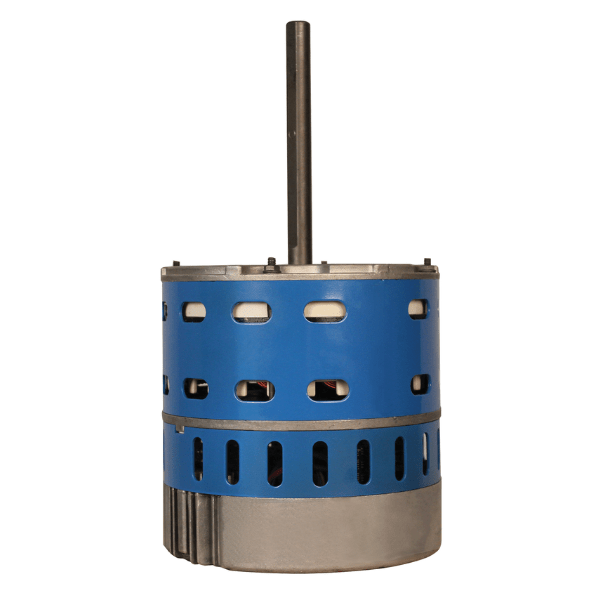

AZURE® ECM VS 1/4-1/2 HP 1075 RPM 120/240V SINGLE PHASE - BLUETOOTH CONTROL BALL BEARING DIRECT DRIVE VARIABLE SPEED - CONSTANT TORQUE BLOWER APPLICATIONS

Azure Direct Drive Variable Speed and Constant Torque:
•Bluetooth Control -Free app (AZURE ECM) with Intuitive Drop down menus
•Azure connects directly to OEM harnesses; additional module or adapter is not required
•The app allows optimization of airflow even if ductwork is not optimal
•4 speeds plus 625 RPM constant fan mode
•High efficiency 85%
•Replaces A LOT of motors and Saves time and money!
16 Pin OEM Variable Speed ECM, PWM, 2.0, 2.3, 2.5 EON®; and Evergreen® VS, Rescue® EZ16®, Many* 4 Pin OEM Variable Speed ECM 3.0; and Evergreen® VS, Constant Torque X13®, Endura® Pro, SelecTech®; and Evergreen® EM, Rescue® EZ13®

•Motor Type - ECM
•Enclosure - OAO
•H.P. (Max.) - 1/2
•Voltage - 120/240
•Multi-Rated H.P. - 1/4-1/2
•Speeds - 5
•Hz - 50/60
•Rotation - REV+FWD
•RPM Range - 1075 Variable
•NEMA Frame Size - 48
•Phase - Single
•Standards - CUL
•FLA - 6.4/3.8
•Mount - Belly Band
•Bearing - Ball
•Shaft Length Inches - 4.94
•Shaft Dia Inches - 1/2
•Thermal Protection - REDUNDANT Electronic Control CIRCUITS
•Ambient Deg C - 55
•NOTE - Bluetooth Control - AZURE ECM App
•Ins. Class - B
•Capacitor Included - No
•Replaces - Variable Speed ECM and Constant Torque
