SKU: AAD520004STDB
PRODUCT TYPE: Sealants & Adhesives
Features & Specifications
Features & Specifications
A special black, air-drying contact adhesive that is required for joining the seams and butt joints of ArmaFlex Pipe and Sheet Insulations as well as adhering ArmaFlex to ducts, tanks, chillers and other equipment / vessels.
APPLICATIONS -COMMERCIAL BUILDINGS, RESIDENTIAL BUILDINGS
Material type
Synthetic rubber base with synthetic resins and fillers added; hydrocarbon- and ketone-type solvents.
ArmaFlex ArmaFlex® 520 Black Elastomeric Adhesive, Size: 1 pt, Color: Black, Application: For Joining Any Armaflex Insulation Seams Where Regular 520 Adhesive May Not Give a Clean Enough Finished Appearance, Temperature Rating: -297 to 220 deg F, Container Type: Brush Top Can, Form: Liquid, Odor: Characteristic, Composition: 30 to 60% Acetone, 10 to 30% Hexanes, Toluene, 5 to 10% p-tert-Butylphenol Formaldehyde Resin, Cure Time: 36 hr, Specific Gravity: 0.83, Flash Point: -15 deg F, Boiling Point: >133 deg F, Vapor Pressure: 180 mm Hg, VOC: 615 g/L, Shelf Life: 1.5 years, Coverage: 200 sq-ft, Tack Free Time: 1 to 5 min
SPECIFICATIONS
Application : For Joining Any Armaflex Insulation Seams Where Regular 520 Adhesive May Not Give a Clean Enough Finished Appearance
Boiling Point : >133 deg F
Color : Black
Composition : 30 to 60% Acetone, 10 to 30% Hexanes, Toluene, 5 to 10% p-tert-Butylphenol Formaldehyde Resin
Container Type : Brush Top Can
Coverage : 200 sq-ft
Cure Time : 36 hr
Flash Point : -15 deg F
Form : Liquid
Item Name : Elastomeric Adhesive
Odor : Characteristic
Shelf Life : 1.5 years
Size : 1 pt
Specific Gravity : 0.83
Sub Brand : ArmaFlex 520 Black
Tack Free Time : 1 to 5 min
Temperature Rating : -297 to 220 deg F
VOC : 615 g/L
Vapor Pressure : 180 mm Hg
FEATURES
ArmaFlex 520 Black adhesive is an air drying contact adhesive that is black in color for a cleaner visual appearance at seams. ArmaFlex 520 Black adhesive has the same great properties of regular ArmaFlex 520 adhesive. It is excellent for joining seams and butt joints of ArmaFlex pipe and sheet insulations for line temperatures upto 250 deg F. The adhesive may also be used to apply ArmaFlex sheet insulation to flat or curved metal surfaces that will operate at temperatures upto 180 deg F.
Provides a strong bond for tight seams
Standards/Certifications: ASTM C1338|ASTM E84 25/50|ASTM G21|ISO 9001 Certified|MIL-A-24179A

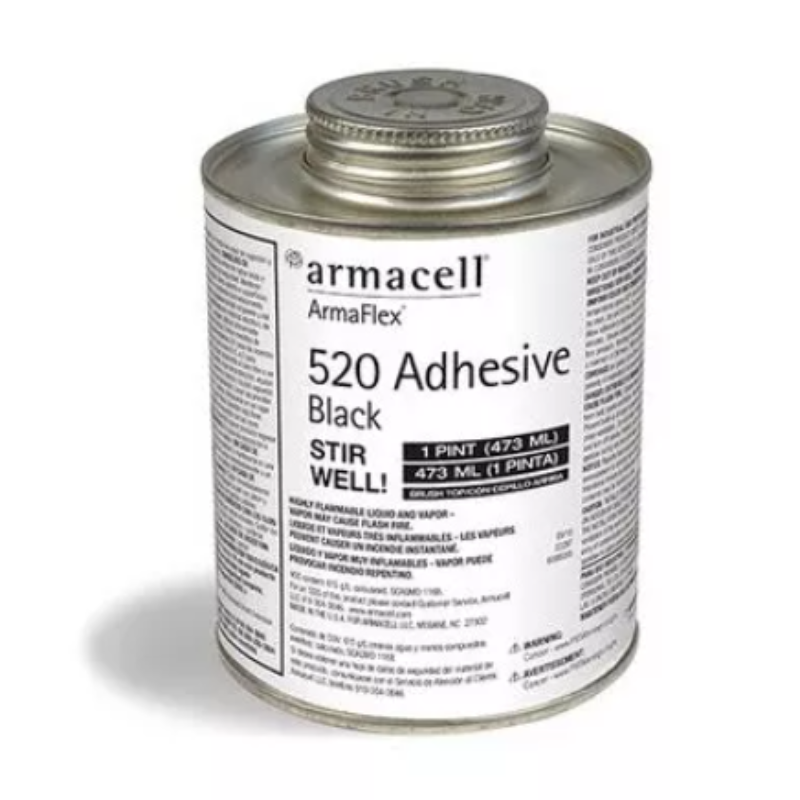

![ARMAFLEX 520 ADHESIVE - 1 PINT - BLACK](http://www.ar-supply.com/cdn/shop/files/620_A_R_Supply_Products_2.png?v=1718898472&width=1445)
