SKU: AAD520004
PRODUCT TYPE: Sealants & Adhesives
Features & Specifications
Features & Specifications
A special amber, golen, air-drying contact adhesive that is required for joining the seams and butt joints of ArmaFlex Pipe and Sheet Insulations as well as adhering ArmaFlex to ducts, tanks, chillers and other equipment / vessels.
APPLICATIONS -COMMERCIAL BUILDINGS, RESIDENTIAL BUILDINGS
Material type
Synthetic rubber base with synthetic resins and fillers added; hydrocarbon- and ketone-type solvents.
ArmaFlex ArmaFlex® 520 Elastomeric Adhesive, Size: 1 pt, Color: Yellow, Application: For Joining Any Armaflex Insulation Seams, Temperature Rating: -297 to 220 deg F, Container Type: Brush Top Can, Form: Liquid, Odor: Solvent, Composition: 30 to 60% n-Hexane, 10 to 30% Acetone, Toluene, Synthetic Resin, Non-Hazardous Ingredients, Cure Time: 36 hr, Specific Gravity: 0.82, Flash Point: -20 deg C, Boiling Point: >66 deg C, Vapor Density: >1, Vapor Pressure: 180 mm Hg, VOC: 615 g/L, Viscosity: 155 to 195 cPs, Shelf Life: 1.5 years, Coverage: 200 sq-ft, Tack Free Time: 1 to 5 min
SPECIFICATIONS
Application : For Joining Any Armaflex Insulation Seams
Boiling Point : >66 deg C
Color : Yellow
Composition : 30 to 60% n-Hexane, 10 to 30% Acetone, Toluene, Synthetic Resin, Non-Hazardous Ingredients
Container Type : Brush Top Can
Coverage : 200 sq-ft
Cure Time : 36 hr
Flash Point : -20 deg C
Form : Liquid
Item Name : Elastomeric Adhesive
Odor : Solvent
Shelf Life : 1.5 years
Size : 1 pt
Specific Gravity : 0.82
Sub Brand : ArmaFlex 520
Tack Free Time : 1 to 5 min
Temperature Rating : -297 to 220 deg F
VOC : 615 g/L
Vapor Density : >1
Vapor Pressure : 180 mm Hg
Viscosity : 155 to 195 cPs
FEATURES
ArmaFlex 520 adhesive is an air drying contact adhesive that is excellent for joining seams and butt joints of ArmaFlex pipe and sheet insulations for line temperatures upto 250 deg F. The golden color adhesive may also be used to apply ArmaFlex sheet insulation to flat or curved metal surfaces that will operate at temperatures upto 180 deg F. ArmaFlex 520 adhesive is the preferred contact adhesive for all ArmaFlex foam applications.
Provides a strong bond for tight seams
Standards/Certifications: ASTM C1338|Amend-2 Type II|ASTM E84 25/50|ASTM G21|ISO 9001:2008 Certified|MIL-A-24179A

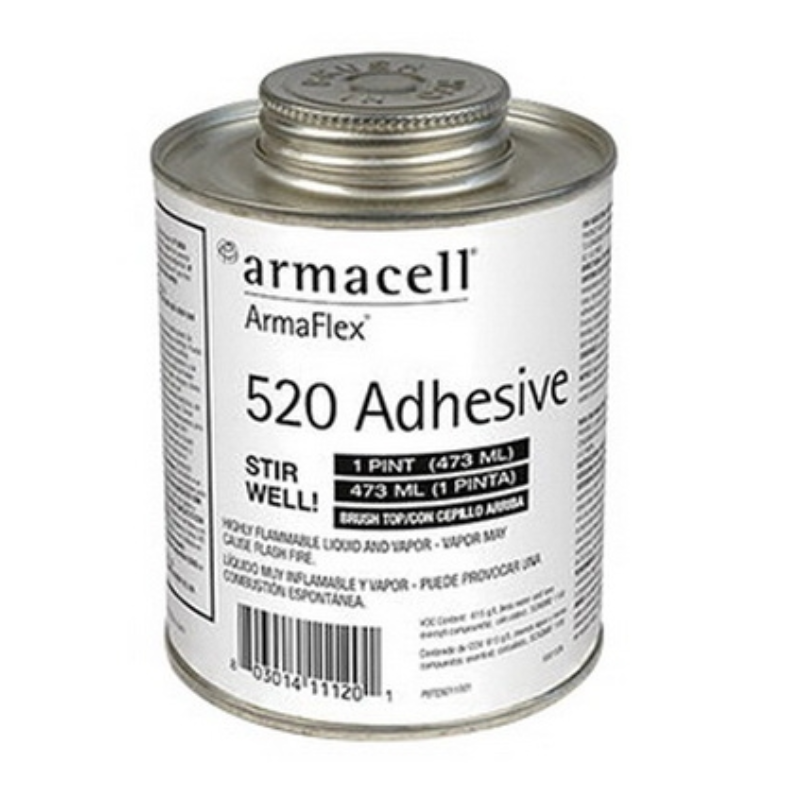

![ARMAFLEX 520 ADHESIVE - 1 PINT - AMBER](http://www.ar-supply.com/cdn/shop/files/620_A_R_Supply_Products_3.png?v=1718899089&width=1445)
