COMFORTSTAR

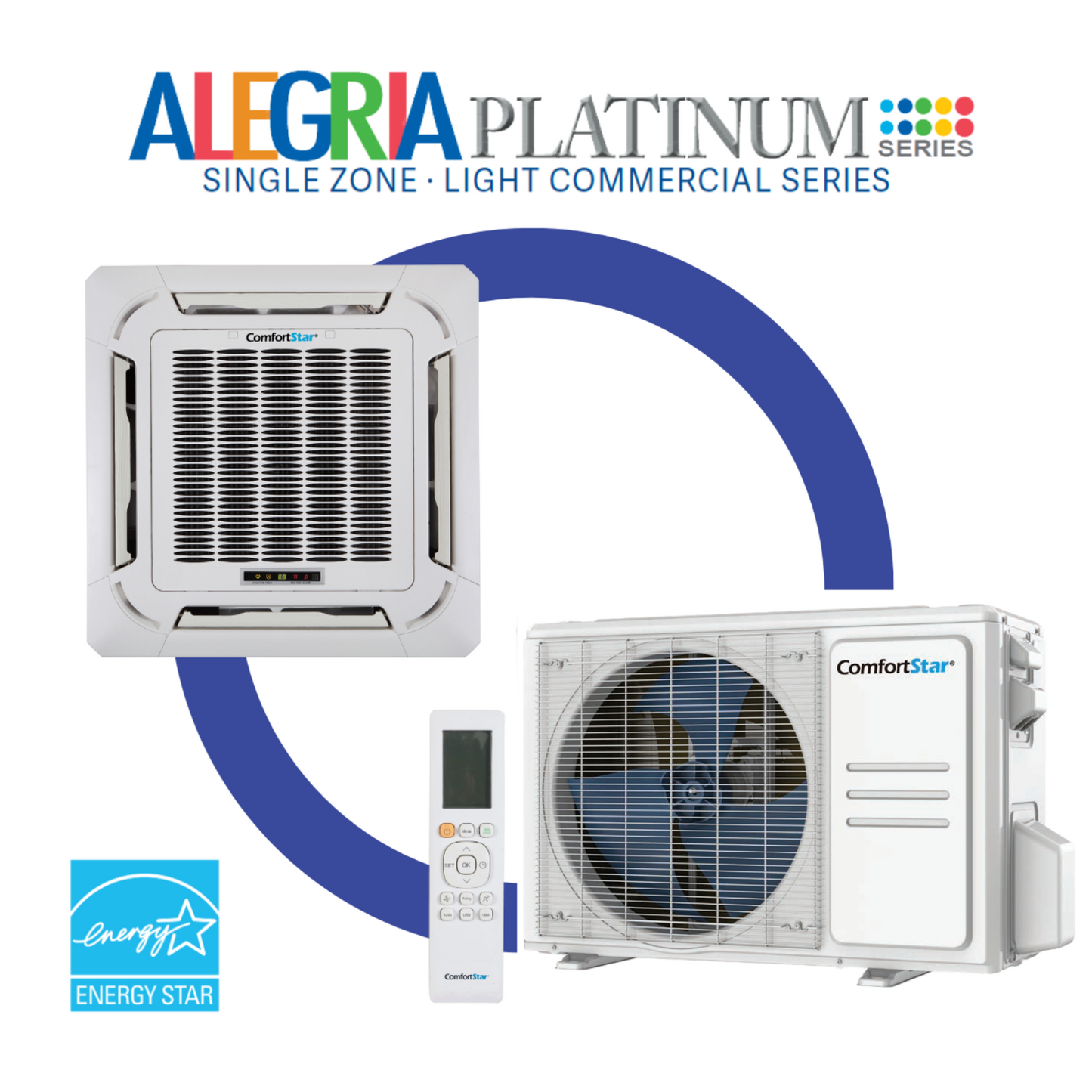

9K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL CASSETTE SYSTEM – 20 SEER2

SKU: CZPCD-TPA-09

BARCODE: CZP09CD(O) + TPA-09

PRODUCT TYPE: Cassettes

Product variants

Quantity

Service Manual

CPA TPA TIP FPA LC Service Manual

Owners Manual & Installation Manual

TPA TIP Instruction Manual

Submittals

TPA09-CZP09CD(O)

View full details

Refrigerant Type: R410a

SEER2: 20

EER2: 13

HSPF2-4: 10

HSPF2-5: 8.2

Max. Allowable Piping Length (ft): 82

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 33

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 3/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 31.97/38.14

Outdoor Unit Net/Gross Weight (lbs.): 63.71/69.00

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor 4 way Cassette
• Compact Design
• Concealed Ceiling Unit
• Quiet Operation
• 360° Air Discharge
• Wireless Remote Control (standard)
• Programmable Wired Remote (optional)
• Wired Wall Remote (optional)
• Available Fresh Air Intake
• Integrated lift Pump (29” head)
• Wi-Fi Compatible

Specifications

Unit Size - Inches (W x D x H):

Indoor -22.44x22.44x10.24
Outdoor - 30.12x11.93x21.85

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 352.94/305.88/270.59
Outdoor - 1294.1

Tonnage: 0.75

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 39.5/36/32.5
Outdoor - 53

Heat Capacity (BTU): 10000

Cooling Capacity (BTU): 9000

Placement: Light Commercial Applications

Breaker Size (A): 10

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
