COMFORTSTAR

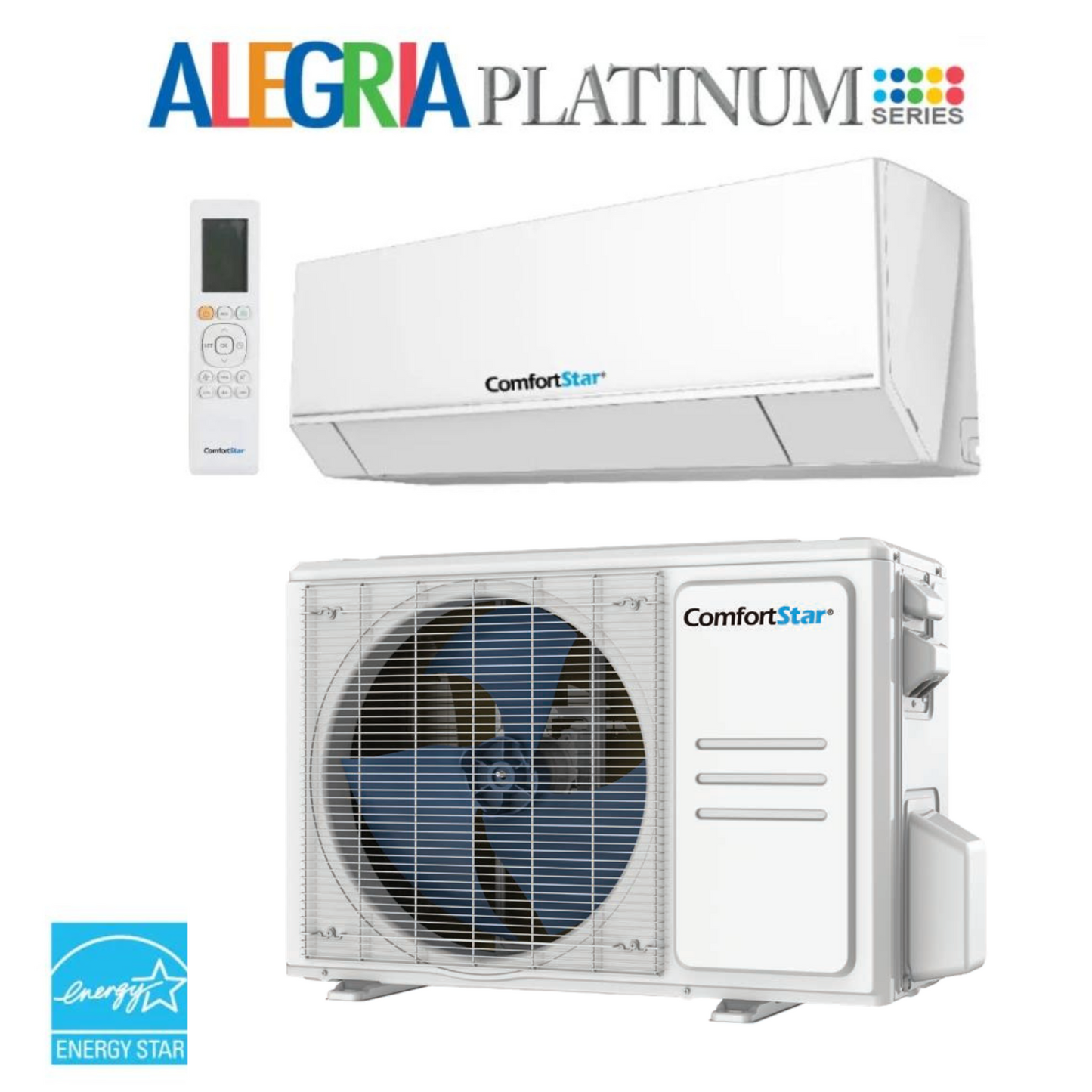

9K COOLING + HEATING - 115V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 25 SEER2

SKU: CZPCA-CHF-09

BARCODE: CZP09CA(O) + CHF09CA(I)

PRODUCT TYPE: Highwall Units

Product variants

Quantity

Owners and Installation Manual

View full details

Refrigerant Type: R410a

SEER2: 25

EER2: 14.5

HSPF2-4: 9.9

HSPF2-5: 7.6

Max. Allowable Piping Length (ft): 82

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 33

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 1/2"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 22.93/29.01

Outdoor Unit Net/Gross Weight (lbs.): 66.80/72.31

Features

-13°F Low Outdoor Ambient Operating
• Wi-Fi Compatible (optional)
• Auto Swing
• Auto Defrost
• 12-Speed Indoor Fan
• Emergency Mode
• Anti-Cold Air Function
• Bypass Mode
• Mute Operation
• Refrigerant Leak Detection
• Error Code
• Manual Power Switch
• Interactive display
• Self-Diagnosis
• 3-Directional Airflow
• 2-Way Draining
• Optional Wired Control

Specifications

Unit Size - Inches (W x D x H):

Indoor - 31.30x8.86x11.61
Outdoor - 30.12x11.93x21.85

Voltage: 115V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 352.94/294.12/235.29
Outdoor - 794

Tonnage: .75

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 40/35/23.5
Outdoor - 54

Heat Capacity (BTU): 10000

Cooling Capacity (BTU): 9000

Placement: Residential and Commercial Applications

Breaker Size (A): 15

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
