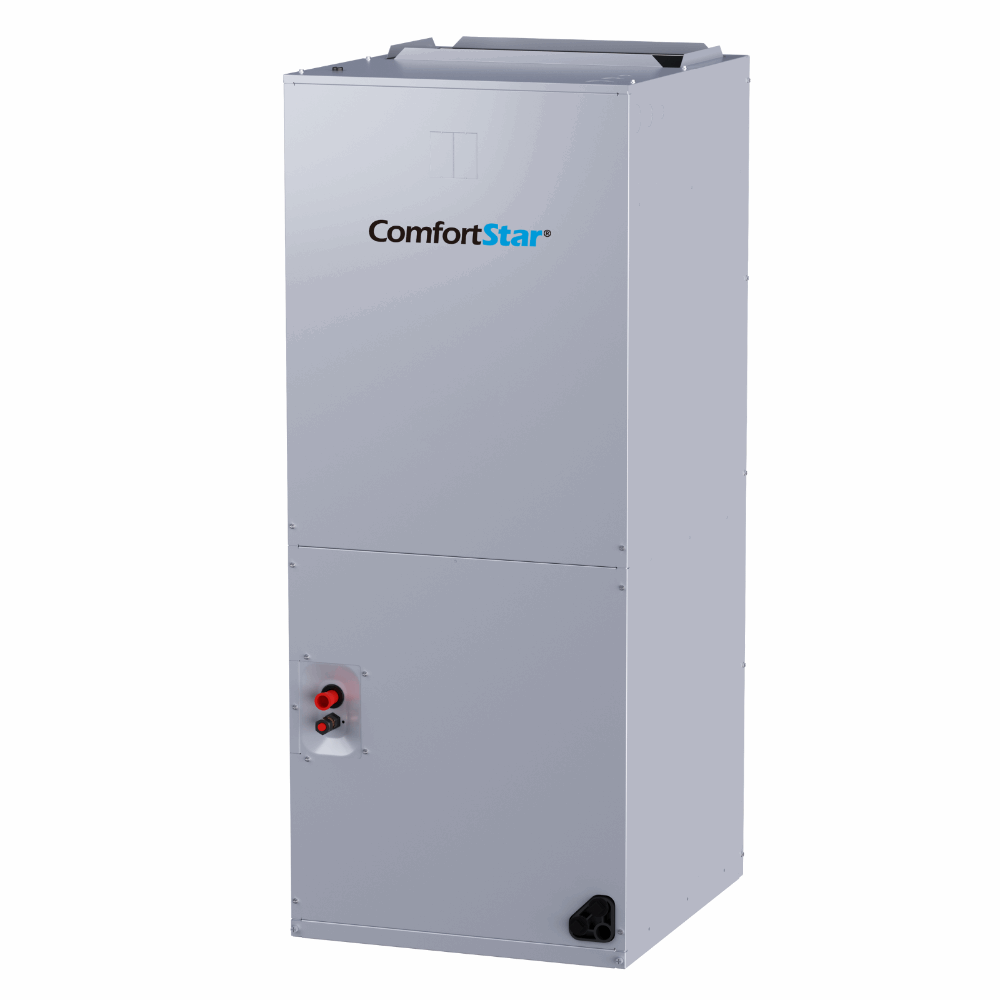

48K LUC5 SEER2 - MULTIPOSITION AIR HANDLER - UP TO 14.3 SEER2

48K LUC5 SEER2 - MULTIPOSITION AIR HANDLER - UP TO 14.3 SEER2

SKU: LUC5-48-15

PRODUCT TYPE: Air Handlers

Free Lift Gate

Expedited Shipping

System Gross Weight: 159 (lbs.)
Combination Table
View full details
Refrigerant Type: R410a
Unit Size - Inches (W x D x H): 22"x24"x54-1/2"
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 1780/2300/2690
Tonnage: 3.50
dB(A) Noise Level (Hi / Mi / Lo): 54/52/49
SEER2: Up to 14.3
EER: Up to 11.7
Operating Mode: Cooling Only
Heat Capacity (BTU): Optional Field Installed Heat Kits Available From 5k To 20kw
Cooling Capacity (BTU): 48000
Placement: Indoor Air Handler Unit
Outdoor Unit Net/Gross Weight (lbs.): 159

Features

• Factory sealed cabinet helps achieve 2% or less on leakage rate.
• Horizontal and vertical condensate pans are standard.
• Blower wheel and coil can easily slide out for easier maintenance.
• Field Installed Heater Kits are OPTIONAL: 5/ 7.5/ 10/ 15/ 20KW.
• Factory Installed Piston for metering.
• 2-stage fan control.
• AHRI/ETL Certified.
• Mobile Home Certification.
