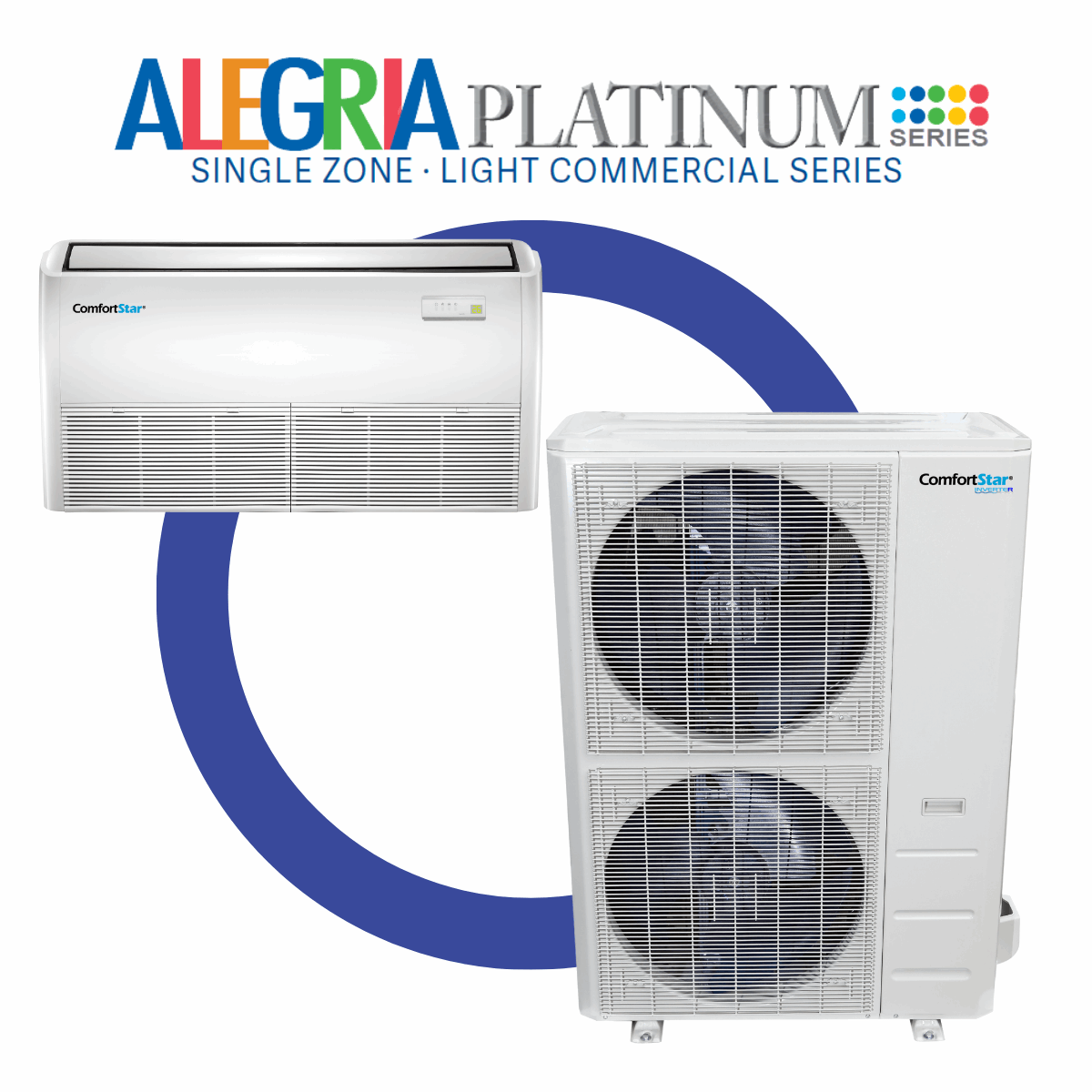

48K COOLING + HEATING - 208/230V LIGHT COMMERCIAL FLOOR-CEILING SYSTEM – 18.9 SEER2

COMFORTSTAR

48K COOLING + HEATING - 208/230V LIGHT COMMERCIAL FLOOR-CEILING SYSTEM – 18.9 SEER2

SKU: CZPCD-FPADUB-48

BARCODE: CZP48CD(O) + FPA48DU

PRODUCT TYPE: Floor/Ceiling Units

Product variants

Expedited Shipping

System Gross Weight: 351.41 (lbs.)

Quantity

Service Manual

CPA TPA TIP FPA LC Service Manual

Owners Manual & Installation Manual

FPA- Owners & Installation Manual

Submittals

FPA48DU-CZP48CD(O)

View full details

Refrigerant Type: R410a

SEER2: 18.9

EER2: 9.3

HSPF2-4: 10.0

HSPF2-5: 7.5

Max. Allowable Piping Length (ft): 213

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 98

Min. Power Supply Wire Size (AWG): 10*3

Min. Inter-Connecting Wire Size (AWG): 16*3, Stranded+22*2 Shielded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 87.74/102.29

Outdoor Unit Net/Gross Weight (lbs.): 219.14/249.12

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Floor/Ceiling
• Flexible Design – Horizontal or Vertical Installation
• Compact Design
• Quiet Operation
• Louver Swing Function to Disperse Air Flow
• Wireless Remote Control (standard)
• Wired Control (optional)

Specifications

Unit Size - Inches (W x D x H):

Indoor - 64.96x26.57x9.25
Outdoor - 37.48x16.34x52.48

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 1352.94/1117.65/1000.00
Outdoor - 4500

Tonnage: 4

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 55.0/49.5/44.5
Outdoor - 63.5

Heat Capacity (BTU): 50000

Cooling Capacity (BTU): 48000

Placement: Light Commercial Applications

Breaker Size (A): 35

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 3/4"
