LCM 36K LCM5 MULTI-POSITION AIR HANDLER - UP TO 15.2 SEER2
LCM LCM
10 Year Compressor Warranty10 Year Parts Warranty

COMFORTSTAR

TECH SUPPORT APP catalog link catalog link

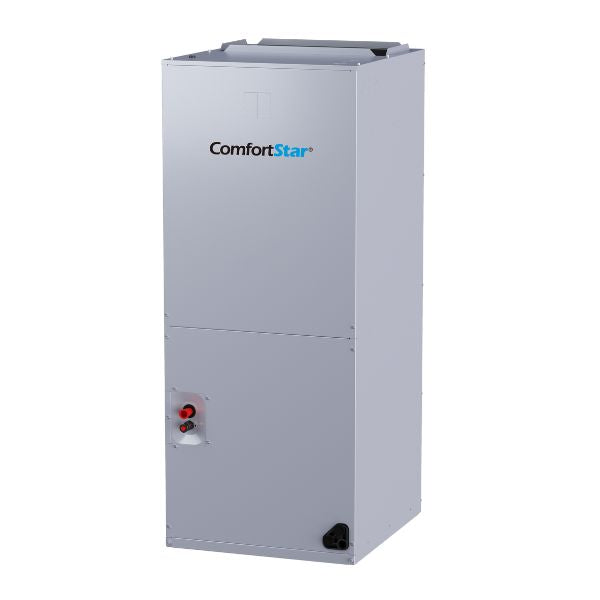

36K LCM5 MULTI-POSITION AIR HANDLER - UP TO 15.2 SEER2

36K LCM5 MULTI-POSITION AIR HANDLER - UP TO 15.2 SEER2

SKU: LCM5-36-15

PRODUCT TYPE: Air Handlers

Free Lift Gate

Expedited Shipping

System Gross Weight: 125 (lbs.)
Combination Table
View full details
Refrigerant Type: R410a
Unit Size - Inches (W x D x H): 19-5/8x21-5/8x46-1/2
Voltage: 208-230v
Air Flow - CFM (Hi / Mi / Lo): 1130/1340/1690
Tonnage: 3
dB(A) Noise Level (Hi / Mi / Lo): 51
SEER2: Up to 15.2
EER: Up to 12
Operating Mode: Cooling Only
Heat Capacity (BTU): Field Installed Heater Kits are Optional: 5/ 7.5/ 10/ 15/ 20KW
Cooling Capacity (BTU): 36000
Placement: Indoor Multi-Position Air Handler Unit
Outdoor Unit Net/Gross Weight (lbs.): 125

Features

• Factory sealed cabinet helps achieve 2% or less on leakage rate.
• Horizontal and vertical condensate pans are standard.
• Blower wheel and coil can easily slide out for easier maintenance.
• Field Installed Heater Kits are OPTIONAL: 5/ 7.5/ 10/ 15/ 20KW.
• Multi-speed, constant torque, ECM blower motor.
• 2-stage fan control.
• AHRI/ETL Certified.
• Mobile Home Certification.
