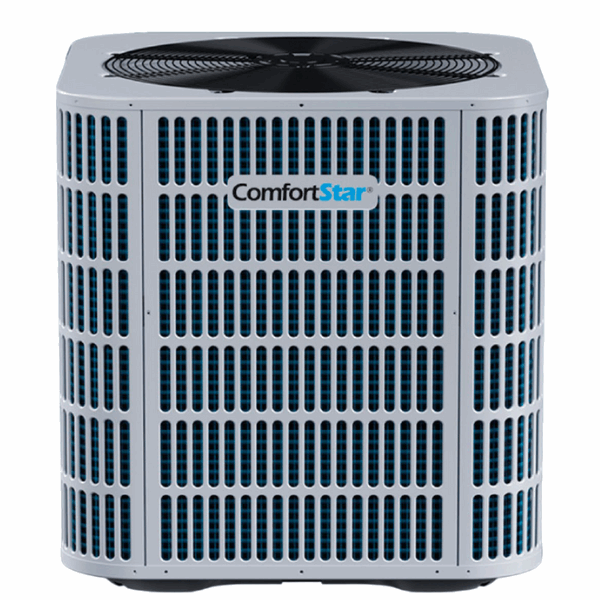

30K BAR5 SEER2 - COOLING ONLY CONDENSING UNIT - UP TO 15.2 SEER2

30K BAR5 SEER2 - COOLING ONLY CONDENSING UNIT - UP TO 15.2 SEER2

SKU: BAR5-30-15

PRODUCT TYPE: Condensing Units

Free Lift Gate

Expedited Shipping

System Gross Weight: 156 (lbs.)
Combination Table
View full details
Refrigerant Type: R410a
Unit Size - Inches (W x D x H): 28"x28"x33-3/16"
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 5100
Tonnage: 2.50
dB(A) Noise Level (Hi / Mi / Lo): 72
SEER2: Up to 15.2
EER: Up to 12
Operating Mode: Cooling Only
Heat Capacity (BTU): Cooling Only
Cooling Capacity (BTU): 30000
Placement: Outdoor Condensing Unit
Outdoor Unit Net/Gross Weight (lbs.): 156

Features

- R410A chlorine-free refrigerant.
- Energy-efficient compressor.
- Internally protection against high temperature motor overload conditions.
- High quality condenser with inner-groove copper tube and aluminum fin.
- Service valves with sweat connections and easy-access gauge ports.
- Factory-installed high pressure switch for AC and low pressure switch for HP.
- AHRI Listed & ETL Certification.
- Unique sound control top design.
- Compact design, easy installation and transportation.
- Powder-painted galvanized steel cabinet.
- Wind load compliant per Florida Building Code – 2010.
- Wire fan discharge grille.
- Steel louver coil guard.
