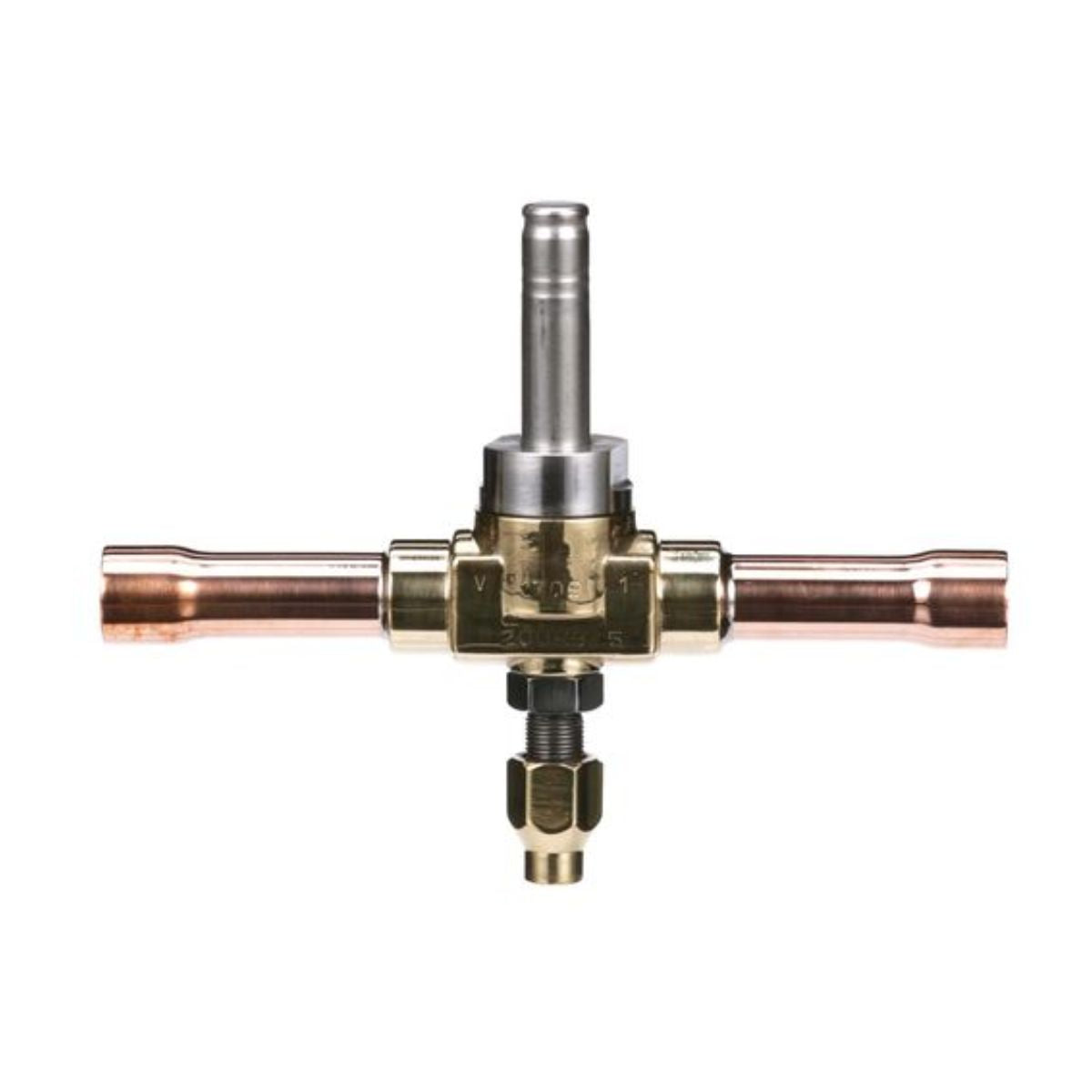

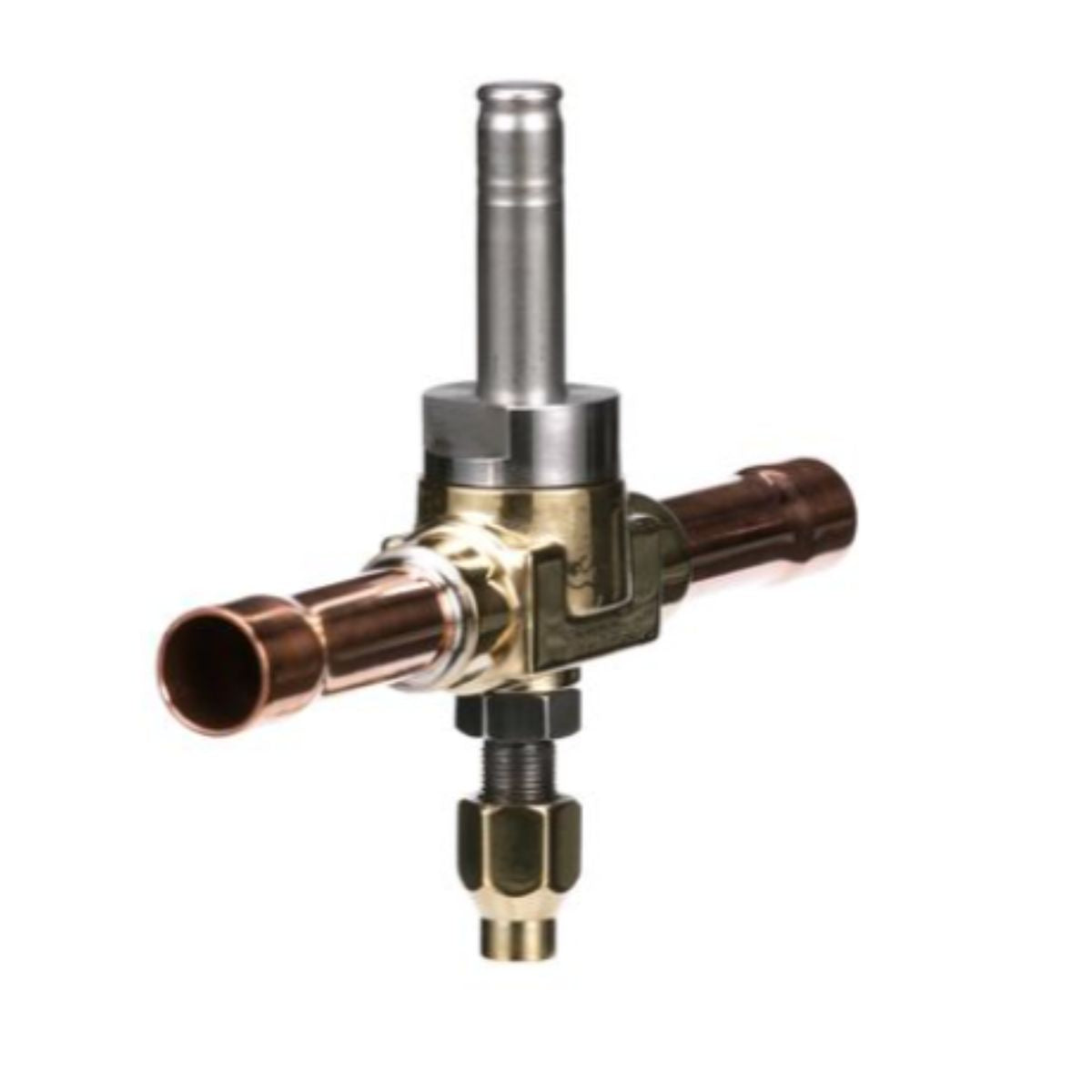

3/8" ODF 200RB 4T3VLC 2-WAY PILOT-OPERATED REFRIGERANT SOLENOID VALVE

The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.

- One coil fits all valve sizes
- Extended ends for easy installation (standard)
- Long-life molded coils
- PTFE O-ring for superior external sealing

Valve Type - Pilot Operated, 2-Way, Normally Closed
Port Size - 1/4”
Inlet Connection Size - 3/8 in. ODF Extended End
Outlet Connection Size - 3/8” ODF Extended End
Special Feature - Standard Valve
Maximum Fluid Temperature - 250°F
Maximum Working Pressure - 680 psig
Minimum Operating Pressure Drop - 2 psi
MOPD - 300 psig
Approvals - UL/CUL File Number MP604
