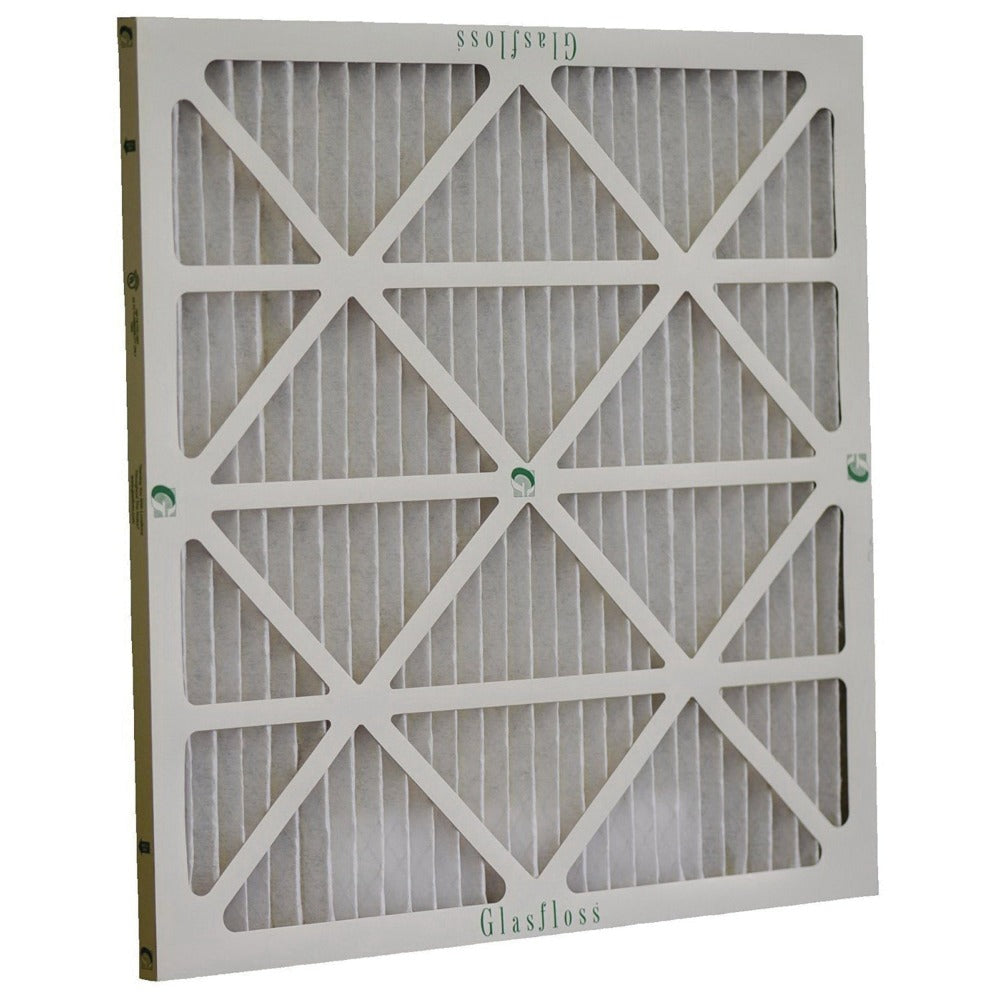

• The Glasfloss Z-Line Series pleated filters offer improved performance for virtually every application. All Glasfloss Z-Line pleated filters feature fibers which do not absorb moisture and will not support microbial growth. The Glasfloss Z-Line Series SB, ZL and HV filters achieve a MERV 8 rating and MR-11 filters achieve a MERV 11 rating per the ANSI/ASHRAE 52.2 Test Standard.
Nominal Filter Size in Inches (W x L x H) - 10 x 25 x 1
Width - 25.000000
Media Type - Synthetic
Final Resistance - 1" w.g.
Filter Rating (Microns) - Equal to or greater than 80% but less than 85% at Range 3 (3.0 to 10.0 microns) / equal to or greater than 50% but less than 65% at Range 2 (1.0 to 3.0 microns)
Filter Efficiency - 40% to 85%
Brand - Glasfloss
MERV Rating - 10
Maximum Temperature - 180°F (82.22°C)
Maximum Air Flow - 300 FPM
Initial Resistance - .21" w.g.
Frame Type - Die-Cut Beverage Board
The Glasfloss Z-Line Series pleated filters offer improved performance for virtually every application. All Glasfloss Z-Line pleated filters feature fibers which do not absorb moisture and will not support microbial growth. The Glasfloss Z-Line Series SB, ZL and HV filters achieve a MERV 8 rating and MR-11 filters achieve a MERV 11 rating per the ANSI/ASHRAE 52.2 Test Standard.
Z-LINE SERIES- SB, ZL, HV & MR-11
• • SB, ZL & HV: MERV 10 MR-11: MERV 11
• • Heavy-Duty Moisture Resistant Construction
• • Galvanized Expanded Metal Backing
• • Standard Size 4” and 6” Thick ZL, HV & MR-11 Incorporate Media Separators
• • Geothermal Unit Replacement Filters
