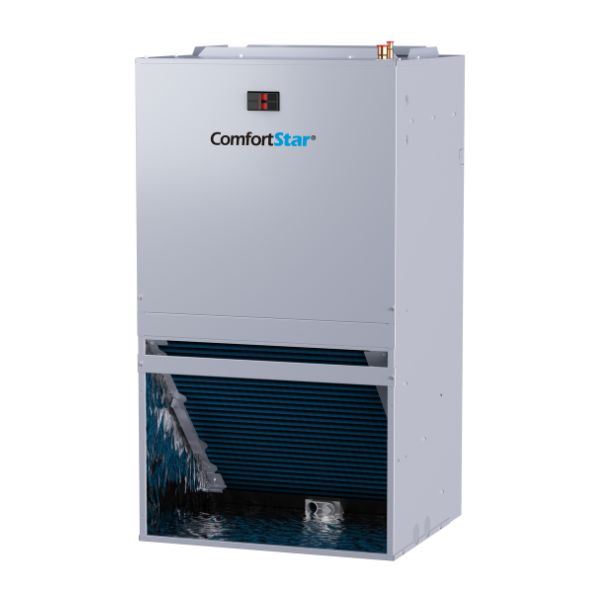

24K WALL MOUNTED CWM7 PSC AIR HANDLER - FRONT OR BOTTOM RETURN - 14.3 SEER2

SKU: CWM7-24P-15

PRODUCT TYPE: Air Handlers

Product variants

Expedited Shipping

System Gross Weight: 106 (lbs.)

Quantity

View full details

Refrigerant Type: R454B

Unit Size - Inches (W x D x H): 20-1/2×15×36-1/2

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 750

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo): 51

SEER2: 14.3

EER: 11.7

Operating Mode: Cooling Only

Heat Capacity (BTU): Electric Heat Kit for Field Installation (5kw, 8kw and 10kw)

Cooling Capacity (BTU): 24000

Placement: Indoor Wall Mount Front or Bottom Return Air Handler Unit

Features

• Direct-drive, multi-speed motors for adjusting air volume during heating or cooling.
– Multi-speed PSC motor
• Includes a thermoplastic drain pan with primary and secondary drain connections at the bottom.
• Equipped with a built-in filter rack.
• Includes a wall-hanging bracket.
• Offers the option of front or bottom return.
• Optional heating elements available in 5kW, 7.5kW, and 10kW.
• Features an all-aluminum coil.
• AHRI listed and ETL listed.
• Configured with an R454B refrigerant sensor for safe operation.
• Factory-installed R454B refrigerant sensor to provide additional room for installation.
