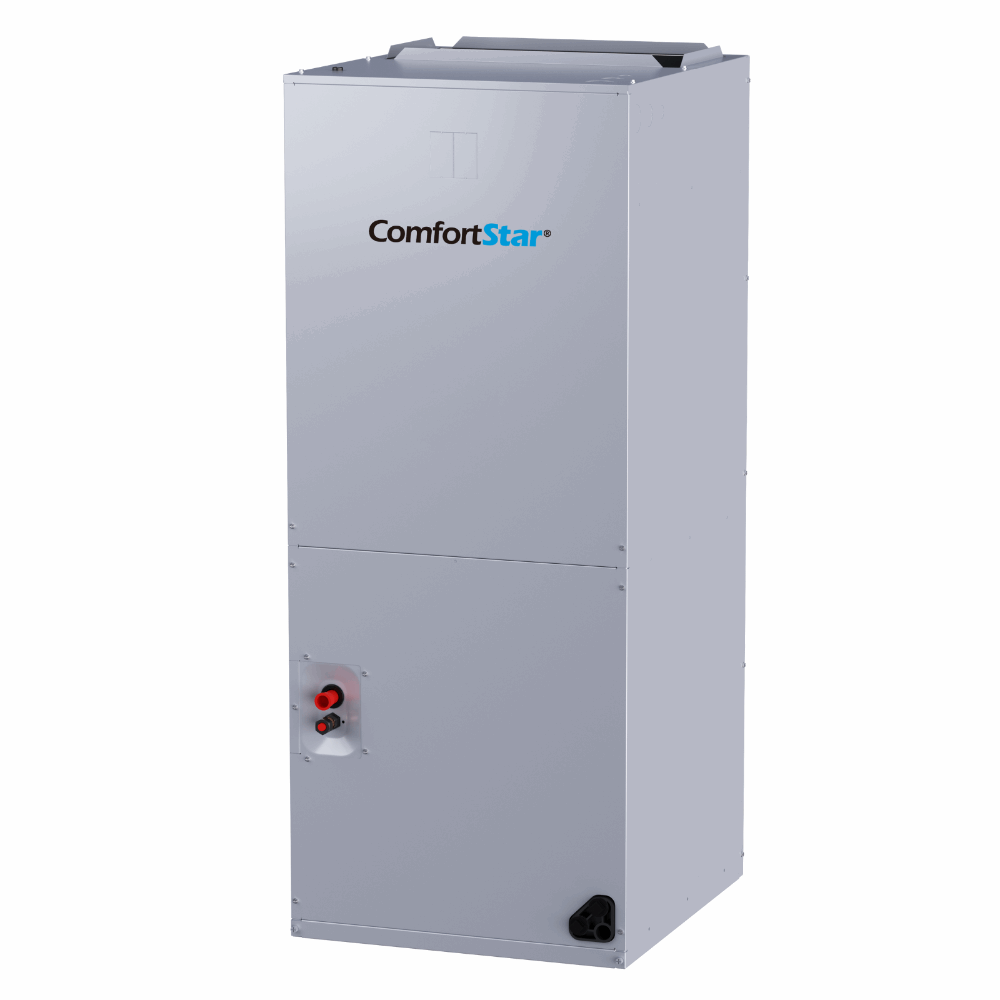

24K LUC5 SEER2 - MULTIPOSITION AIR HANDLER - UP TO 14.3 SEER2
24K LUC5 SEER2 - MULTIPOSITION AIR HANDLER - UP TO 14.3 SEER2
SKU: LUC5-24-15
PRODUCT TYPE: Air Handlers
Refrigerant Type:
R410a
Unit Size - Inches (W x D x H):
19-5/8"x21-5/8"x46-1/2"
Voltage:
208-230V
Air Flow - CFM (Hi / Mi / Lo):
1040/1270/1680
Tonnage:
1.93
dB(A) Noise Level (Hi / Mi / Lo):
50/48/44
SEER2:
Up to 14.3
EER:
Up to 11.7
Operating Mode:
Cooling Only
Heat Capacity (BTU):
Optional Field Installed Heat Kits Available From 5k To 20kw
Cooling Capacity (BTU):
23200
Placement:
Indoor Air Handler Unit
Outdoor Unit Net/Gross Weight (lbs.):
128
Features
Features
• Factory sealed cabinet helps achieve 2% or less on leakage rate.
• Horizontal and vertical condensate pans are standard.
• Blower wheel and coil can easily slide out for easier maintenance.
• Field Installed Heater Kits are OPTIONAL: 5/ 7.5/ 10/ 15/ 20KW.
• Factory Installed Piston for metering.
• 2-stage fan control.
• AHRI/ETL Certified.
• Mobile Home Certification.
Free Lift Gate
*This product qualifies for Free Lift Gate Service. Items over 100lbs normally ship via semi-truck. Select this service if you need the product lowered to the ground curbside.LUC5 COMBINATIONS
