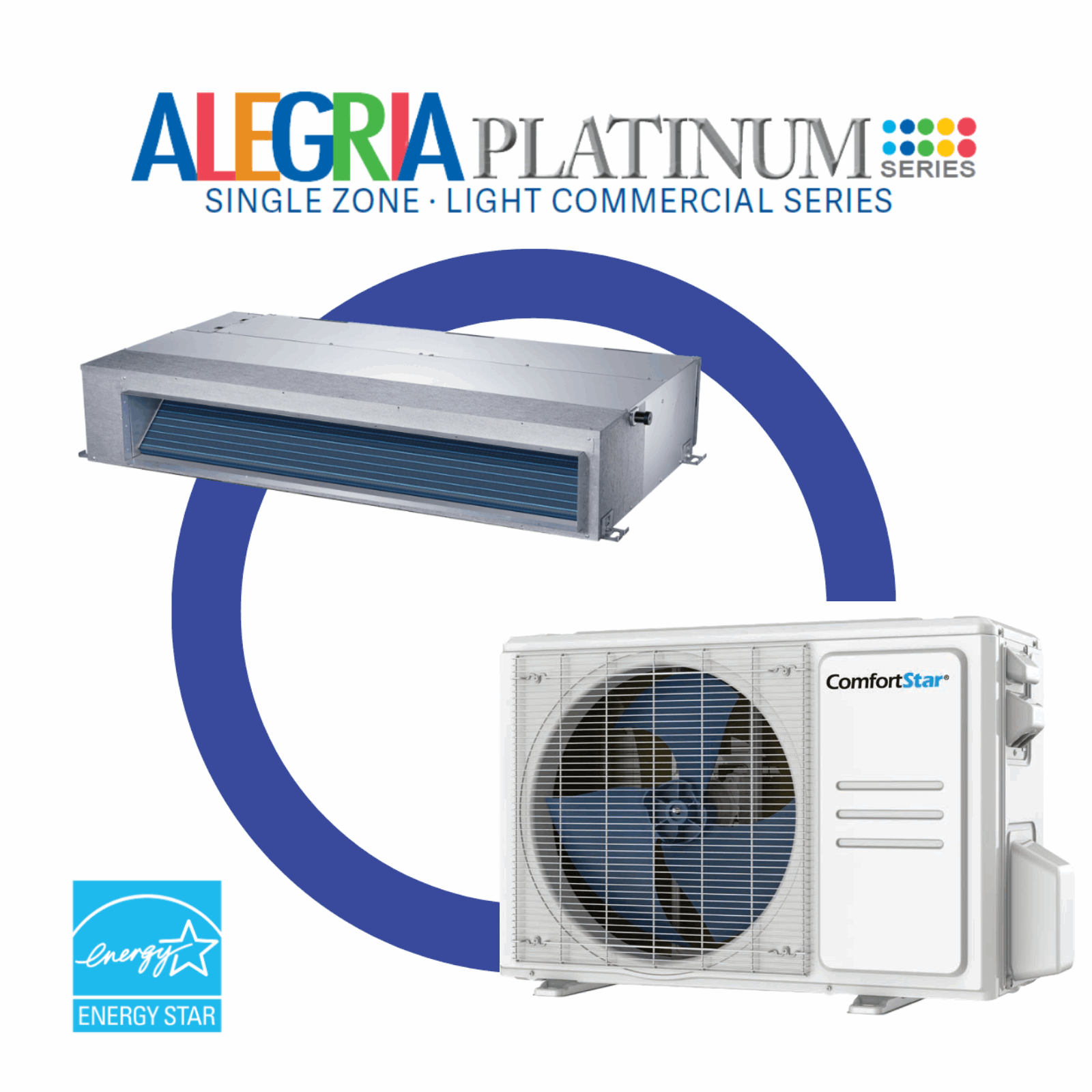

24K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FAN COIL SYSTEM – 19 SEER2

COMFORTSTAR

24K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FAN COIL SYSTEM – 19 SEER2

SKU: CZPCD-CPAB-24

BARCODE: CZP24CD(O) + CPA-24B

PRODUCT TYPE: Fan Coils

Product variants

Expedited Shipping

System Gross Weight: 237.92 (lbs.)

Quantity

Service Manual

CPA – Service Manual

Owners Manual & Installation Manual

CPA – Owners & Installation Manual

CPA + CZP System Submittal

CPA-24B-CZP24CD(O)

View full details

Refrigerant Type: R410a

SEER2: 19

EER2: 12.5

HSPF2-4: 11.2

HSPF2-5: 8.8

Max. Allowable Piping Length (ft): 164

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 82

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 3/8"- 5/8"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 87/103

Outdoor Unit Net/Gross Weight (lbs.): 124.78/134.92

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Fan Coil
• Compact Design
• Quiet Operation
• Wired Control (standard)
• Available Fresh Air Intake

Specifications

Unit Size - Inches (W x D x H):

Indoor - 43x30x10
Outdoor - 37.24x16.14x31.89

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 775.47/693.06/434.88
Outdoor - 2235.3

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 44/41/37
Outdoor - 60

Heat Capacity (BTU): 20000

Cooling Capacity (BTU): 17000

Placement: Light Commercial Applications

Breaker Size (A): 18

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.32

Drain Pipe Size (in): 3/4"
