HF/HFK SERIES THERMAL EXPANSION VALVE HF/HFK SERIES THERMAL EXPANSION VALVE HF/HFK SERIES THERMAL EXPANSION VALVE HF/HFK SERIES THERMAL EXPANSION VALVE
HF/HFK SERIES THERMAL EXPANSION VALVE HF/HFK SERIES THERMAL EXPANSION VALVE

EMERSON

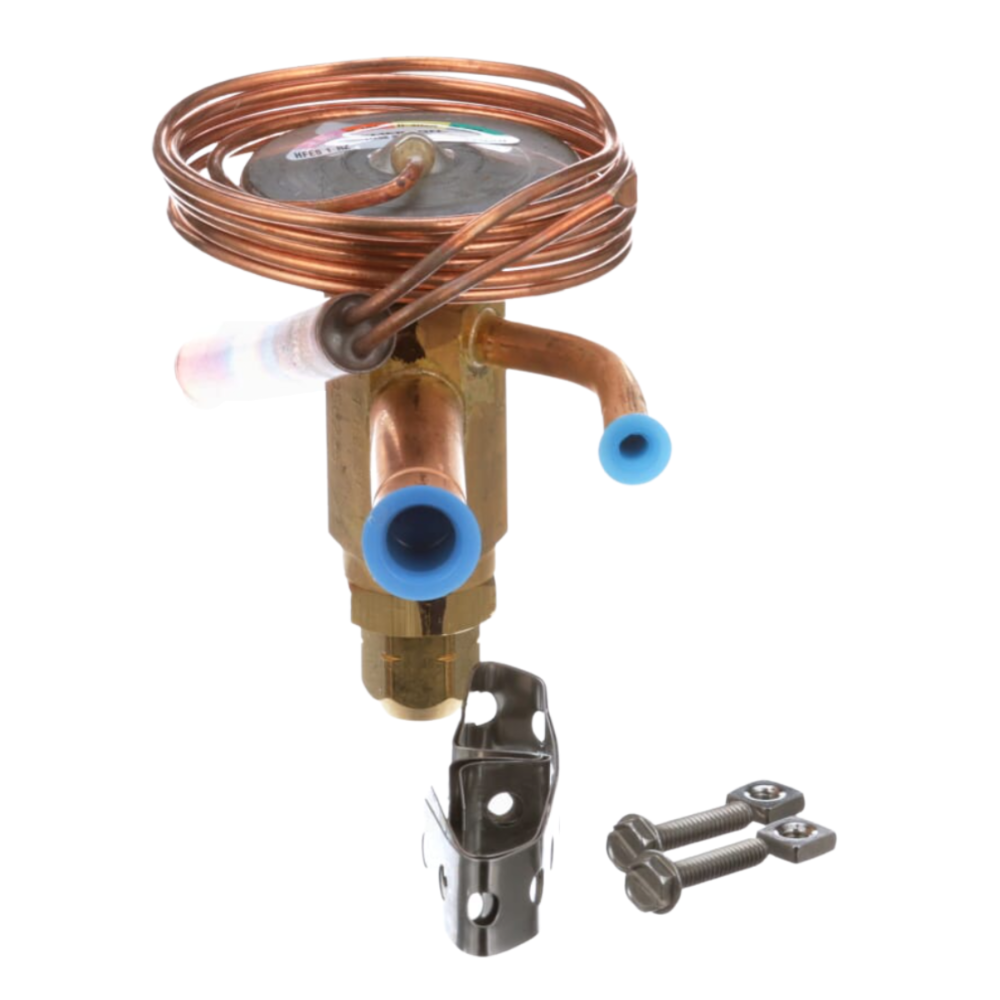

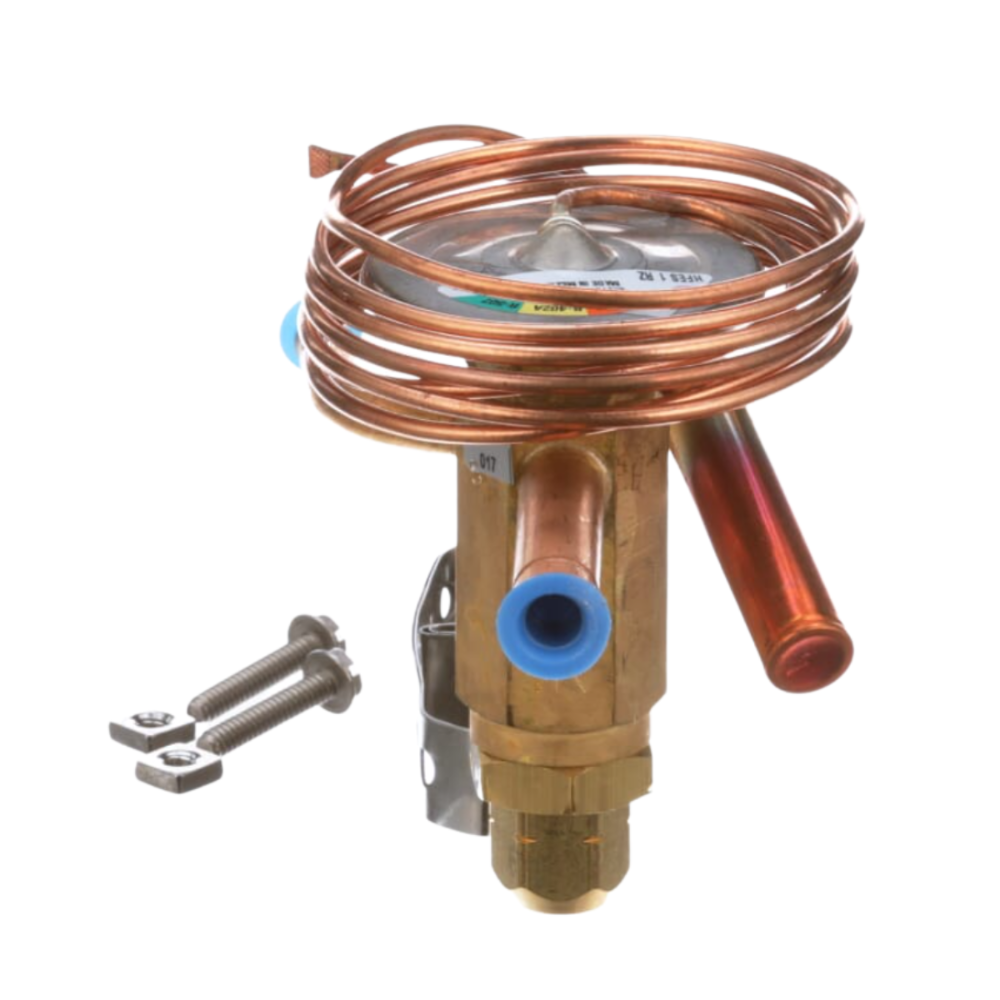

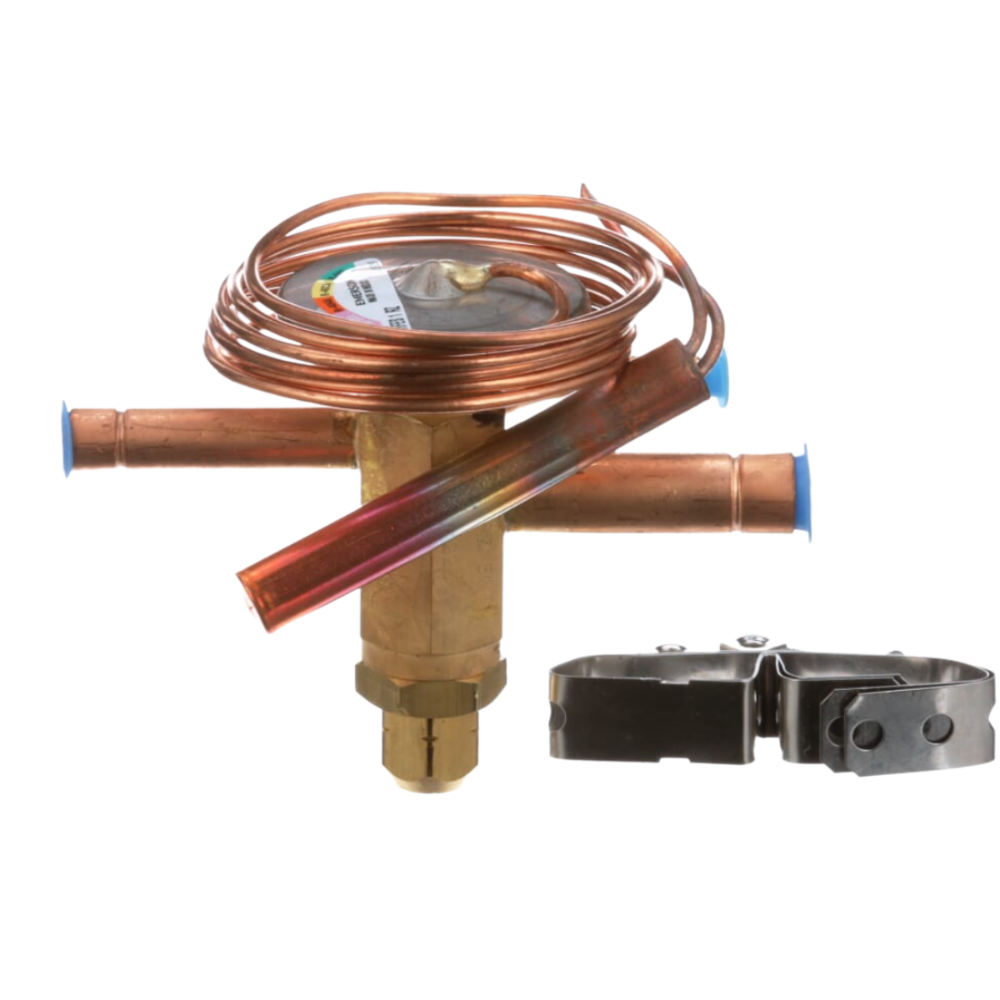

20TONS - 7/8" X 1-1/8" ODF HF/HFK SERIES THERMAL EXPANSION VALVE

20TONS - 7/8" X 1-1/8" ODF HF/HFK SERIES THERMAL EXPANSION VALVE

SKU: 062055

PRODUCT TYPE: Thermostatic Expansion Valves

Expedited Shipping

SYSTEM REFRIGERANT CODE

CAPACITY (NOMINAL TONNAGE)

CHARGE CODE

INLET X OUTLET CONNECTION

EQUALIZER

BLEED

CAP LENGTH

BODY DESIGN

STRAINER

MODEL NUMBER

ITEM NUMBER

H (R-22)*R-407C



20

C (Med. Temp.)

7/8" X 1-1/8" ODF



External

No

5 Ft.

Straight Thru

No

HFES 20HC-01



062055

H (R-22)*R-407C



15

C (Med. Temp.)

7/8" X 1-1/8" ODF

External

No

5 Ft.

Straight Thru

No

HFES 15HC-02

057318

H (R-22)*R-407C



10

C (Med. Temp.)

5/8" X 7/8" ODF

External

No

5 Ft.

Straight Thru

No

HFES 10HC-01

057256
View full details

Features & Specifications

The HF series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.

• Stainless steel replaceable power element eliminates corrosion and prevents valve failure
• Two body sizes provide capacities from 1/4 to 20 tons Standard Body – HF & HFK

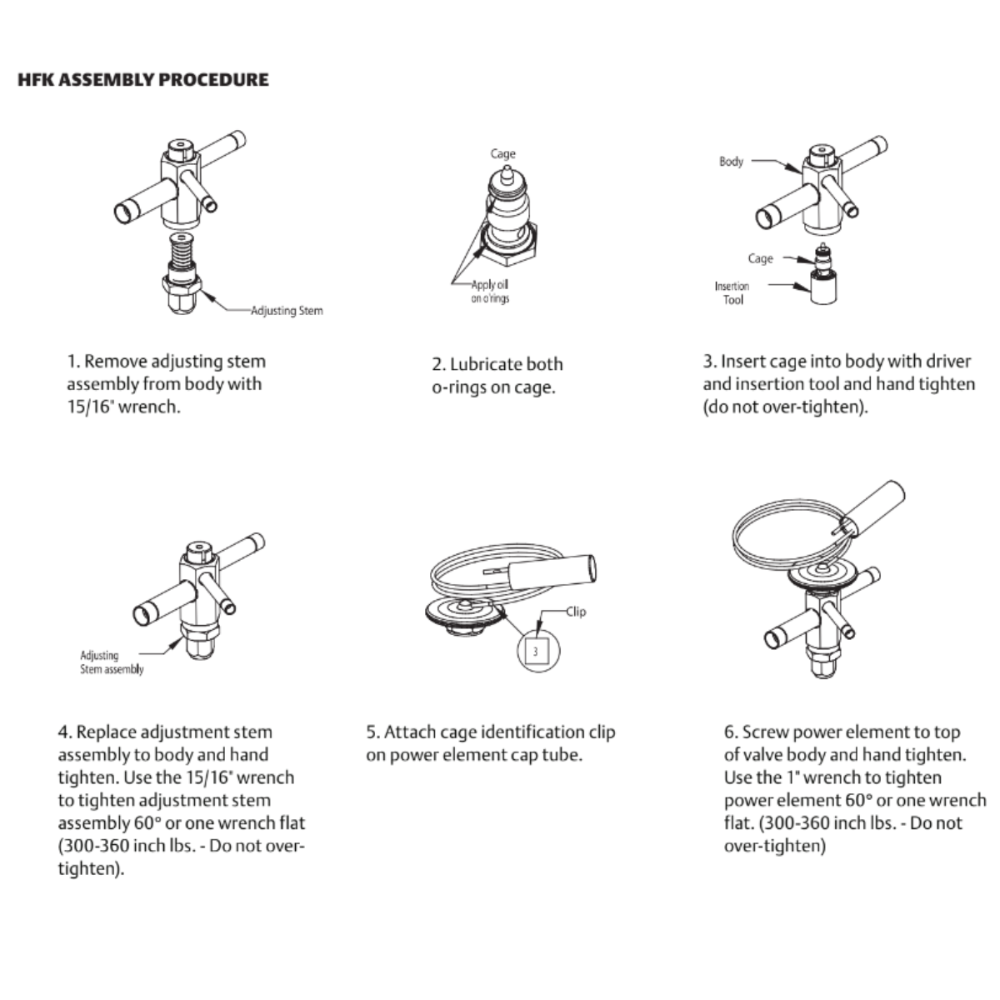

• The HF is offered several ways:– Pre-packaged HFK service kits – Include a mix of bodies and power elements with a complete set of cages to serve the most applications with a minimum of parts– Individual components – Bodies, cages, & power elements may be ordered separately– Finished valves – Assembled valves ready for immediate installation
• Bi-Flow capability up to 5-1/2 tons R-22 allows one valve to control the superheat in both cooling and heating modes Extended Body – HF • Capacity range from 8 to 20 tons (R-22) • Finished valve only
