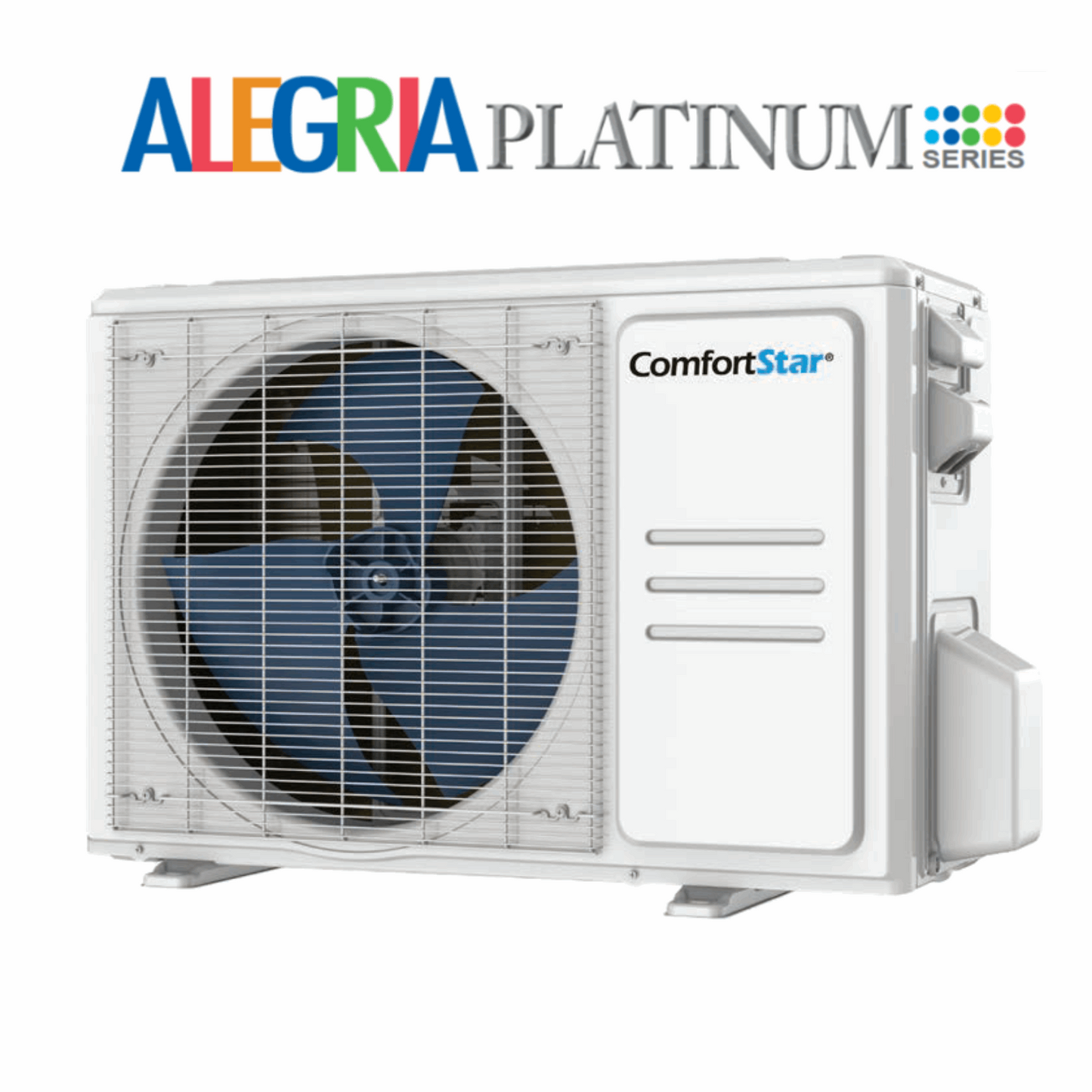

18K DUAL ZONE CONDENSING UNIT - DUCTLESS SYSTEM 22.9 SEER2

18K DUAL ZONE CONDENSING UNIT - DUCTLESS SYSTEM 22.9 SEER2

18K DUAL ZONE CONDENSING UNIT - DUCTLESS SYSTEM 22.9 SEER2

18K DUAL ZONE CONDENSING UNIT - DUCTLESS SYSTEM 22.9 SEER2

7 Year Compressor Warranty

7 Year Parts Warranty

18K DUAL ZONE CONDENSING UNIT - DUCTLESS SYSTEM 22.9 SEER2

18K DUAL ZONE CONDENSING UNIT - DUCTLESS SYSTEM 22.9 SEER2

SKU: CMZ-18-2Z

PRODUCT TYPE: Multizone Condensing Units

Product variants

Expedited Shipping

System Gross Weight: 108.69 (lbs.)

Quantity

View full details

Refrigerant Type: R410a

SEER2: 22.9

EER2: 13.9

HSPF2-4: 10.5

HSPF2-5: 8.0

Max. Allowable Piping Length (ft): 66 for 1 IDU 98 for sum up

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 33 for ODU higher than IDU, 49 for ODU lower than IDU, 33 between IDU and IDU

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: (1/4"-3/8")*2

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Outdoor Unit Net/Gross Weight (lbs.): 100.31/108.69

Features

Flex-mount Multi-zone Heat Pump Outdoor Units 9,000 - 12,000 Btu/h.
• Low Ambient (-13°F) • Inverter Technology • Factory Pre-Charge (25 ft.) • Self-Diagnostics • Mix and Match With Light Commercial Indoor Units And High-Wall Mounts
• Simple installation. • Individual Zone Control

Available Indoor Units:
- High Wall Mount
- Cassette

Specifications

Unit Size - Inches (W x D x H): 35.04x13.46x26.50

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 1764.71

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo): 58.5

Heat Capacity (BTU): 19000

Cooling Capacity (BTU): 18000

Placement: Dual Zone Outdoor Unit

Breaker Size (A): 25.0

Factory Refrigerant Charge (ft): 25*2

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): refer IDU
