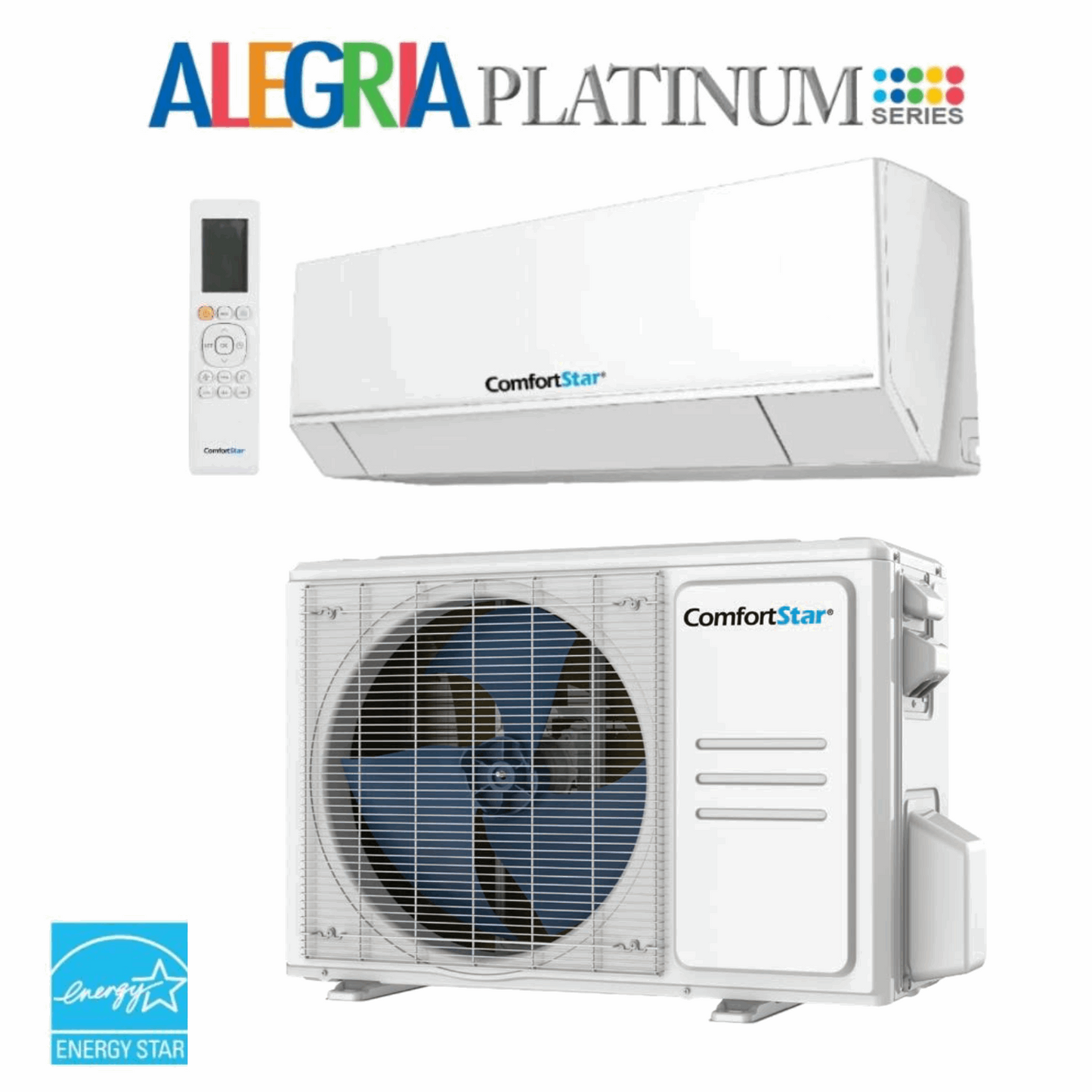

18K COOLING + HEATING - 208/230V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 23.5 SEER2

COMFORTSTAR

18K COOLING + HEATING - 208/230V ENERGY STAR WALL MOUNTED – MINI-SPLIT SYSTEM – 23.5 SEER2

SKU: CZPCD-CHF-18

BARCODE: CZP18CD(O) + CHF18CD(I)

PRODUCT TYPE: Highwall Units

Product variants

Expedited Shipping

System Gross Weight: 139.33 (lbs.)

Quantity

CHF + CZP System Submittal

CHF18CD(I)-CZPCD(O)

View full details

Refrigerant Type: R410a

SEER2: 23.5

EER2: 12.5

HSPF2-4: 9.4

HSPF2-5: 7

Max. Allowable Piping Length (ft): 98

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 66

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 1/2"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 28.66/37.48

Outdoor Unit Net/Gross Weight (lbs.): 95.02/101.85

Features

-13°F Low Outdoor Ambient Operating
• Wi-Fi Compatible (optional)
• Auto Swing
• Auto Defrost
• 12-Speed Indoor Fan
• Emergency Mode
• Anti-Cold Air Function
• Bypass Mode
• Mute Operation
• Refrigerant Leak Detection
• Error Code
• Manual Power Switch
• Interactive display
• Self-Diagnosis
• 3-Directional Airflow
• 2-Way Draining
• Optional Wired Control

Specifications

Unit Size - Inches (W x D x H):

Indoor - 37.99x9.41x12.56
Outdoor - 37.99x9.41x12.56

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 523.53/376.47/305.88
Outdoor - 1765

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 46.5/43/32.5
Outdoor - 58

Heat Capacity (BTU): 19000

Cooling Capacity (BTU): 18000

Placement: Residential and Commercial Applications

Breaker Size (A): 20

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
