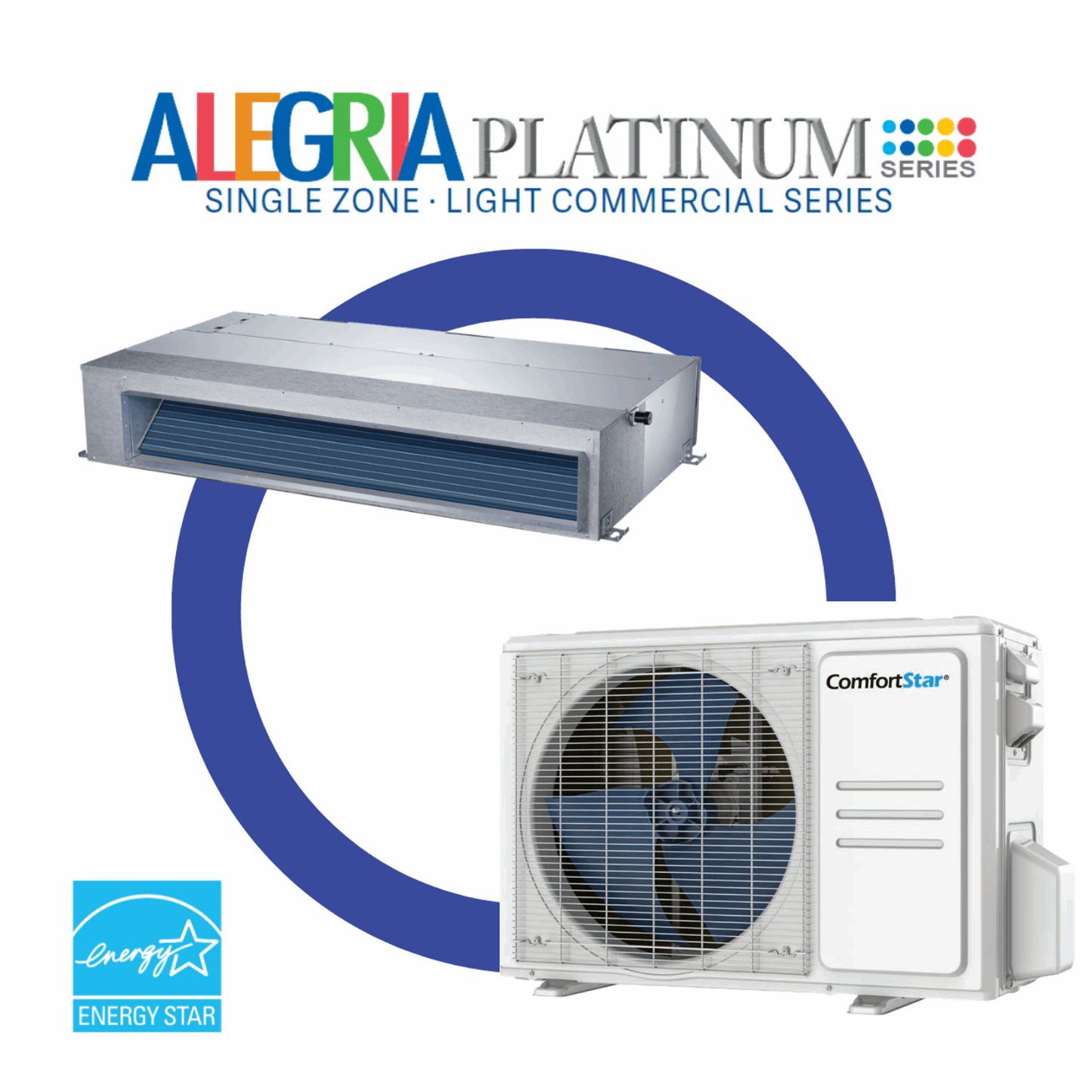

18K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FAN COIL SYSTEM – 20 SEER2

COMFORTSTAR

18K COOLING + HEATING - 208/230V ENERGY STAR LIGHT COMMERCIAL FAN COIL SYSTEM – 20 SEER2

SKU: CZPCD-CPAB-18

BARCODE: CZP18CD(O) + CPA-18B

PRODUCT TYPE: Fan Coils

Product variants

Expedited Shipping

System Gross Weight: 167.85 (lbs.)

Quantity

Service Manual

CPA – Service Manual

Owners Manual & Installation Manual

CPA – Owners & Installation Manual

CPA + CZP System Submittal

CPA-18B-CZP18CD(O)

View full details

Refrigerant Type: R410a

SEER2: 20

EER2: 12.5

HSPF2-4: 10.6

HSPF2-5: 8.2

Max. Allowable Piping Length (ft): 98

Min. Allowable Piping Length (ft): 9.8

Max. Allowable Elevation Differences (ft): 66

Min. Power Supply Wire Size (AWG): 12*3

Min. Inter-Connecting Wire Size (AWG): 16*4, Stranded

Piping Size: 1/4"- 1/2"

Operating Mode: Heating and Cooling

Outdoor Ambient Temperature: -13°F

Indoor Unit Net/Gross Weight (lbs.): 54/66

Outdoor Unit Net/Gross Weight (lbs.): 95.02/101.85

Features

-13°F Low Outdoor Ambient Operating Temperature for both Heating and Cooling.

Indoor Fan Coil
• Compact Design
• Quiet Operation
• Wired Control (standard)
• Available Fresh Air Intake

Specifications

Unit Size - Inches (W x D x H):

Indoor - 34.65x28.53x8.27
Outdoor - 35.04x13.46x26.50

Voltage: 208/230V

Air Flow - CFM (Hi / Mi / Lo):

Indoor - 529.41/450.00/370.59
Outdoor - 1764.7

Tonnage: 1.5

dB(A) Noise Level (Hi / Mi / Lo):

Indoor - 40/37.5/35
Outdoor - 58

Heat Capacity (BTU): 20000

Cooling Capacity (BTU): 17000

Placement: Light Commercial Applications

Breaker Size (A): 15

Factory Refrigerant Charge (ft): 25

Refrigerant Adjustment Factor (oz. per ft): 0.16

Drain Pipe Size (in): 3/4"
