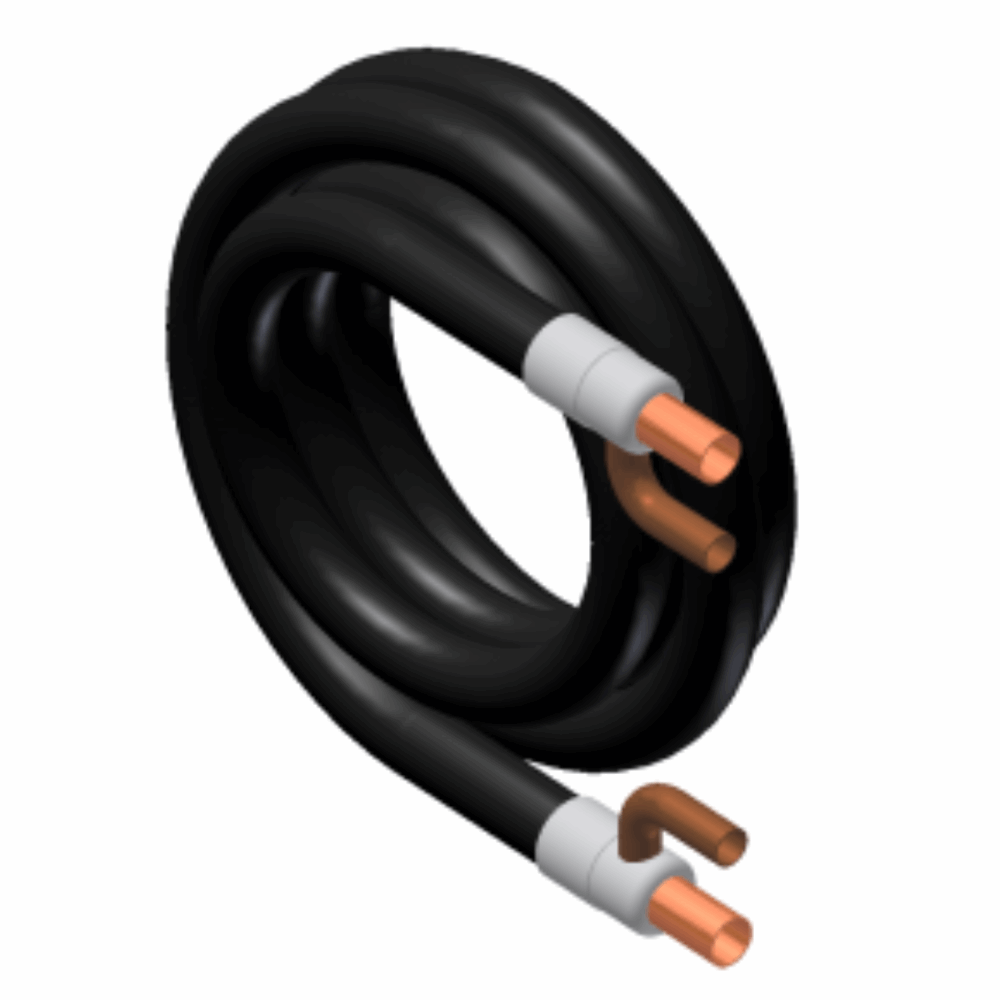

1.5 TON WATER COOLED CONDENSER COIL

The Packless COCX-2150-S coil is designed for 1 1⁄2 ton systems. Packless condenser and water-source heat pump coils provide efficient heat transfer while minimizing fouling. This coil is a part of our classic product line.

Model COCX-2150-S
Capacity 1 1⁄2 ton
Outer Shell Carbon Steel
Inner Tube 90/10 Cupronickel
Overall Length 13 7⁄8 in
Overall Width 11 3⁄8 in
Overall Height 2 3⁄8 in

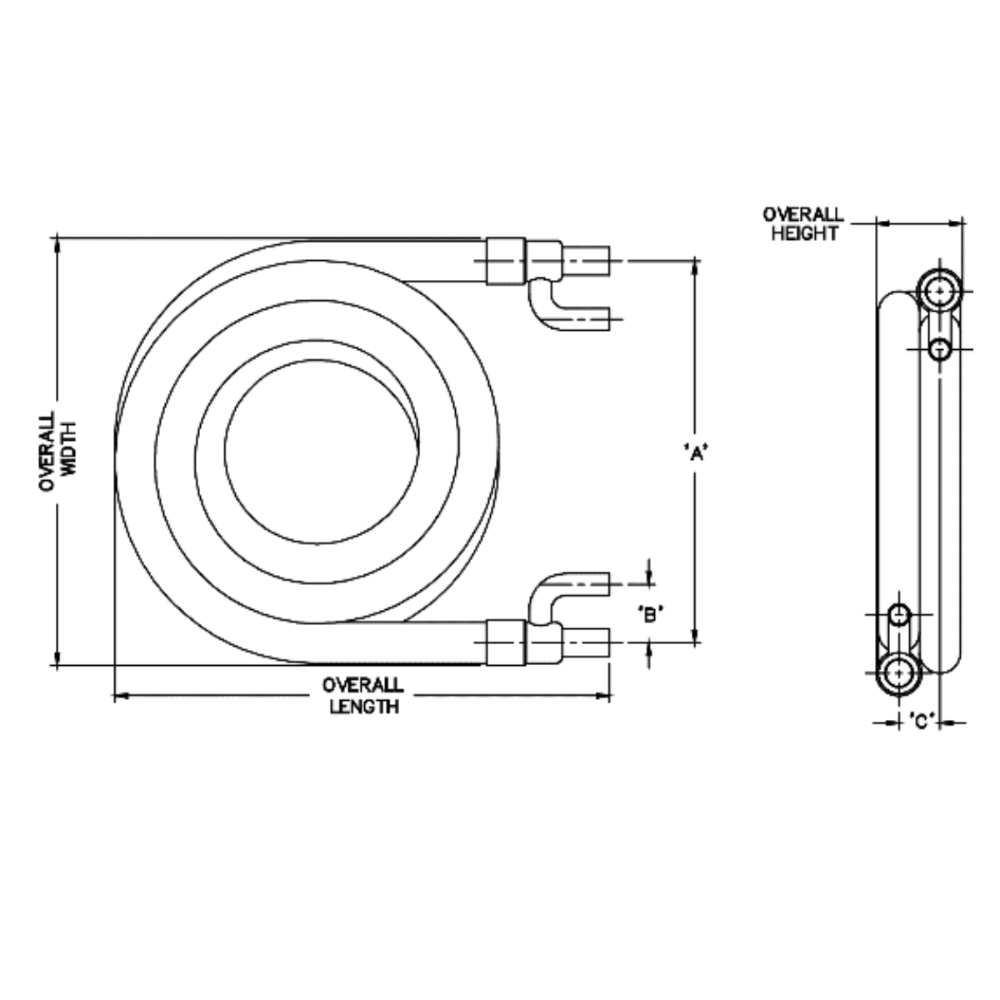

Dimension A (See Drawing) 10 1⁄4 in
Dimension B (See Drawing) 2 in
Dimension C (See Drawing) 1 1⁄8 in
Refrigerant Inlet Connection 3⁄8 in (ID)
Refrigerant Outlet Connection 3⁄8 in (ID)
Water Inlet Connection 5⁄8 in (OD)
Water Outlet Connection 5⁄8 in (OD)
Maximum Refrigerant
Working Pressure 650 psig
Maximum Water
Working Pressure 500 psig
