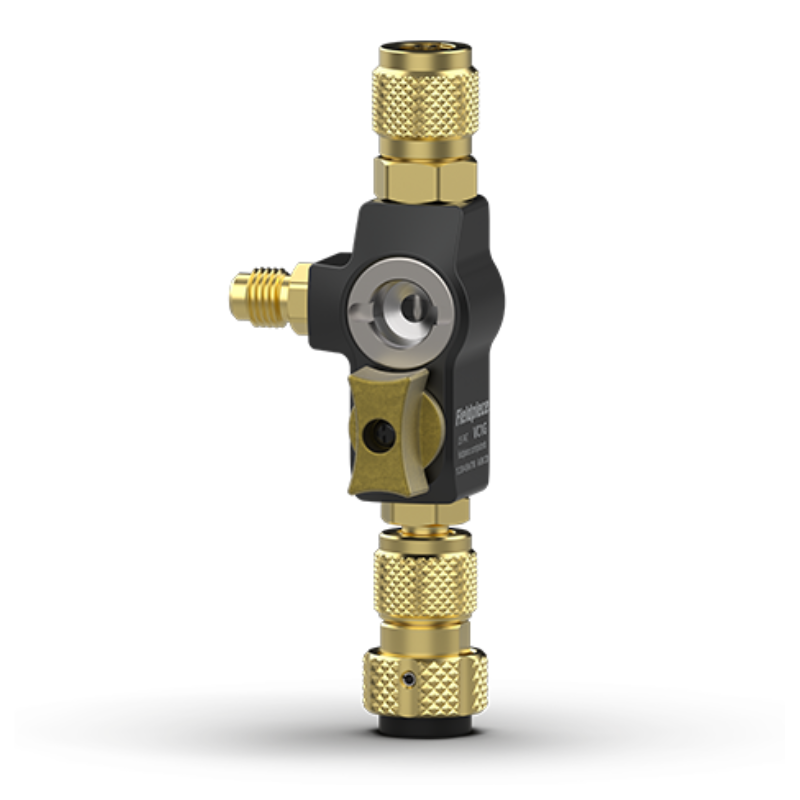

1/4″ VALVE CORE REMOVAL TOOL W/ SIGHT GLASS - A2L COMPATIBLE

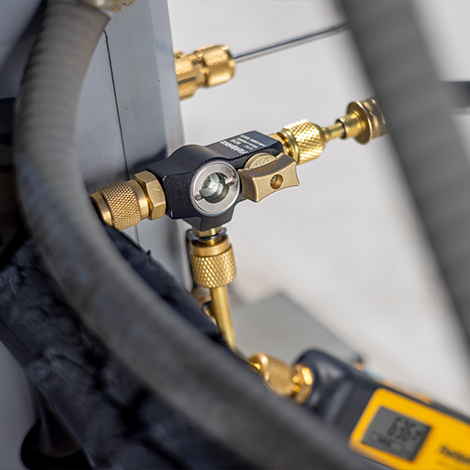

Because seeing is believing, the VC1G has an integrated sight glass so you visually verify the valve core is engaged before removing it, as well as confirm refrigerant is flowing. The capture rod reliably engages the valve core, the first time, every time – no more fishing around for lost valve cores.

Swap 1/4” standard service port fitting with optional 5/16” fitting for mini-splits
Lock in the valve core in one try – a gasket secures the valve core pin
Easier removal and insertion against pressure with a comfort spinner – a free-spinning, rubberized, magnetic cap
Vacuum-rated to 20 microns
A2L Compatible

Specifications
1/4″ Female service port fitting standard, 5/16” fitting optional
1/4” Male side port with removable valve core
Vacuum rating: 20 microns / 0.027 millibar / 0.020 Torr
Maximum working pressure: 800 psi / 55 Bar
Dimensions: 5.06” x 2” x 1.5”
Weight: 0.71 lbs / 322 g
US Patent: www.fieldpiece.com/patents
