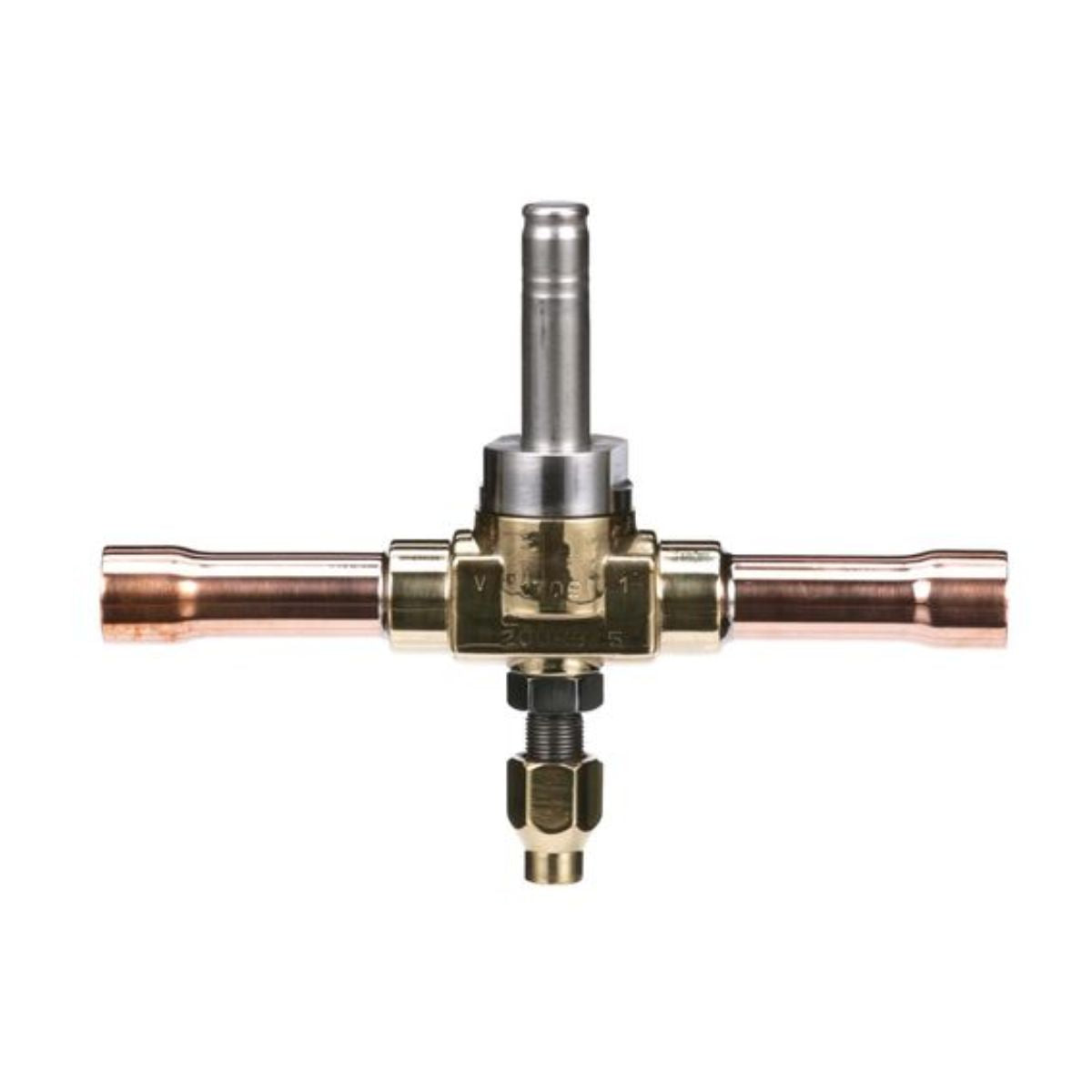

1/2" ODF 200RD PILOT-OPERATED 2-WAY NORMALLY CLOSED SOLENOID VALVE

The 200RD is a pilot-operated, 2-way, normally closed, solenoid valve that is suitable for all refrigerants, including R-410A and R-744. 200RD valves are used for liquid, discharge, or suction gas refrigerant service.

• One coil fits all valve sizes.

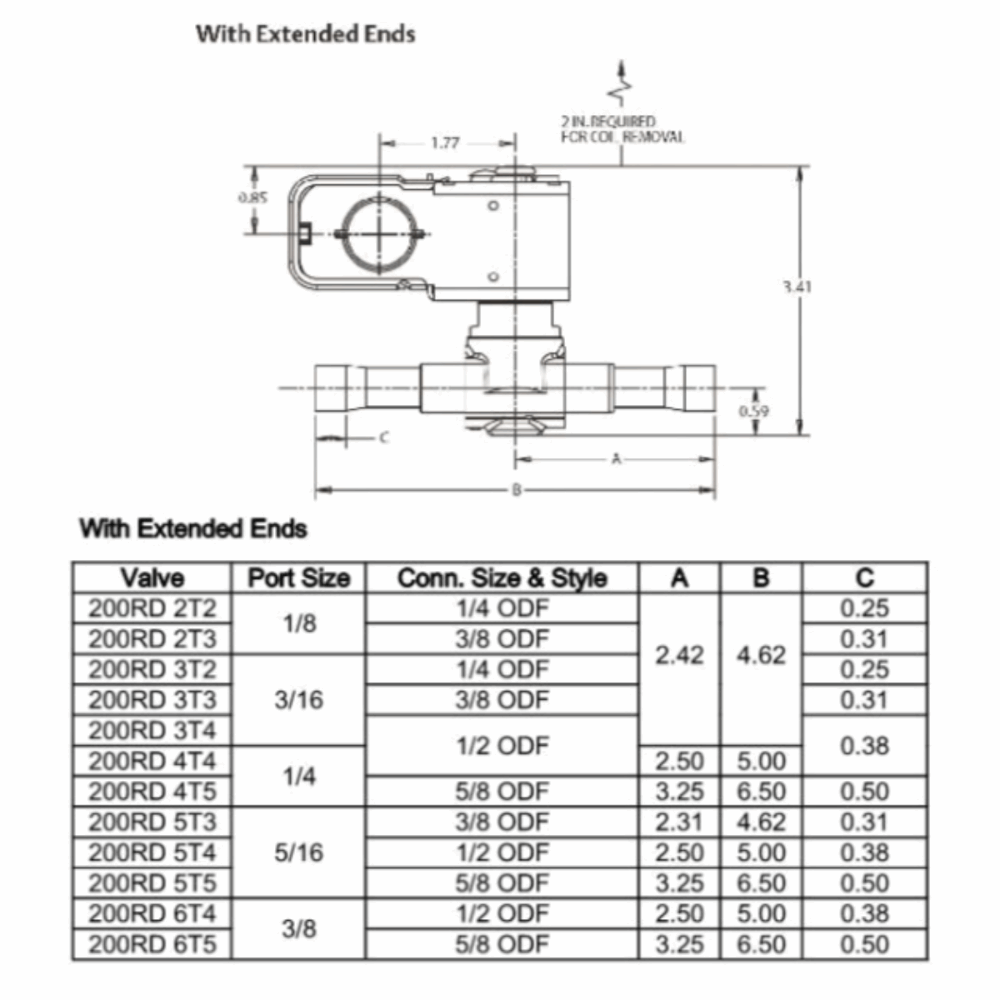

• Extended ends for easy installation (standard).
• Long-life molded coils.
• PTFE O-ring for superior external sealing.

Available in 7 orifice sizes
• Manual stem or mounting stud.
• Bi-Flow operation-conversion either factory assembled or with kit except 200RD7 and 200RD9.

• Maximum fluid temperature: 250°F.
• Maximum working pressure: 680 psig.
• Minimum operating pressure drop: 2 psi.
• MOPD: 550 psig.
• UL/CUL file number: MP604

NOTE: Mounting enclosing tube more than 90o off vertical up position is not recommended.

NOTE: MOPD based on AC application. Consult application engineer for DC application.
