CONEXIÓN HEMBRA DE 5/16" X MACHO DE 1/4" 90 GRADOS
CONEXIÓN HEMBRA DE 5/16" X MACHO DE 1/4" 90 GRADOS
SKU: TYPE17-1
PRODUCT TYPE: Welding Tips
Features & Specifications
Features & Specifications

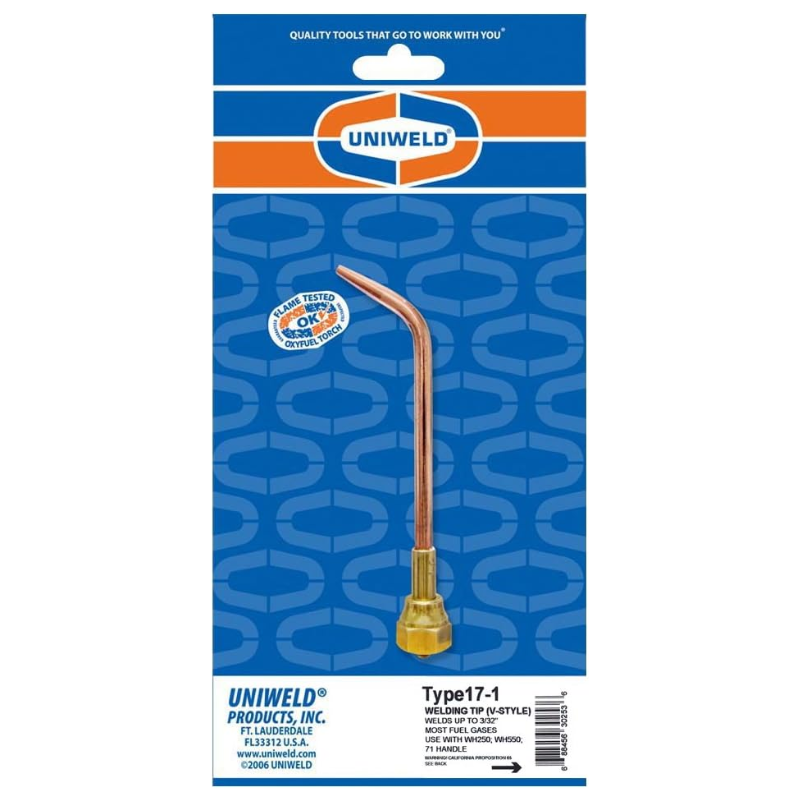

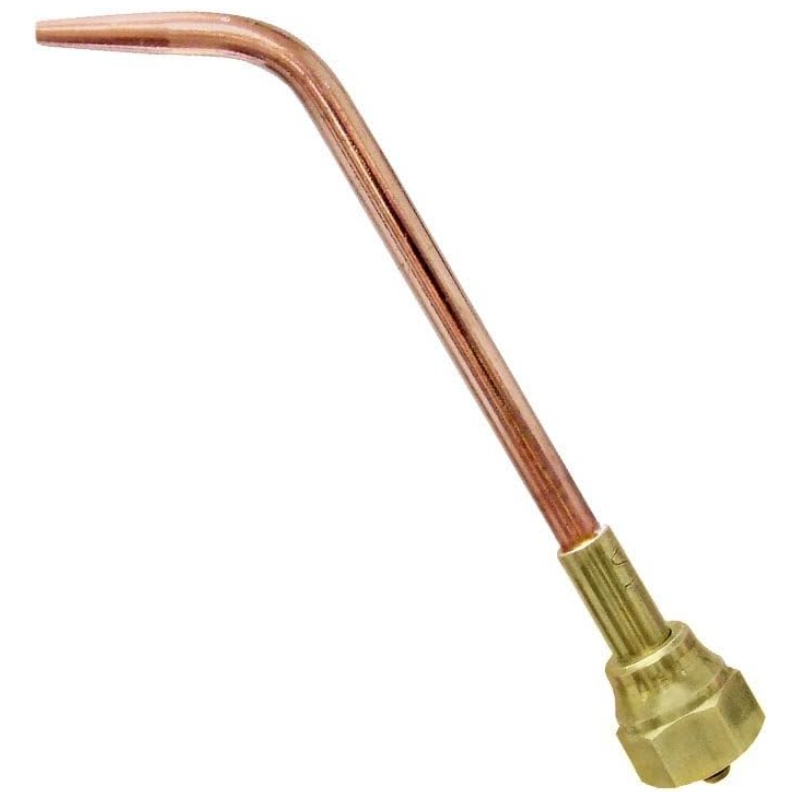

Uniweld Type17-1 weld/braze tip can be used with acetylene, propane, MAP//Pro, and natural gas. Capable of welding 3/32" of metal, and brazing 3/4" of copper. Tip elbow is copper, mixer and nut are brass. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.
-Proudly Made in the USA and 100% Flame Tested
-Can be used with acetylene, propane, MAP//Pro, and natural gas

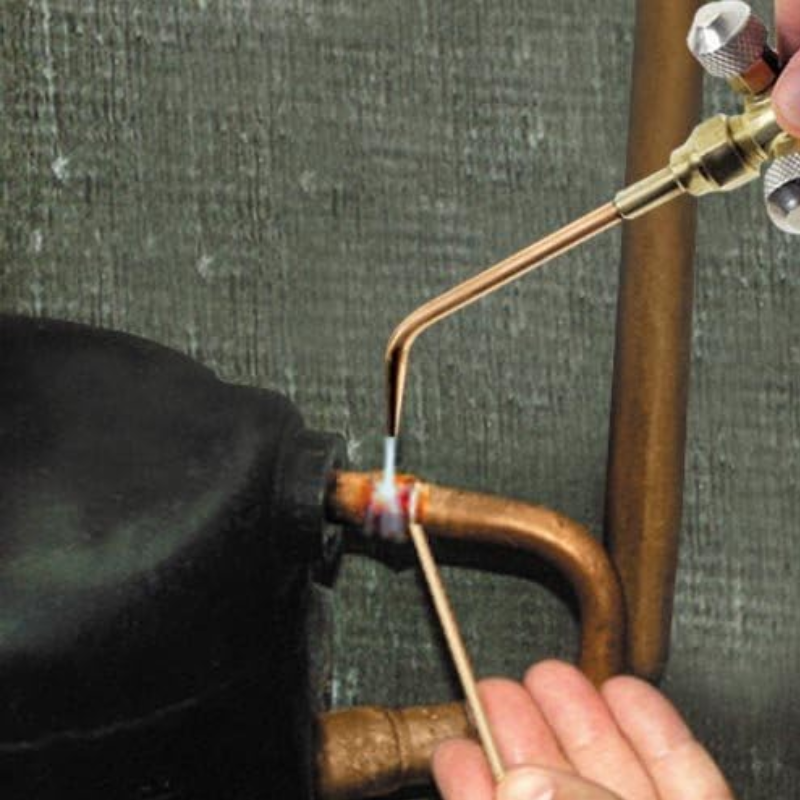

-Capable of welding 3/32in of metal and brazing 3/4in of copper
-Fits the 71 handle or the WH550 handle
-Tip nut only requires hand tightening allowing for quick and easy changing of tips
Specifications
Par t# TYPE17-1
Elbow/Mixer Thread Spec: 1/4”-27 (M,F)
Weld Metal Thickness: 3/64”-3/32”
Oxygen PSIG: 5
Acetylene PSIG: 5
Acetylene SCFH: 6
