UNIWELD

CONEXIÓN HEMBRA DE 5/16" X MACHO DE 1/4" 90 GRADOS

CONEXIÓN HEMBRA DE 5/16" X MACHO DE 1/4" 90 GRADOS

SKU: TYPE17-0

PRODUCT TYPE: Welding Tips

Expedited Shipping

Ver todos los detalles

Features & Specifications

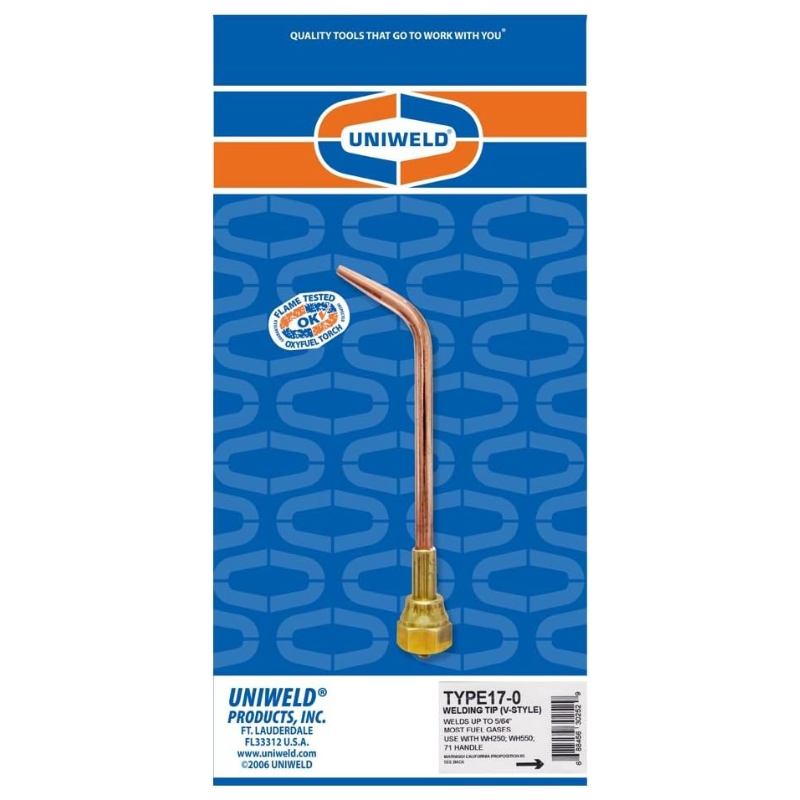

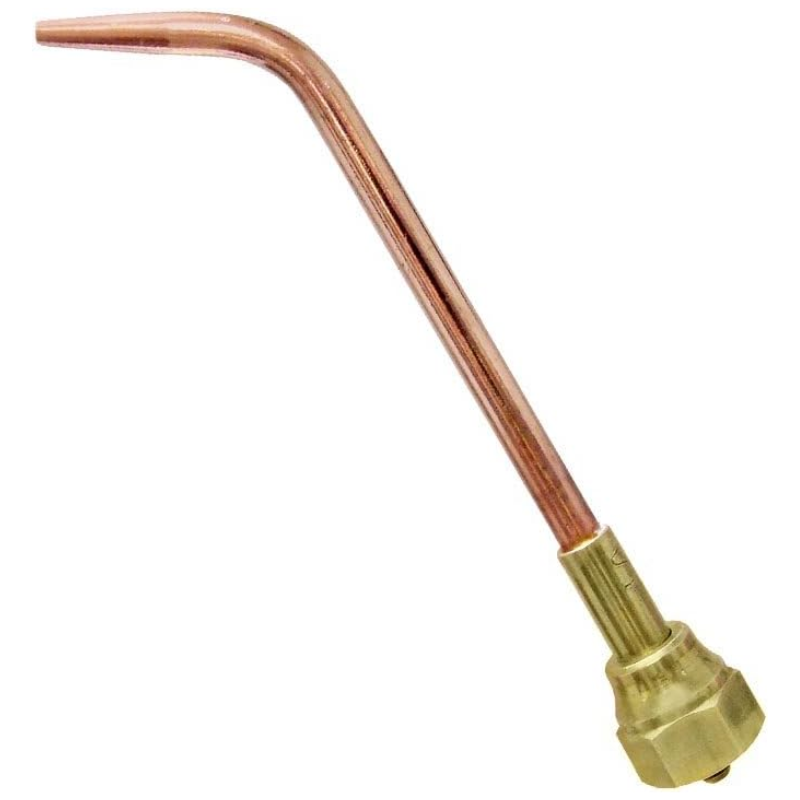

Uniweld Type17-0 weld/braze tip can be used with acetylene, propane, MAP//Pro, and natural gas. Capable of welding 5/64" of metal, and brazing 1/2" of copper. Tip elbow is copper, mixer and nut are brass. Has two O-Ring seals so tip nut only needs to be firmly hand tightened. Tip will fit either the 71 or WH550 welding handle.

-Proudly Made in the USA and 100% Flame Tested
-Can be used with acetylene, propane, MAP//Pro, and natural gas
-Capable of welding 5/64in of metal and brazing 1/2in of copper
-Fits the 71 handle or the WH550 handle
-Tip nut only requires hand tightening allowing for quick and easy changing of tips

Specifications
Part# TYPE17-0
Elbow/Mixer Thread Spec: 1/4”-27 (M,F)
Weld Metal Thickness: 1/32”-5/64”
Oxygen PSIG: 5
Acetylene PSIG: 5
Acetylene SCFH: 4
