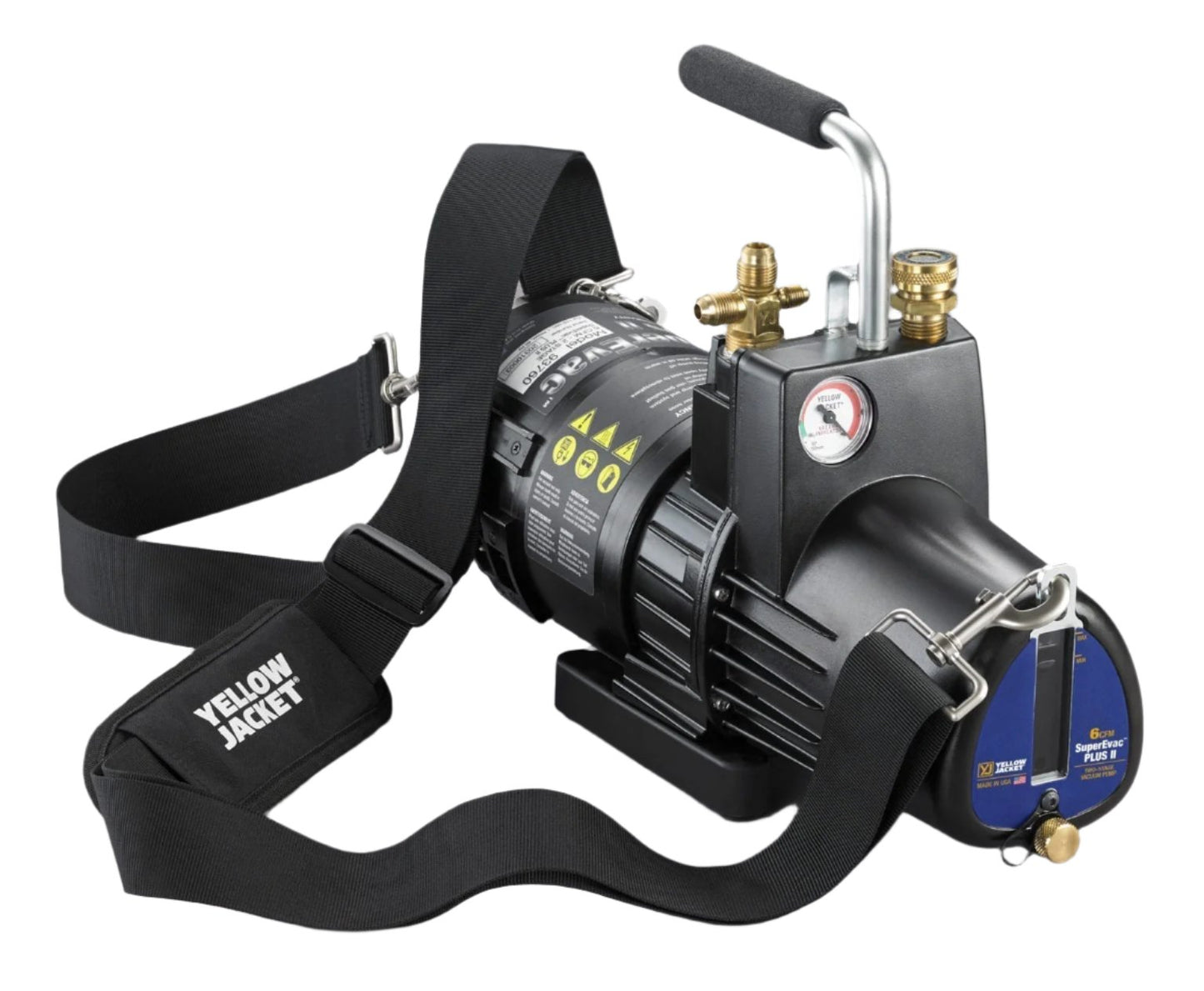

SuperEvac® PLUS II Vacuum Pump
READY EVERY TIME!
The Brushless DC (BLDC) Motor incorporated in the next generation YELLOW JACKET® SuperEvac® PLUS II Vacuum Pump provides key advantages over existing AC technology vacuum pumps. High torque and high efficiency define the ultimate performance in the most reliable vacuum pump. Able to function in extreme low voltage conditions and field rated to 15 microns, the SuperEvac® PLUS II is always ready. The easy-to-carry, lightweight design is available in 4, 6, 8 and 11 cfm models.
OVER 20% LIGHTER THAN MOST AC MOTOR VACUUM PUMPS
8.0 CFM Specifications
1/2″, 3/8″ and 1/4″ Male flare intake
28 oz. oil capacity
17.5″ L x 6″ W x 11.5″ H
26.8 lbs. (12.2 kg)
High Torque, High Efficiency, Brushless DC (BLDC) Motor
High Torque means power is always there on demand
High efficiency means less mechanical and electrical stress; and long life
Easily handles supply voltage variations; especially low voltage conditions
Starts and operates in extreme temperature conditions, especially low temperatures
Over 20% lighter than AC motor-driven pumps
No low battery condition – No Battery to let you down
Performance and Ergonomics
Convenient shoulder strap for easy carrying over long distances with built-in mount points
Small oil bath requires less oil
Built-in cooling fins to cool pump and increase performance
Oil suck-back valve
Elongated oil sight glass – easier to see oil level and condition
Tethered oil drain plug
Features & Benefits
Designed for use with A2L systems
Isolation valve for oil changes without losing vacuum in the system
Gas ballast valve keeps oil cleaner, longer during evacuation
Internal intake check valve to help prevent oil backup into the system and to maintain vacuum during a power failure
Intake filter screen keeps damaging particles from entering the pump
Heavy duty rotors and bearings
Built-in vacuum gauge
Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust – threaded to attach a garden hose for exhausting to a remote location.
Large brass oil drain for easy access to fast oil changes
Downward angled oil sump to remove contaminants usually trapped in other pump designs
Non-sparking switch for A2L compliance
Locking, low-profile IEC connector with 9’10” (3 meter) power cord to prevent accidental removal
Heavy duty steel handle
Lift hook for hoisting pump to rooftops
Two-year warranty
Made in USA
