The AAV3 Anemometer Air Velocity and Temperature Accessory offers several features and benefits to field technicians: Estimate CFM - Large vane covers most of register’s free area - Displays average measurement and real-time and more.

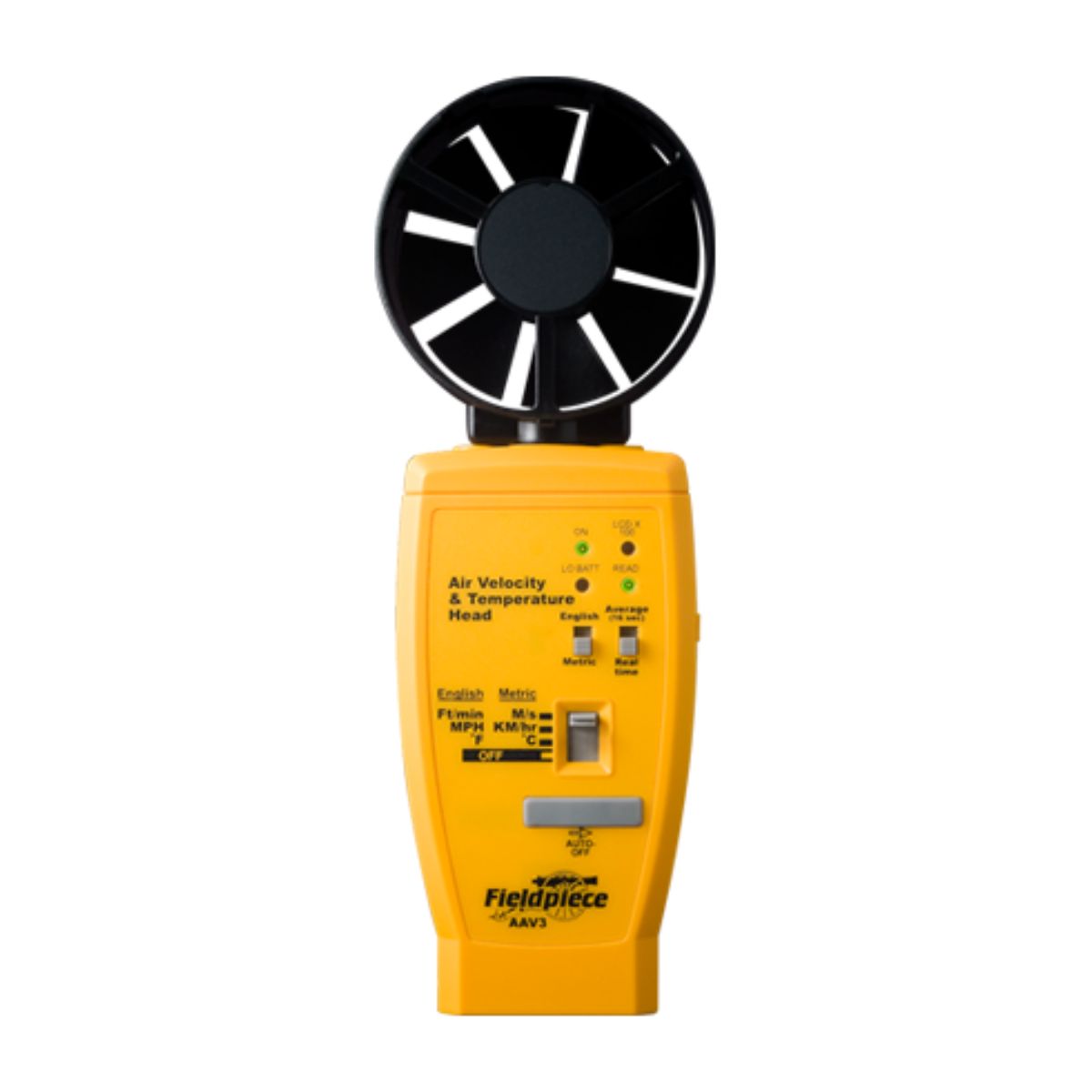

The AAV3 is an anemometer accessory head for use with our modular instruments that measures air velocity and temperature in English or Metric units: Ft/min, M/s, MPH, KM/hr, ºF (degrees Fahrenheit) or ºC (degrees Celsius). Multiply your air velocity by the register’s free area to estimate CFM or diagnose duct blockages and quickly check the airflow balance in a conditioned space. Use with our DL3 Data Logger to track airflow or temperature over time. Features average and real time testing modes.
The AAV3 Anemometer Air Velocity and Temperature Accessory offers several features and benefits to field technicians:
Works with any Fieldpiece expandable instrument or handle or any DMM with mVDC ranges and our detachable leads.
Measures air velocity and measures air temperature.
Measure in hard to reach areas using detachable test leads.
Display readings smoothly in average mode or switch to real-time measurement.
Low battery indicator.
Auto-power off after 10 minutes (may be disabled).
Range (wind velocity): 60-5900 Ft/min, 0.7-67.0 mph, 0.3-30.0 M/s, 1-108 KM/hr
Accuracy (wind velocity): ±3% + 1digit @73ºF ±5ºF (23°C±2°C), <95% relative humidity
Range (temperature): -20ºC to 60ºC, -4ºF to 140ºF
Accuracy (temperature):
±1ºF at 32ºF to 113ºF;
±2ºF at -4ºF to 32ºF, 113ºF to 140ºF
(±0.5ºC at 0ºC to 45ºC;
±1ºC at -20ºC to 0ºC, 45ºC to 60ºC)
Resolution: ±0.1ºF/C
Operating temperature: 32 to 120 ºF (0-49°C)
Operating relative humidity: <95%RH
Storage temperature: -4 to 140ºF (-20 to 60°C), 0 to 80% R.H. with battery removed from meter
Sensor type: Thermistor temperature sensor
Battery life: 200 hours typical. No measurable current draw when in “off” position
Low battery indication: Red LED
Battery: 9V
Auto off: Approx. 10 minutes
Includes:
Air Velocity and Temperature Accessory – AAV3
9V Alkaline Battery (installed)
Operator’s Manual
