GLASFLOSS

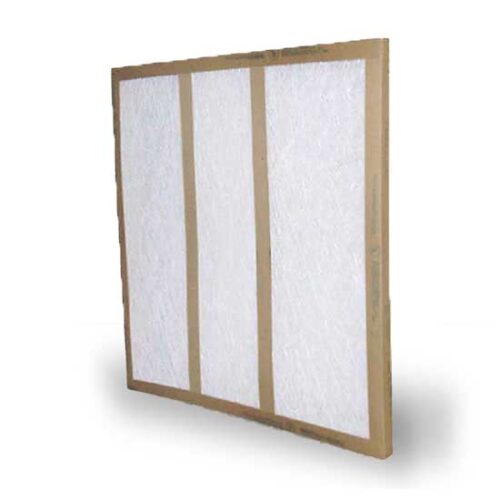

7-1/2" x 7-1/2" x 1" FIBERGLASS DOUBLE STRUT DISPOSABLE FILTER

7-1/2" x 7-1/2" x 1" FIBERGLASS DOUBLE STRUT DISPOSABLE FILTER

SKU: GDS7H7H1

PRODUCT TYPE: Air Filters

Expedited Shipping

Ver todos los detalles

Features & Specifications

Disposable Panel Filter
-Progressively Dense Heavy Duty Media
-Heavy-Duty One Piece Box Frame Construction
-Thermally Bonded

• The Glasfloss GDS disposable panel filter features an innovative, reinforced, “double strut” construction for excellent durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. In addition, the design allows for easier disposal, eliminates sharp edges for safer handling and reduces carton weight for lower shipping costs. The new GDS disposable panel filter is available in 1″ and 2″ depths in many standard sizes.


Fiberglass Double Strut Disposable Documents

• The Glasfloss GDS disposable filter shall be constructed of a heavy-duty, one piece craft-board frame. All corners shall be closed and sealed. The fiberglass filter media shall be coated with a non-toxic, non-flammable, odor free adhesive. The fiberglass media shall be constructed in a progressively dense fashion from air entering to air leaving side. The fiber-glass media shall have a skin backing on the air entering and the air leaving side. The media and reinforced strut retainers shall be glued and sealed inside a heavy-duty, craftboard frame. All filters shall be classified under U.L. std. 900.

• The Glasfloss PTA series disposable panel filter has set the standard for quality and durability. This rigidly constructed air filter maintains its integrity where others fall short. Always the highest quality, Glasfloss disposable panel filters have metal grids on both the air entry and air leaving sides.

MERV Rating - 5
Filter Type - Disposable
Filter Media - Fiberglass
Nominal Filter Size in Inches (W x L x H)
Nominal Filter Thickness in Inches - 1
Filter Rating (Microns) - 20% or less at Range 3 (3.0 to 10.0 microns)
Brand - Glasfloss
Composition - Heavy-Duty Fiberglass
Frame Type - Craftboard Channel
