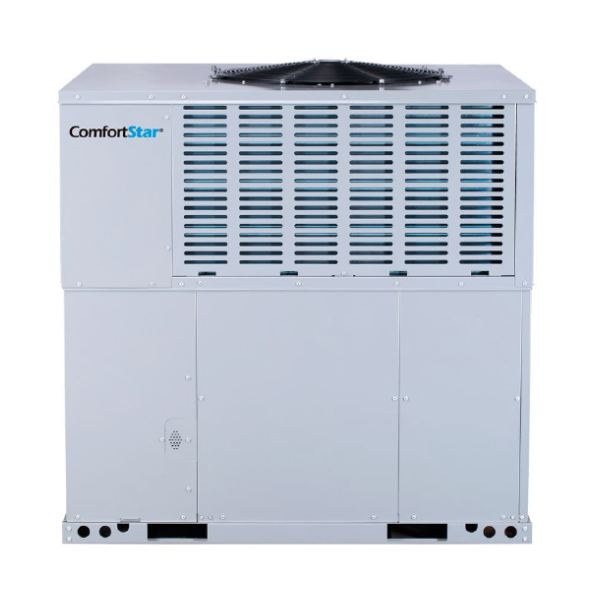

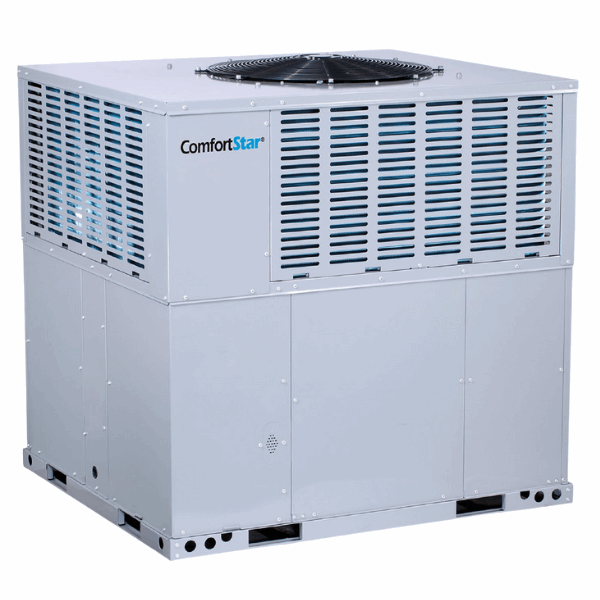

24K CPD PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

CDP

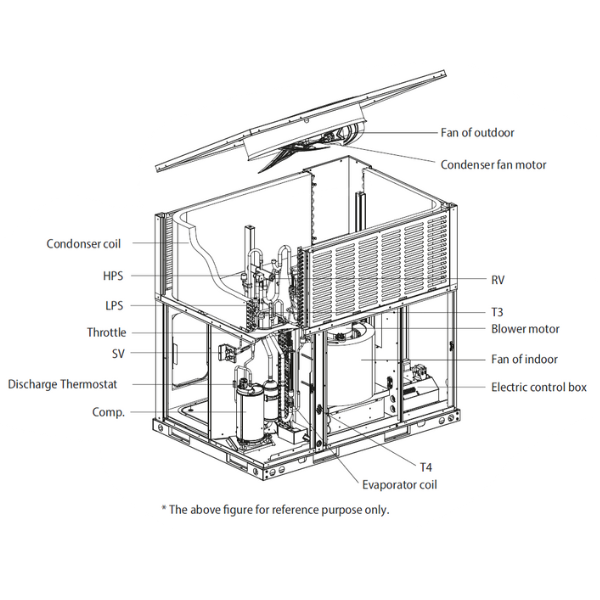

CDP DIAGRAM

24K CDP PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

24K CPD PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

24K CPD PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

10 Year Compressor Warranty

10 Year Parts Warranty

24K CDP PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

24K CDP PACKAGE UNIT - HORIZONTAL AND DOWNFLOW DISCHARGE - 13.4 SEER2

SKU: CDP24-15

PRODUCT TYPE: Package Units

Variantes de producto

Expedited Shipping

System Gross Weight: 418 (lbs.)

Cantidad

Product Catalog

Ver todos los detalles

Refrigerant Type: R410a

Unit Size - Inches (W x D x H): 35-1/16 x 50-11/16 x 46-13/16

Voltage: 208-230V

Air Flow - CFM (Hi / Mi / Lo): 880

Tonnage: 2

dB(A) Noise Level (Hi / Mi / Lo):

SEER2: 13.4

EER: 12

Operating Mode: Heating and Cooling

Heat Capacity (BTU): 22800

Cooling Capacity (BTU): 22800

Placement: Outdoor Packaged Unit

Outdoor Unit Net/Gross Weight (lbs.): 400/418

Features

• High quality heat exchanger.
• Fits universal curb, convenient installation and replacement.
• Horizontal or downflow application.
• Convenient access panels, one side service.
• Rotatable control box, slide out.
design for blower motor (Easy for service).
• AHRI/ETL Certificated.
