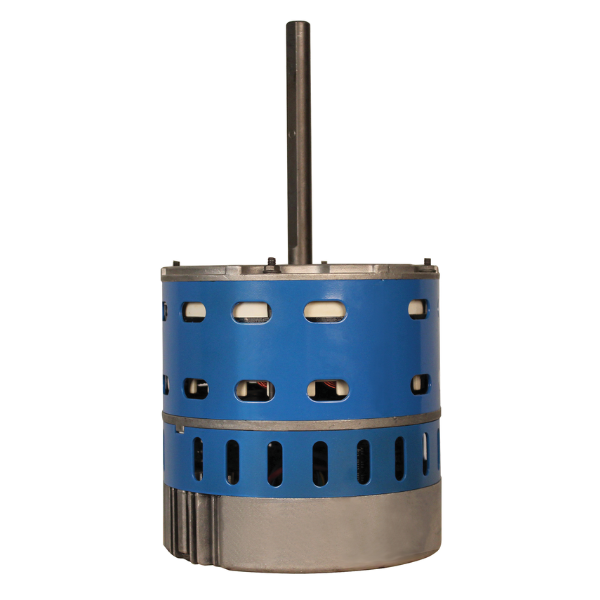

AZURE® 1/2-1HP FOR X13 120/240V SINGLE PHASE - BLUETOOTH CONTROL - BALL BEARING - DIRECT DRIVE BLOWER APPLICATIONS

The latest generation of Azure® ECM features integrated Bluetooth control for use with the Azure® ECM smartphone app. While not required for the installation of these motors, the app allows the installer to take full advantage of the ECM technology. While competitive aftermarket ECMs provide only 5 speed taps for setting airflow, the Bluetooth Azure® motors provide more than 50 speed selections and the ability to autosize to the ductwork all with a
keystroke or two in the app..

•Motor Type - ECM
•Enclosure - OAO
•H.P. (Max.) - 1
•Voltage - 120/240
•Multi-Rated H.P. - 1/2-1
•Speeds - 5
•Hz - 50/60
•Rotation - REV+FWD
•RPM Range - Constant Torque
•NEMA Frame Size - 48
•Phase - Single
•Standards - CUL
•FLA - 11.5/7.0
•Mount - Belly Band
•Bearing - Ball
•Shaft Length Inches - 4.94
•Shaft Dia Inches - 1/2
•Thermal Protection - REDUNDANT Electronic Control CIRCUITS
•Ambient Deg C - 55
•Ins. Class - B
•Capacitor Included - No
•Replaces - X13, Ensite, Endura
