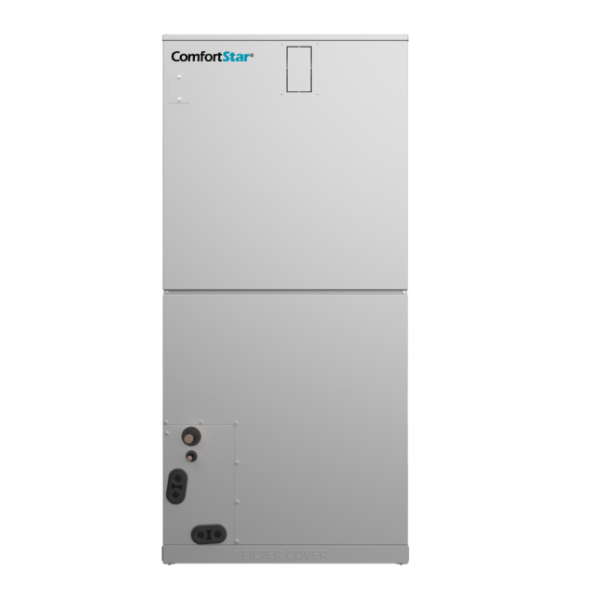

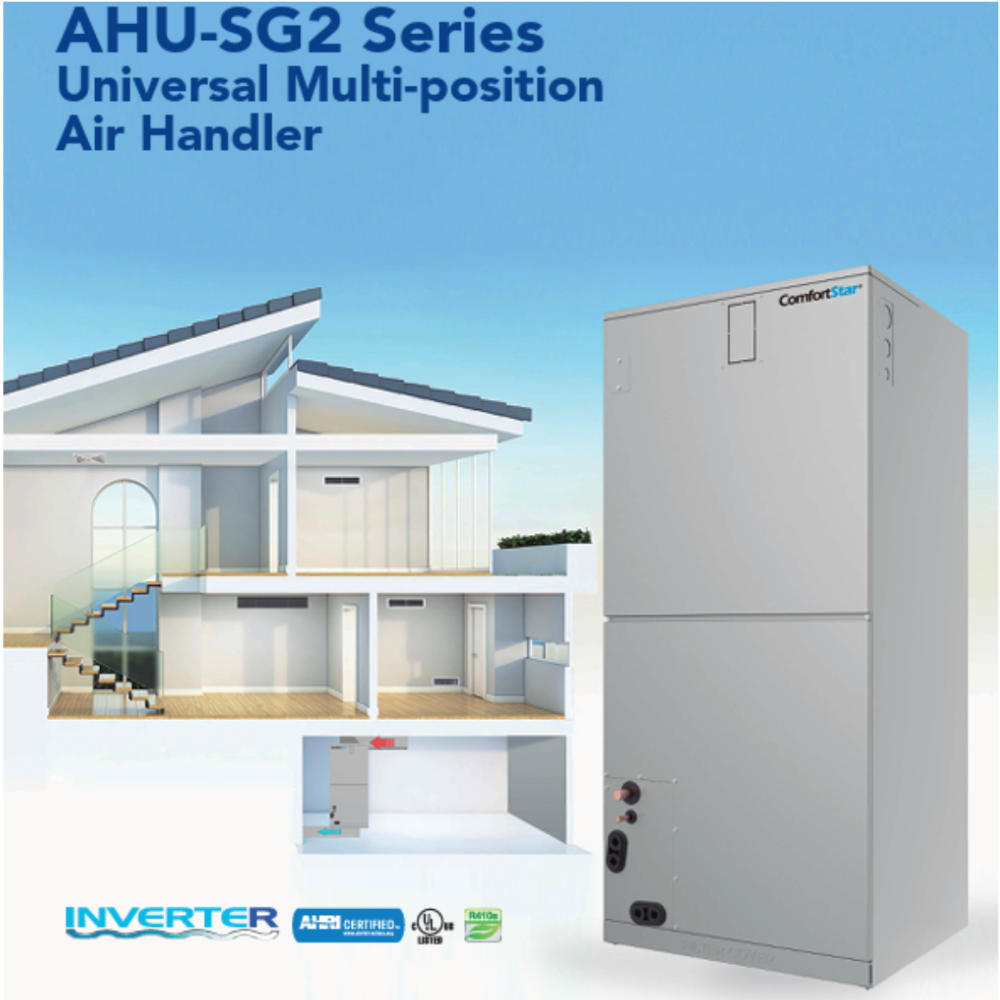

60K AHU-SG2 AIR HANDLER - MULTIPOSITION - 14.7 SEER2

60K AHU-SG2 AIR HANDLER - MULTIPOSITION - 14.7 SEER2

SKU: AHU60-SG2

PRODUCT TYPE: Air Handlers

Free Lift Gate

Expedited Shipping

System Gross Weight: 190.7 (lbs.)
View full details
Refrigerant Type: R410a
Unit Size - Inches (W x D x H): 21.02x24.49x52.99
Voltage: 208-230V
Air Flow - CFM (Hi / Mi / Lo): 1582.35/1358.82/1135.29
Tonnage: 4.75
dB(A) Noise Level (Hi / Mi / Lo): 52.5/49/44
SEER2: 14.7
EER: 8.8
Heat Capacity (BTU): 60000
Cooling Capacity (BTU): 57000
Placement: Indoor Air Handler Unit
Indoor Unit Net/Gross Weight (lbs.): 162.70/190.70

Features

✔ Multi Position Airflow - (capable of upflow, downflow, horizontal left, or horizontal right configurations. )
✔ Field installed heater Kits from 5 to 25 kw.
✔ Aluminum tubes and fins.
✔ Quite due to inverter and DC motor.
✔ EEV Precise control.
✔ Consistent Room Temperature.
✔ Automatic Airflow Adjustment.
✔ Easy Fault Code Checking.
✔ Easy Maintenance.
✔ Nitrogen Charge and Leakage Check Valve.
✔ Compatible and keep your existing line, wire and thermostat.
✔ Compatible with Comfortstar wireless remote controller, programmable wired controller, central controller, Wi-Fi controller, Remote On/Off.
